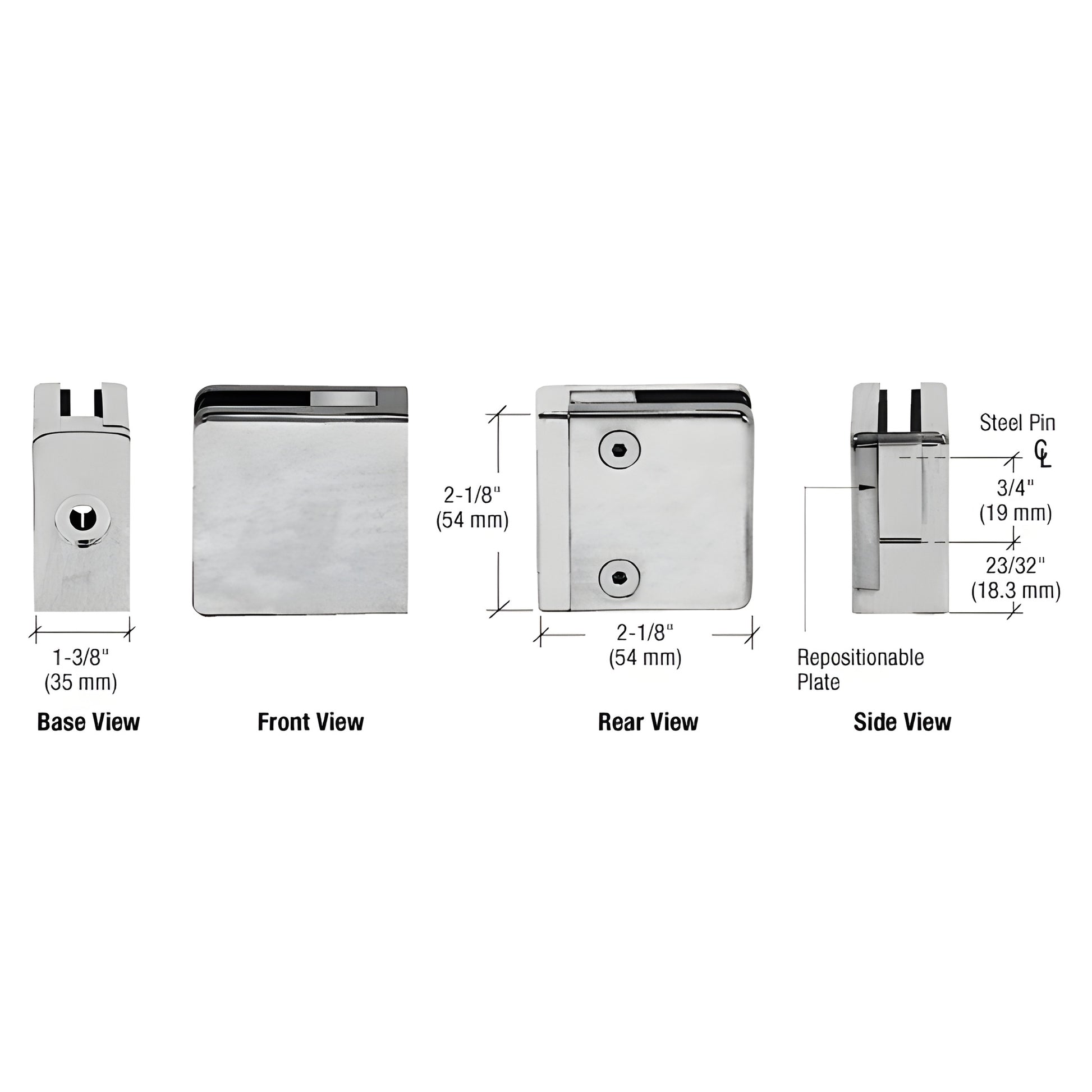

CRL Satin Chrome Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate

Product Details

• Repositionable Plate for Use at Right or Left Corner of Glass
• For Use with Square Tubing or Other Flat Surfaces
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

This CRL Z-Series Square Type Flat Base Glass Clamp with Repositionable Plate is designed to be used on glass thickness of 3/8" or 1/2" (10 or 12 mm). The flat base allows for installation onto square tubing or other flat surfaces. Material is constructed of zinc casting.

SPECIFICATIONS:

Glass Thickness: 3/8" or 1/2" (10 or 12 mm)

For Use With: Flat Surfaces

Material: Zinc Casting

Fabrication:

For 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.

For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.

Includes: Repositionable Plate (ZL Series only)

Replacement Hardware: CRL ZCS5X15SS for Replacement Screws & CRL ZL38SG for Replacement gaskets
