CRL 180 Degree Satin Nickel Glass Clamp for Shower Door

• For 5/16" to 1/2" (8 to 12 mm) thick monolithic tempered glass
• Secures fixed panels and transoms in frameless shower enclosures
• Solid brass construction with matching finishes for shower door hardware
• Offers an all-glass appearance as a clean alternative to U-channel
• Glass fabrication required to accommodate clamps or notch around screw stud

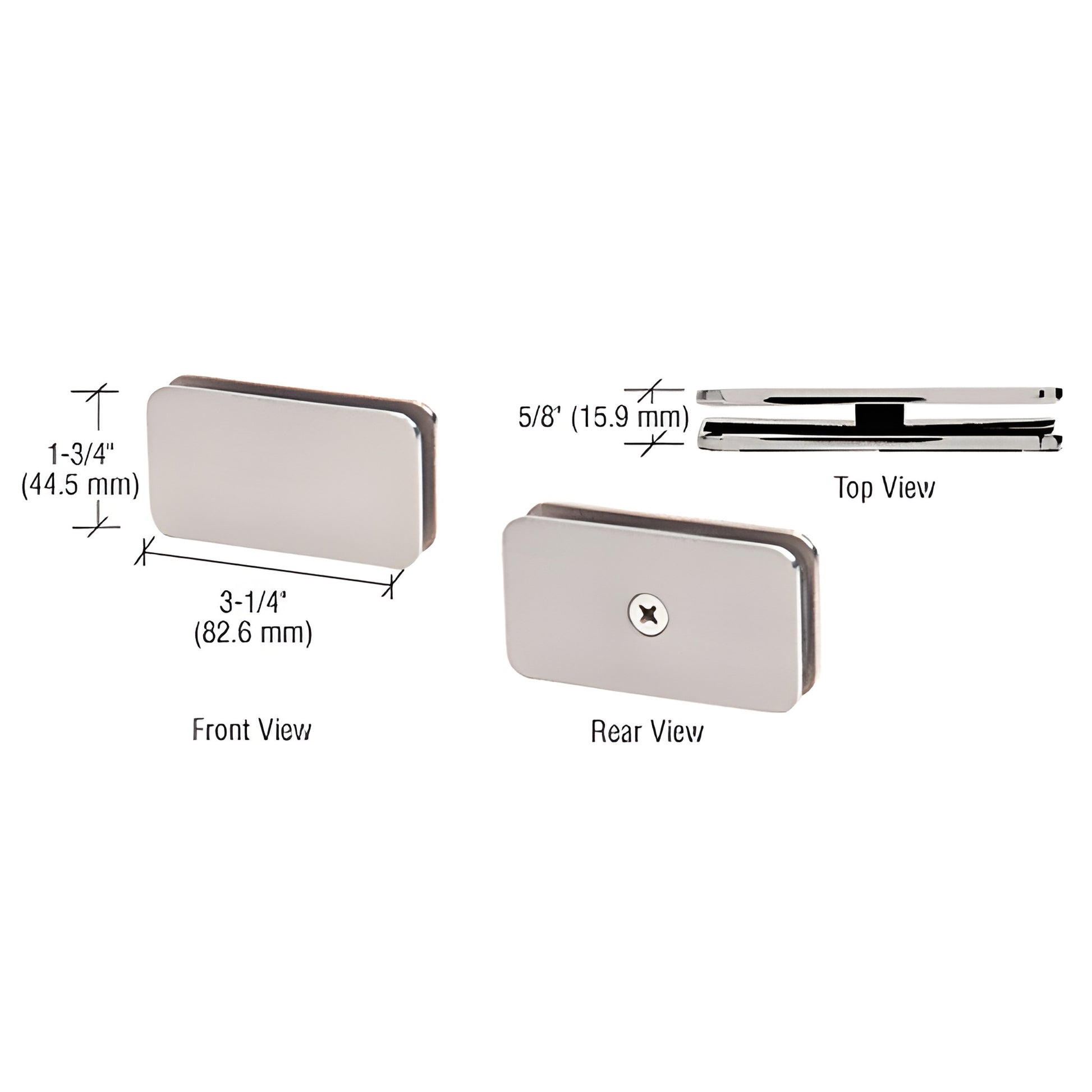

CRL Standard 180° Glass Clamp (SKU: GCB180SN) — solid brass 180 degree glass clamps engineered for fixed inline and transom panel installations in frameless shower enclosures. These traditional clamps preserve a contemporary, all-glass look while providing secure mounting where U-channel is not desired.

All clamps include one set of clear gaskets and appropriate mounting screws. Extra clear gaskets (Cat. No. UCG77) are available separately when required for 5/16" (8 mm) glass.

SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Shown at top of page
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Fabrication Required: Stud fits between panels with 7/16" (11 mm) gap; or notch glass around screw stud for a tighter gap
Includes: One set of clear gaskets and mounting screws
NOTE: An additional set of gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass

Why choose these clamps: Solid brass durability, finishes that coordinate with shower door hinges, and a minimalist appearance that enhances frameless shower designs.
