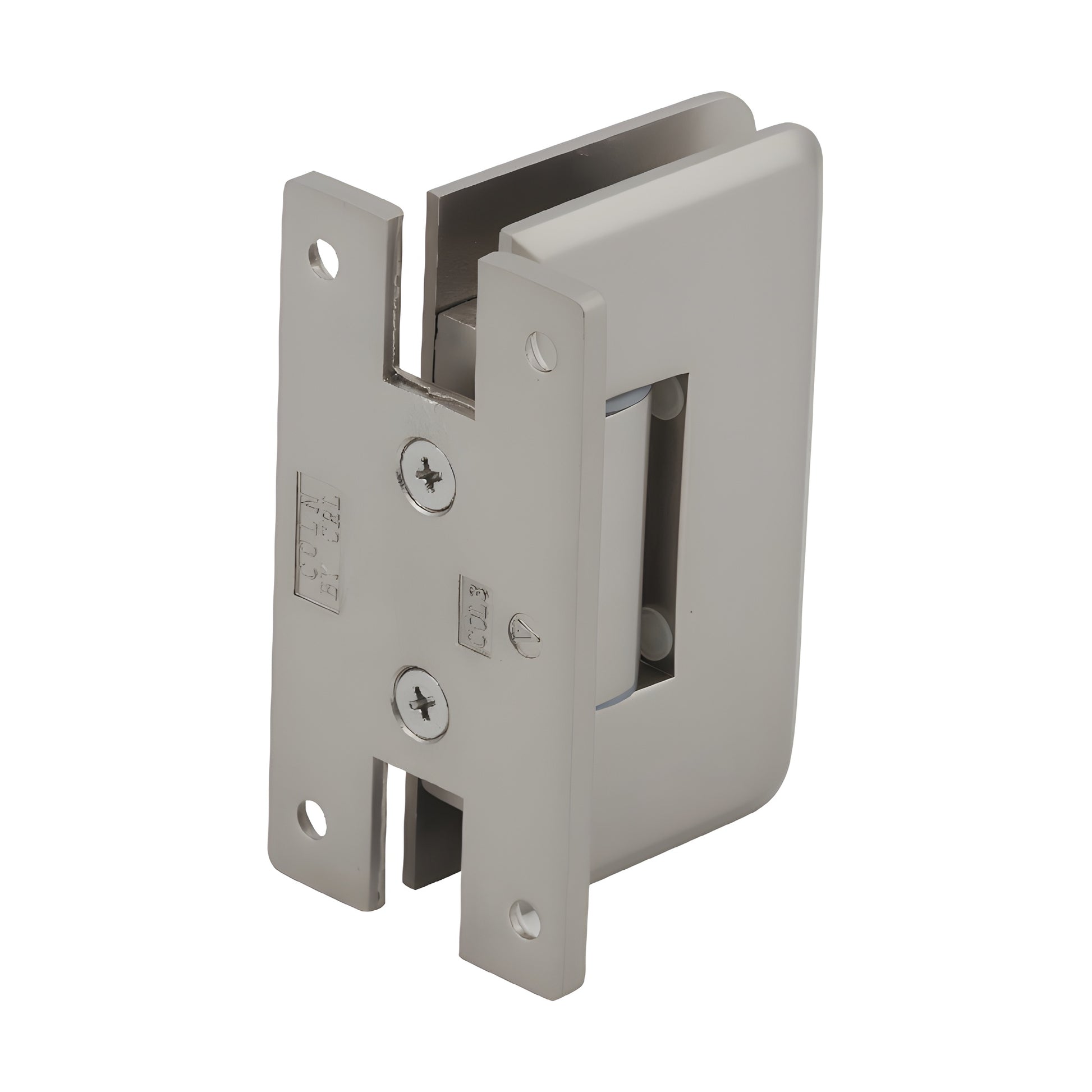

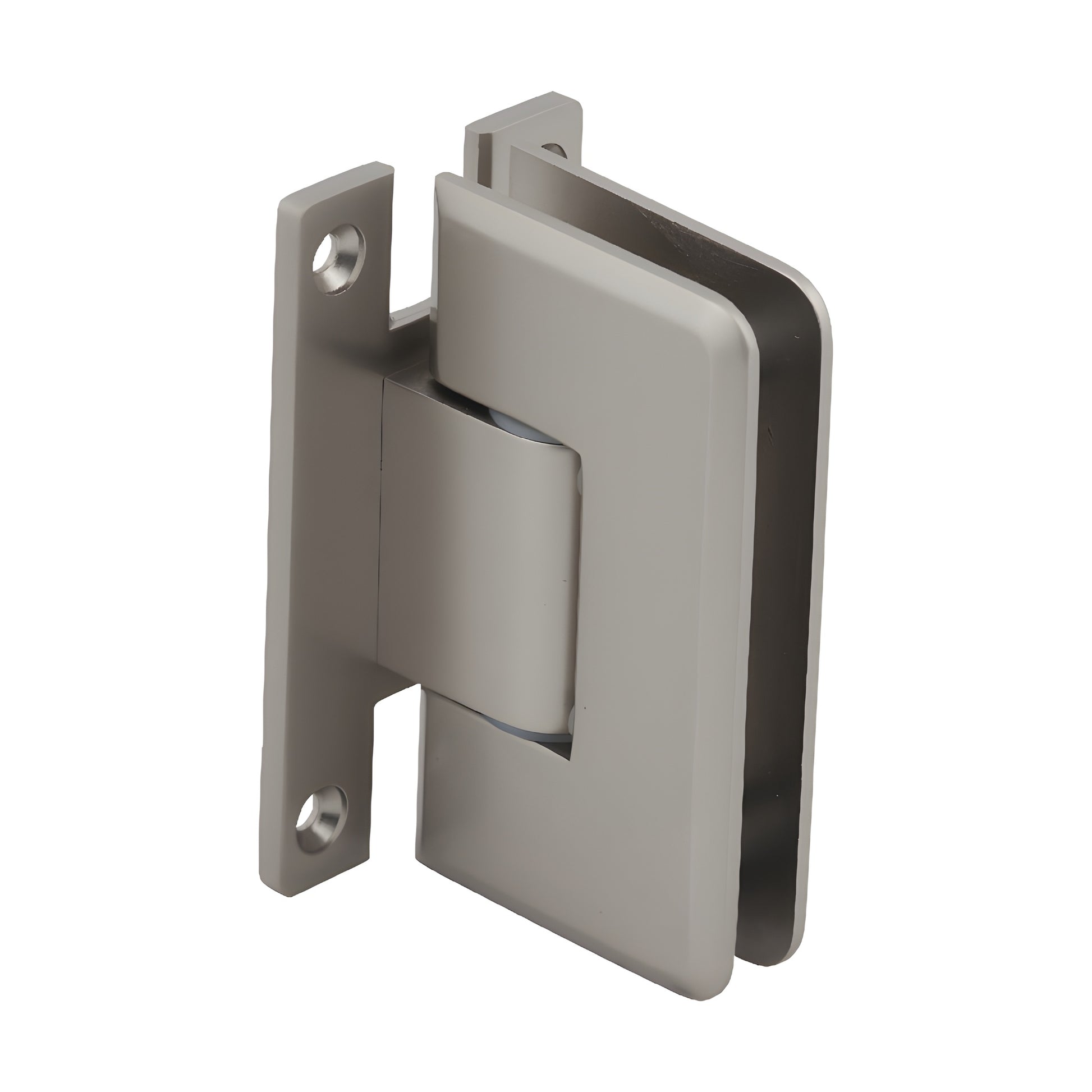

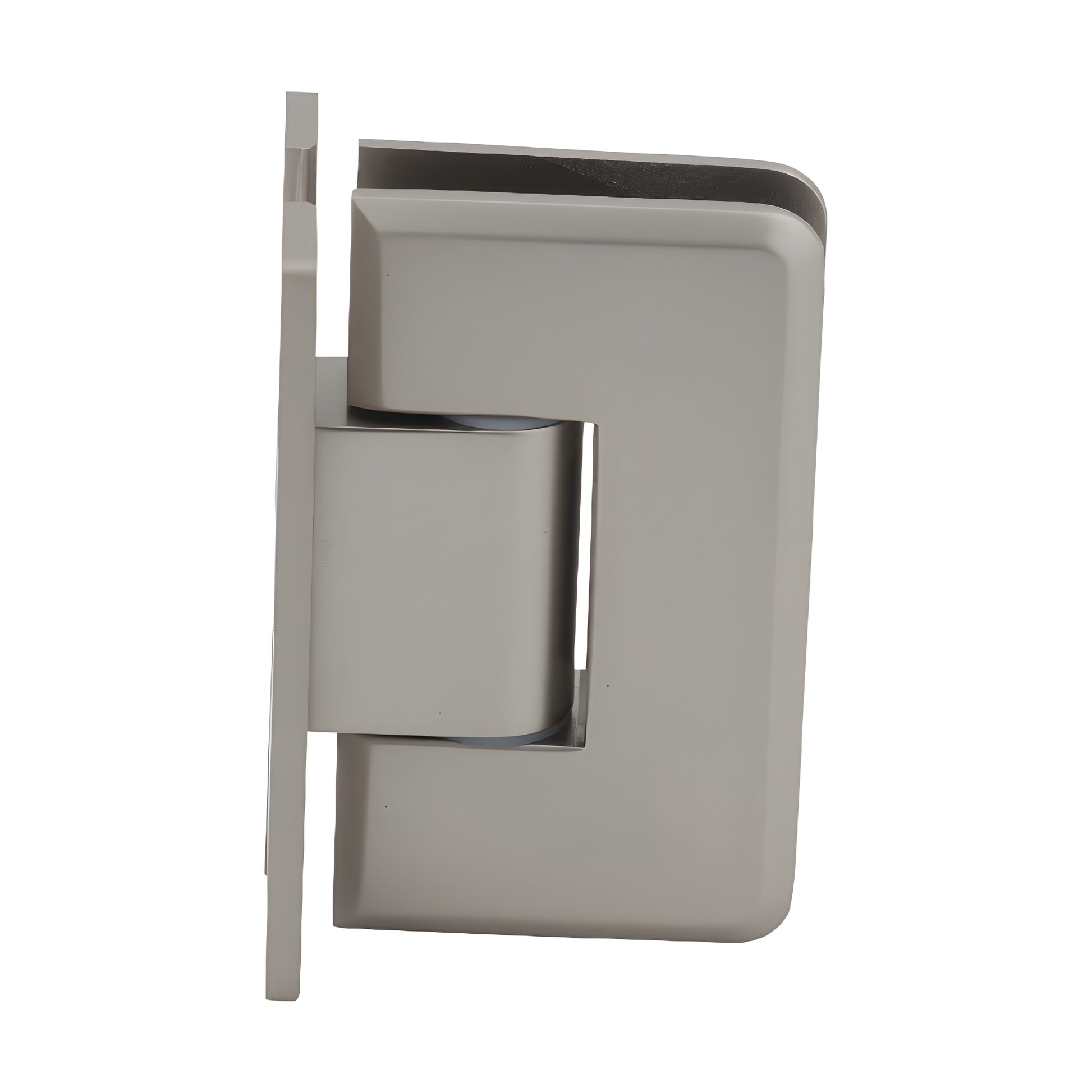

CRL Cologne 337 Satin Nickel Adjustable Wall-Mount H-Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

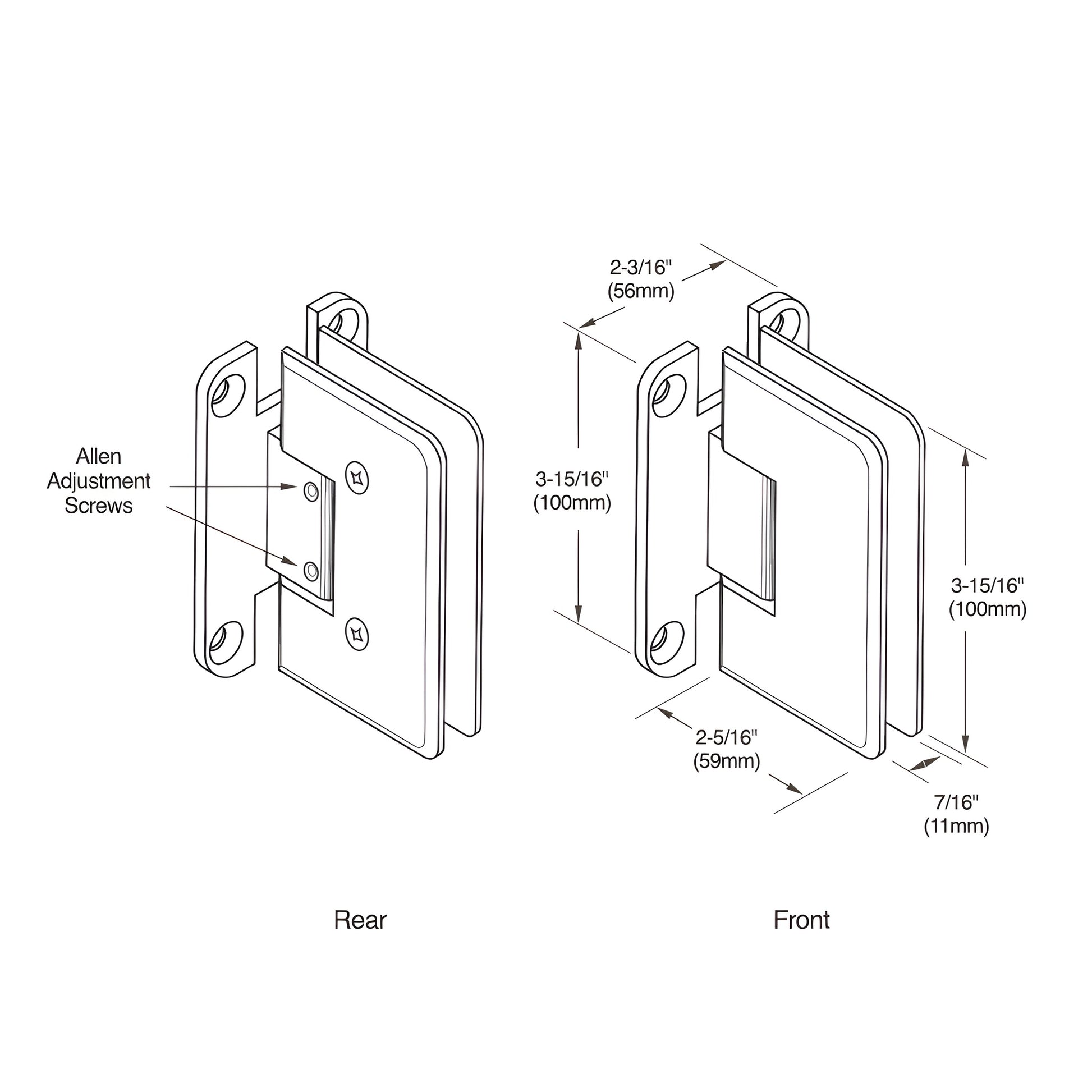

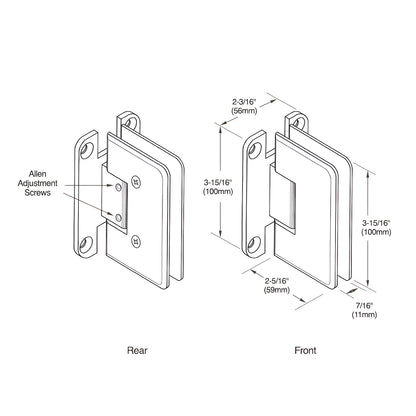

CRL Adjustable Cologne Series—an upgraded Cologne hinge engineered for frameless glass shower doors and commercial/hotel applications. The hinge is fully adjustable after installation so you can set the door angle (up to 90°) without removing the door. Loosen the Allen set screws, swing the door to the desired closed position and re-tighten; the hinge self-centers at that angle. The door can swing 90° inward and 90° outward (note: adjusting from factory position reduces swing in that direction). For outward-pulling doors using a clear door jamb, you can set the hinge to close 5° inside the shower for a snug jamb seal.

Performance:

Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid Brass — durable, corrosion-resistant for wet environments
Hinge Swings: 90° In and 90° Out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request through CRL Technical Sales.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
