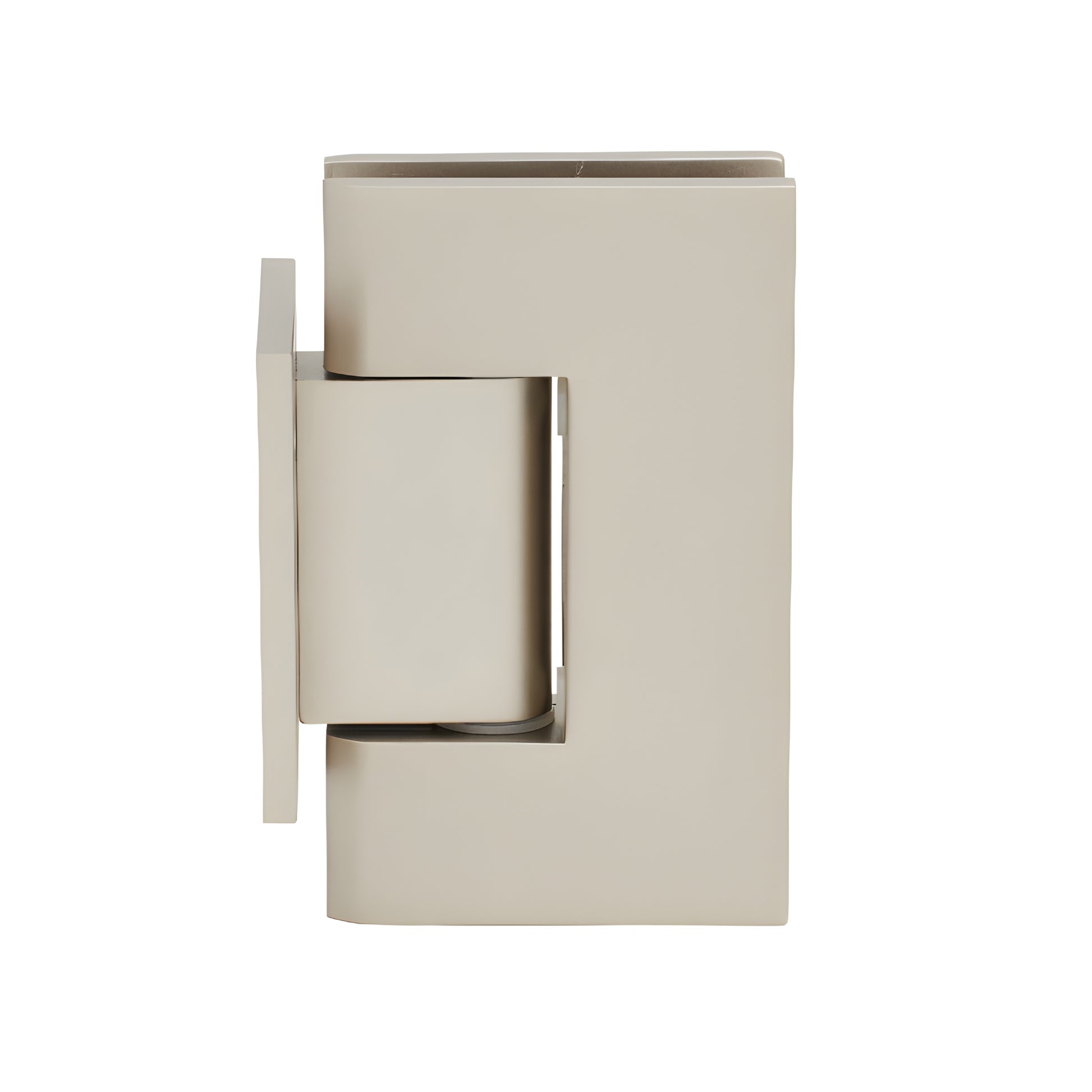

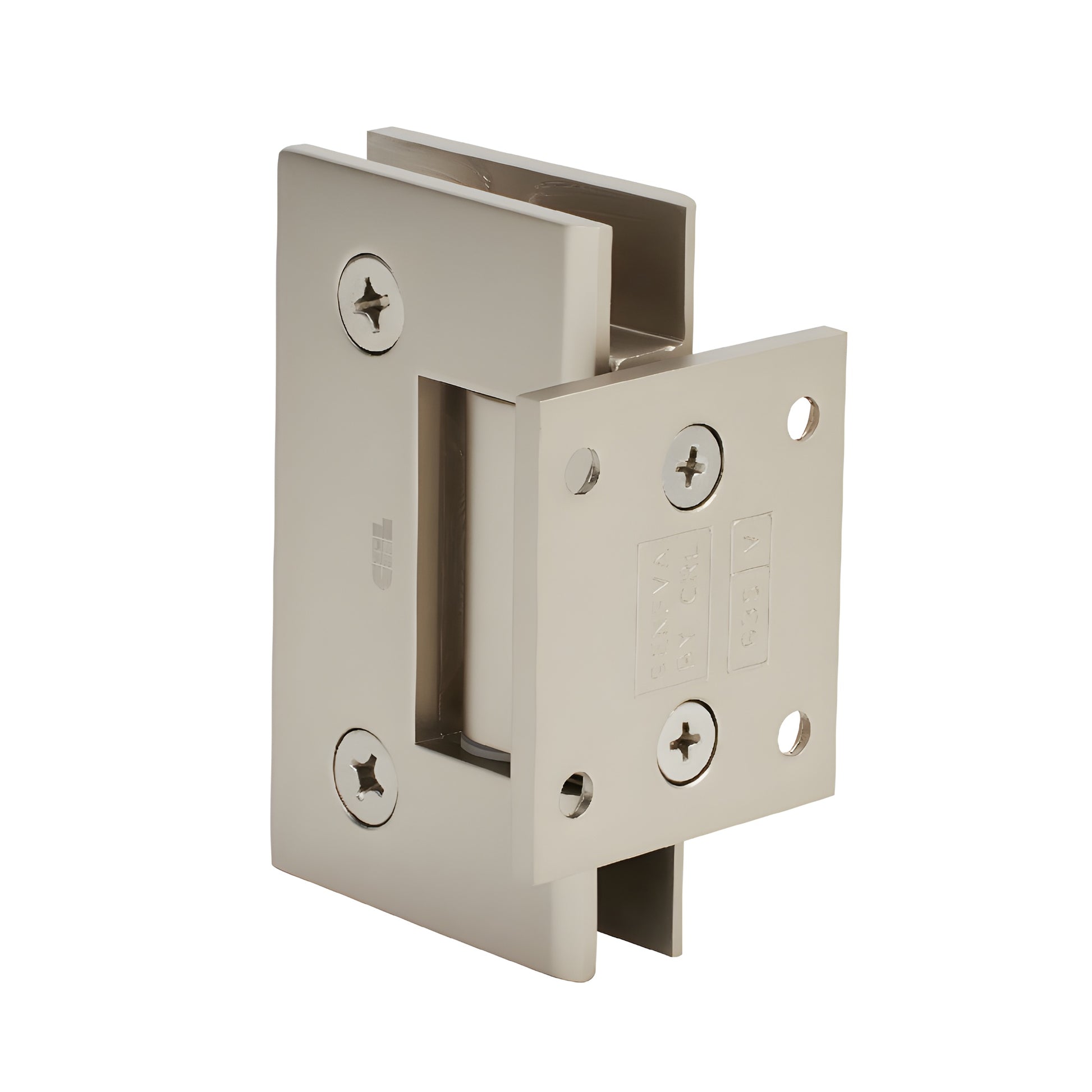

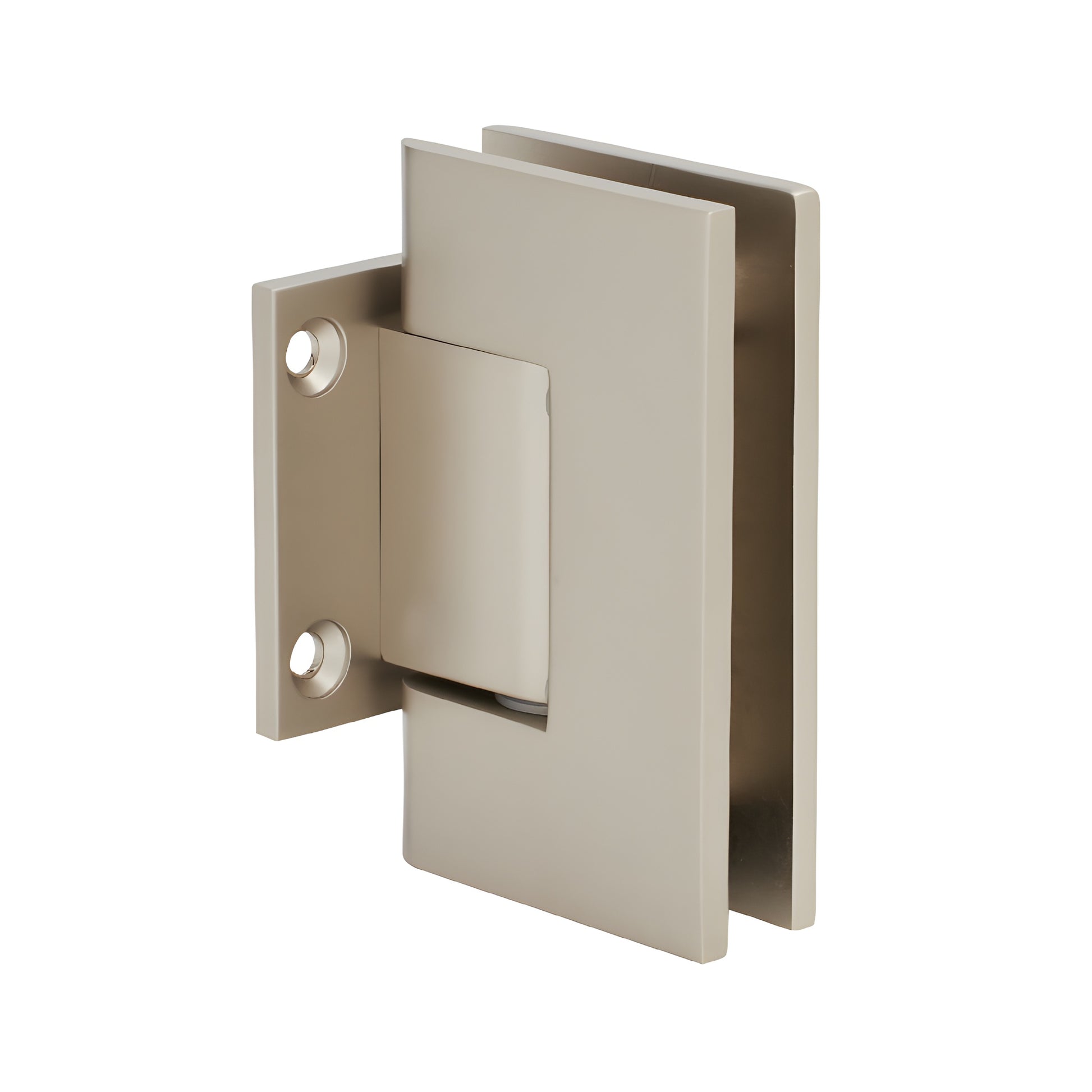

CRL Geneva 074 Satin Nickel Wall-Mount Short Back-Plate Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several finishes
• Three-year warranty
• Wall-mount short back plate standard model
• For use with monolithic tempered glass

CRL Geneva Series professional shower door hinges (SKU: GEN074SN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Choose from six styles—three wall-mount and three glass-to-glass—to match custom shower enclosures. Geneva Hinges are self-centering, include a reversible 5° pivot pin for tighter closure, and are made of solid brass with stainless steel pins and springs for long-lasting corrosion resistance.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° (standard) and 85° (5° tighter closure). Pins are rotated (not flipped) to change the active angle. Offset models are preset to 85°.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) are available for off-angle installations up to 45°. Contact Technical Sales Shower Door Department for assistance—using a custom pin may affect glass sizes and enclosure aesthetics.

Load capacity: two hinges hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm). Three-hinge installations hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard 0° factory setting or 5° pre-set for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request. Contact Technical Sales Shower Door Division for custom options.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—cut-out dimensions may differ from other brands.
