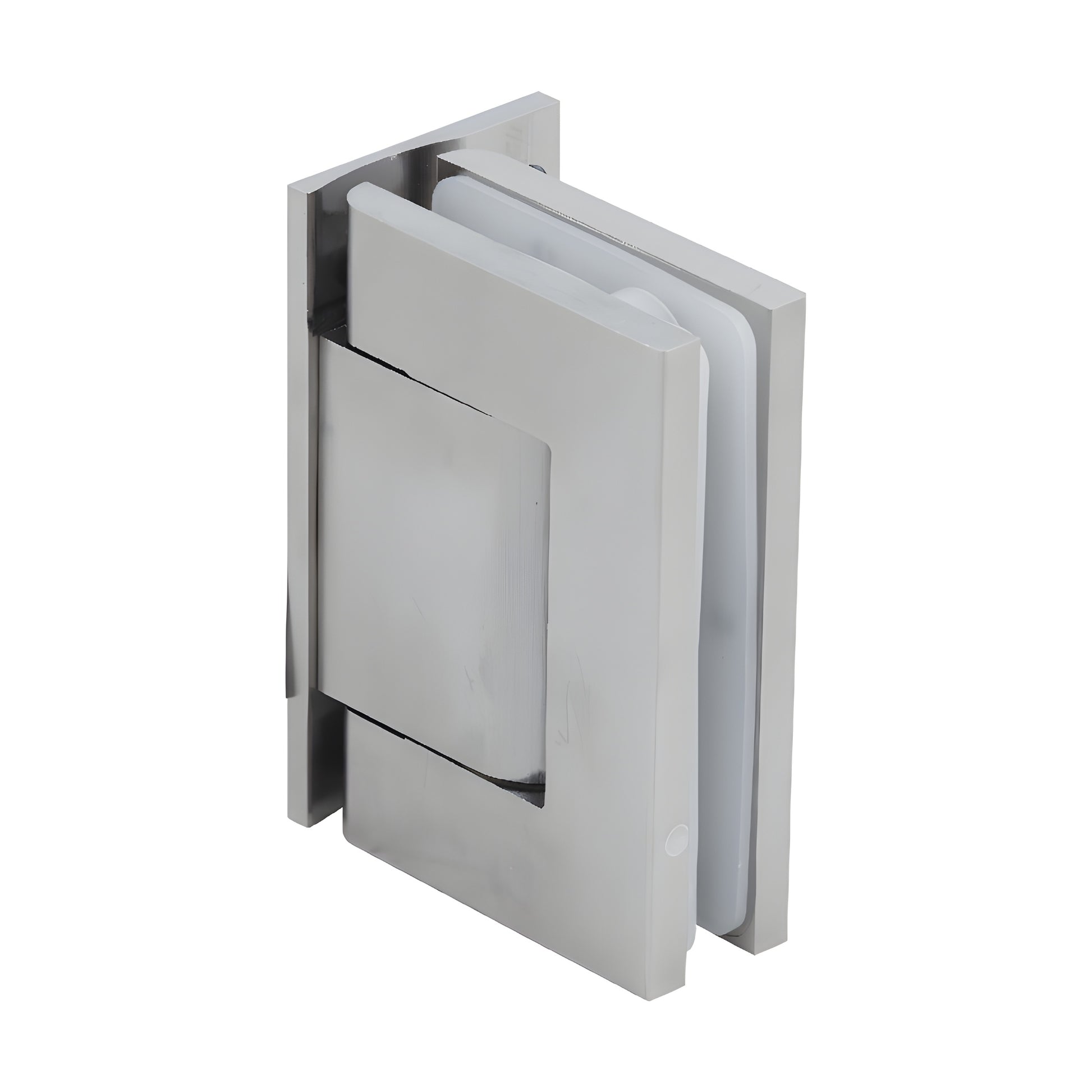

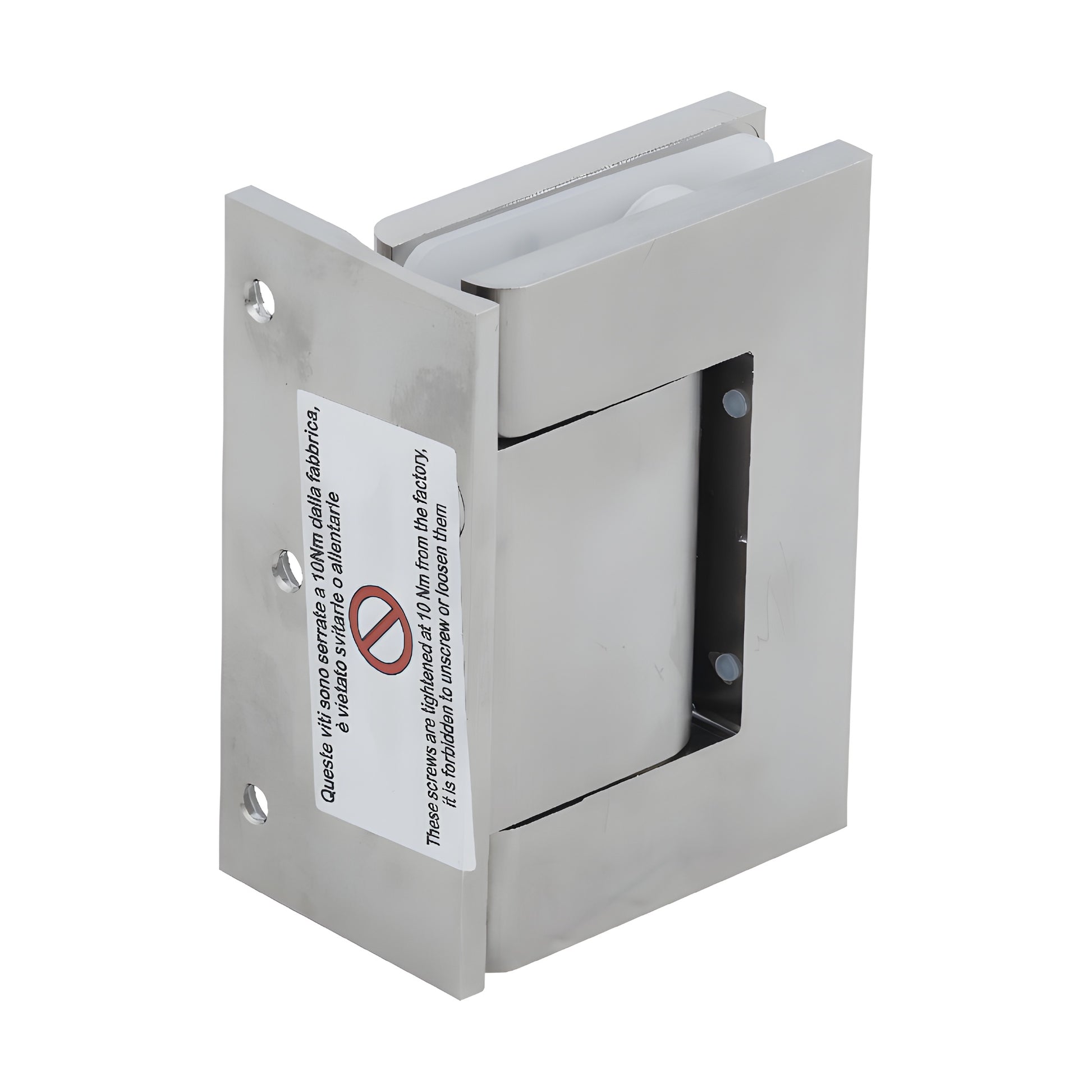

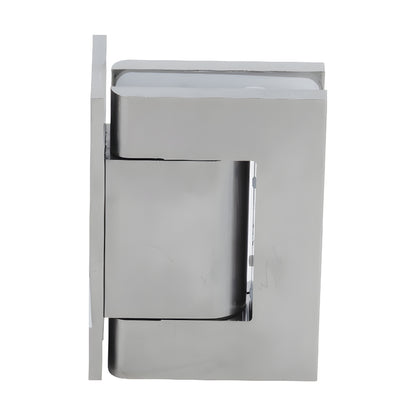

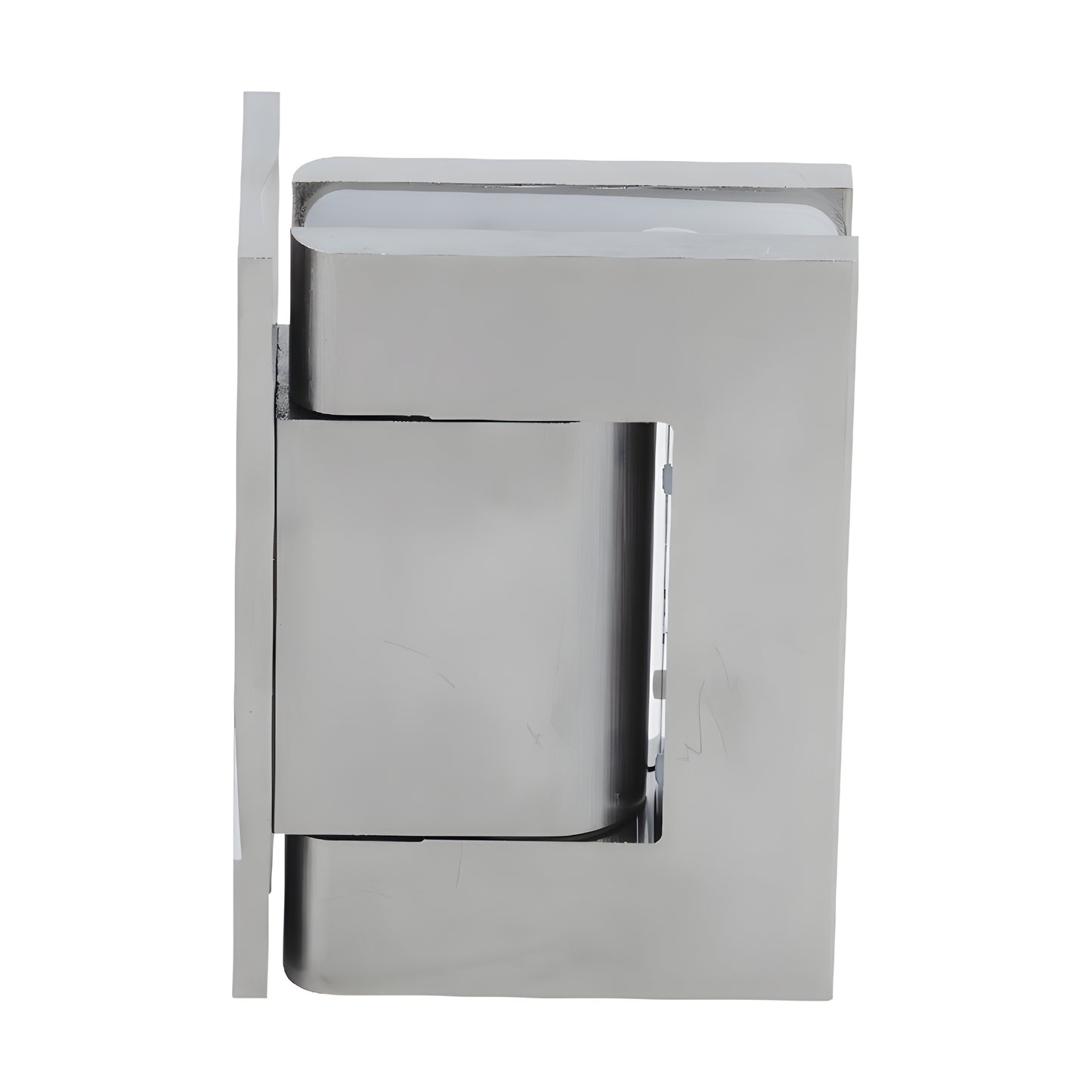

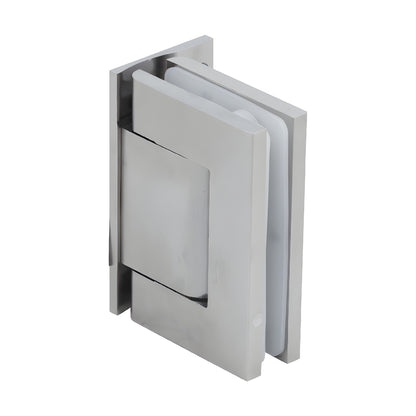

CRL Satin Nickel Vernon Oil Offset Wall-Mount Hold-Open Door Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body — three finishes: Brite Chrome, Brushed Satin, Satin Anodized
• Adjustable closing speed with control valve
• Alternative to floor closers and patch fittings — ideal for retrofit all‑glass doors
• Designed for interior doors in humid, high‑temperature environments (steam rooms, Turkish baths, showers)

CRL Oil Dynamic Offset Back Plate Wall Mount Hinge (SKU: H8011BTSN) swings a full 90° in and out with positive stops at 0°, +90° and −90°. Adjustable closing speed and ambidextrous operation make it a reliable self‑closing hinge for glass shower doors and other interior wet‑area applications. Two hinges support doors up to 39" (1 m) wide and a combined maximum weight of 220 lbs. (100 kg). Rated for high temperatures up to 212°F (100°C).

The Oil Dynamic Hinge blends mechanical hinge durability with hydraulic closing control, eliminating the need for floor‑mounted or overhead closers. This lets you install an all‑glass self‑closing door without extensive retrofitting. Tested to over 1 million cycles for long service life.

Install notes: use no more than two hinges per door. Oil Dynamic is ambidextrous and includes a control valve to set the desired closing speed. Not for exterior or outdoor use.

SPECIFICATIONS:

• Glass thickness range: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Hinge swing: 90° inwards and outwards
• Closing type: Automatic closing from 0° to 80°
• Special features: Holds open at 90°; adjustable closing speed (no hold‑open models except H8060BT)
• Cut‑out required
• Includes: Snap‑in molded gaskets for 3/8" (10 mm) and 1/2" (12 mm) glass; hex screws
• Maximum capacities using two hinges: Door width 39" (1 m); door weight 220 lbs. (100 kg)

NOTE: Do not use more than two hinges on one door. If using for other than intended purposes, obtain approval from CRL Technical Sales. Use only the template included; cut‑out dimensions may differ from other brands.

Product Warning:

Do not use more than two hinges on one door. For alternate applications or custom installations, contact CRL Technical Sales for approval. Use only the included template; incorrect cut‑outs can affect performance.
