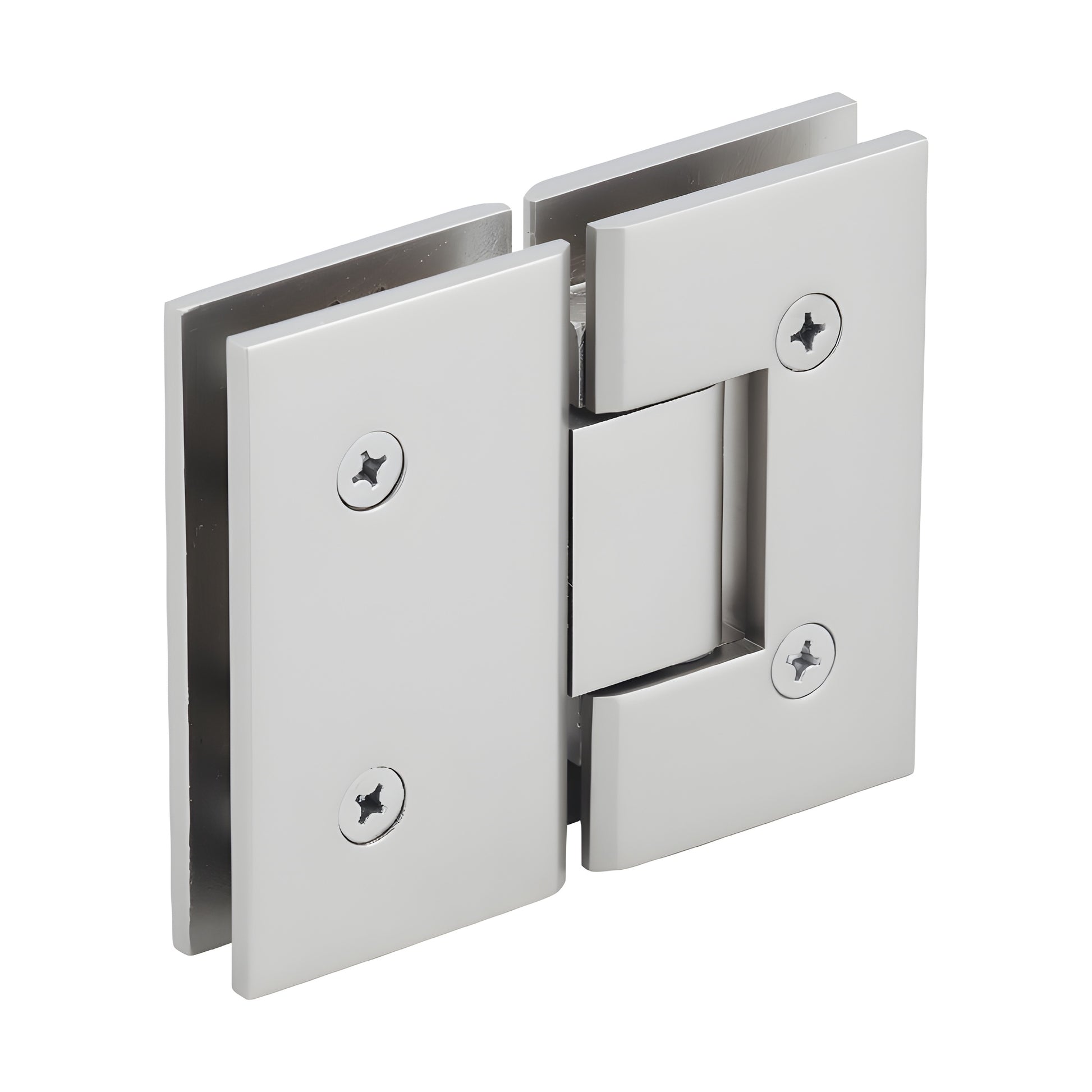

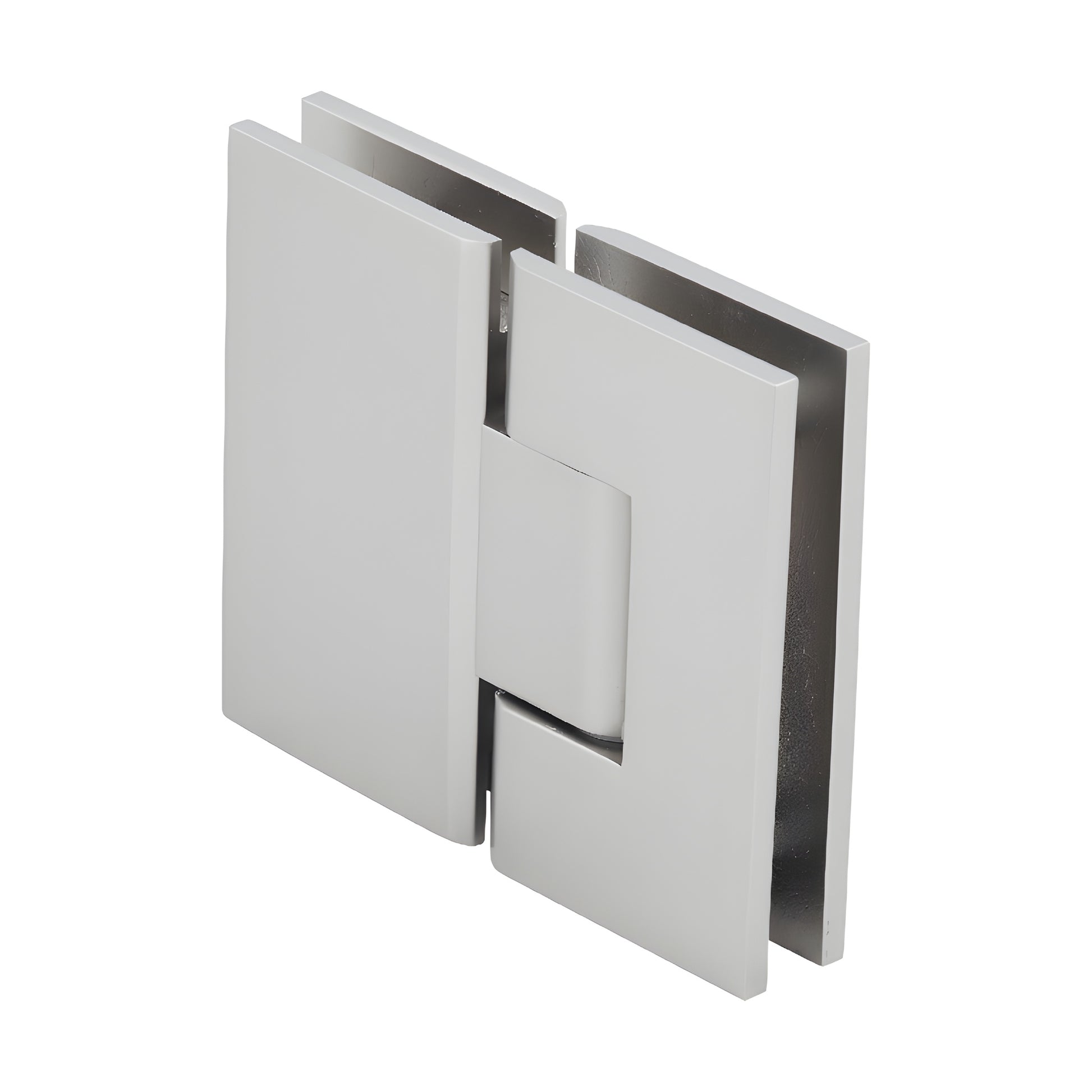

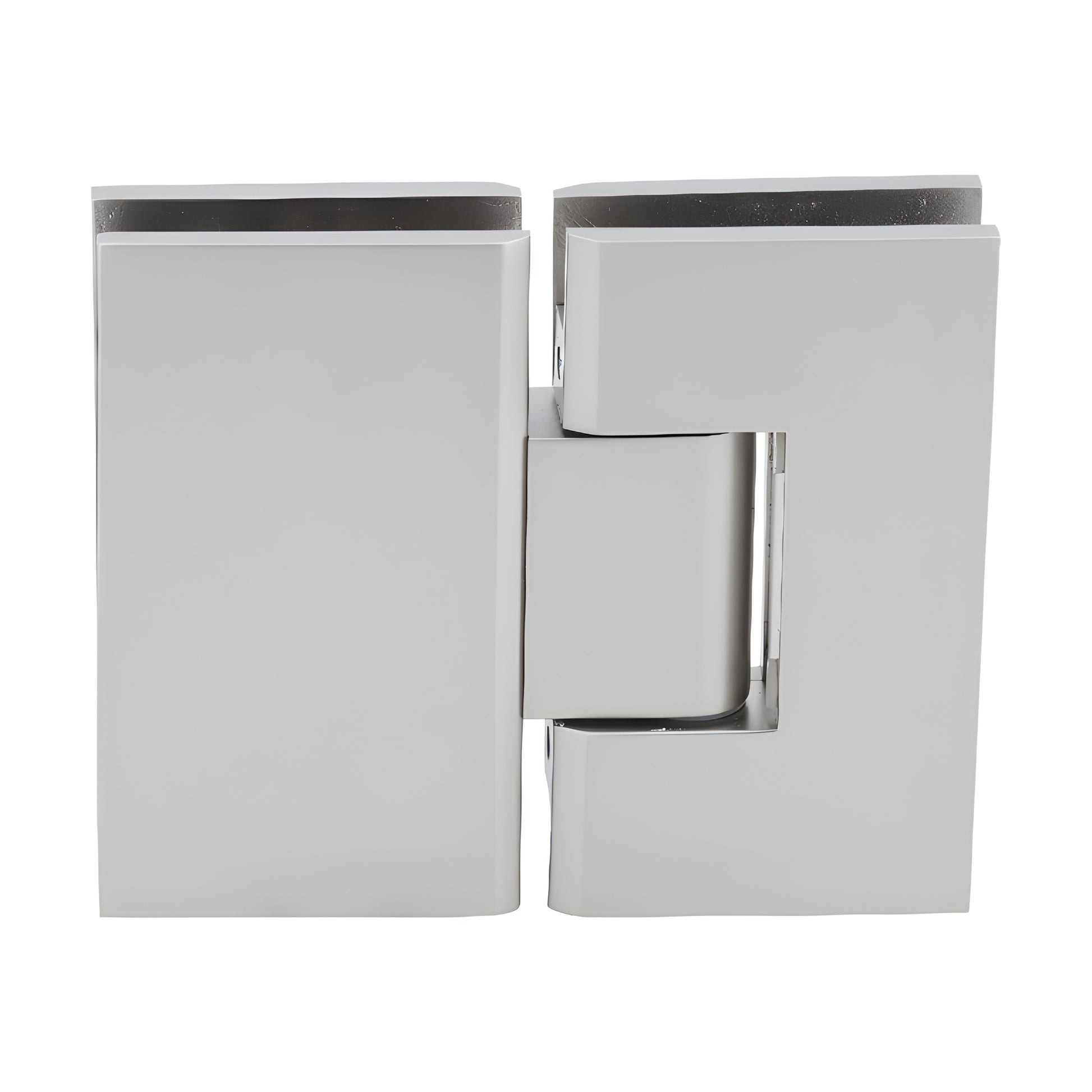

CRL Vienna 180° Satin Nickel Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes on request)
• 3 Year Warranty
• 180° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E180SN) are heavy-duty glass shower door hinges engineered for wider, heavier frameless shower doors that standard hinges can’t support. Two internal steel locating pins provide mounting flexibility: leave pins in for CRL "mouse-ears" cut-outs, or remove pins to fit CRL rectangular/square-cornered cut-outs and, in some cases, compatible competitive cut-outs. These 180-degree glass-to-glass hinges are ideal for glass shower doors requiring robust support and reliable alignment.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Rotate the pin (do not flip) to activate the 85° side for a 5° tighter closure into the shower interior. Pre-set models arrive factory-set to 85°.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment does not achieve the desired door closing position.

Load Capacity & Hinge Count:

• Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg); maximum door width 36" (914 mm)
• Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg); maximum door width 36" (914 mm)

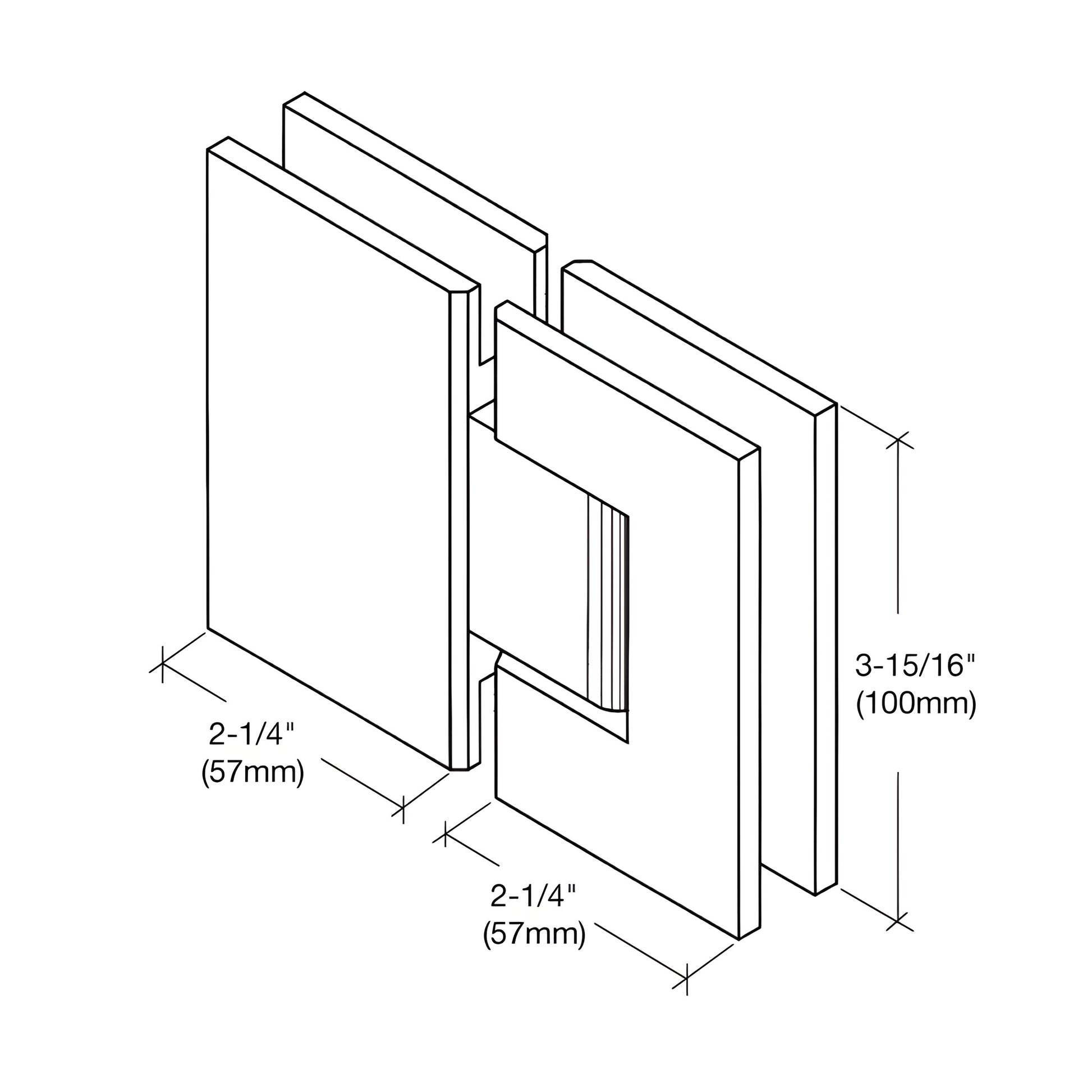

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and long service life
Hinge Swings: 90° in and 90° out (180° total)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092, which requires cut-out for door and two holes for fixed panel — use CRL template only
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request. Contact CRL Technical Sales — Shower Door Department for finish options and custom pivot pins.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower
