CRL Z-Series Satin Stainless Steel Square Shower Glass Clamp 3/8in

• May be used on wood or metal radius tubing
• For 3/8" (10 mm) glass
• Designed for partitions, mezzanines, wind breaks, railings and other commercial applications
• Use monolithic tempered glass; rubber gaskets included
• All styles include a steel pin for optional use through a hole in the glass to prevent slippage (1/2" / 12 mm notch required)
• Custom painted finishes available upon request

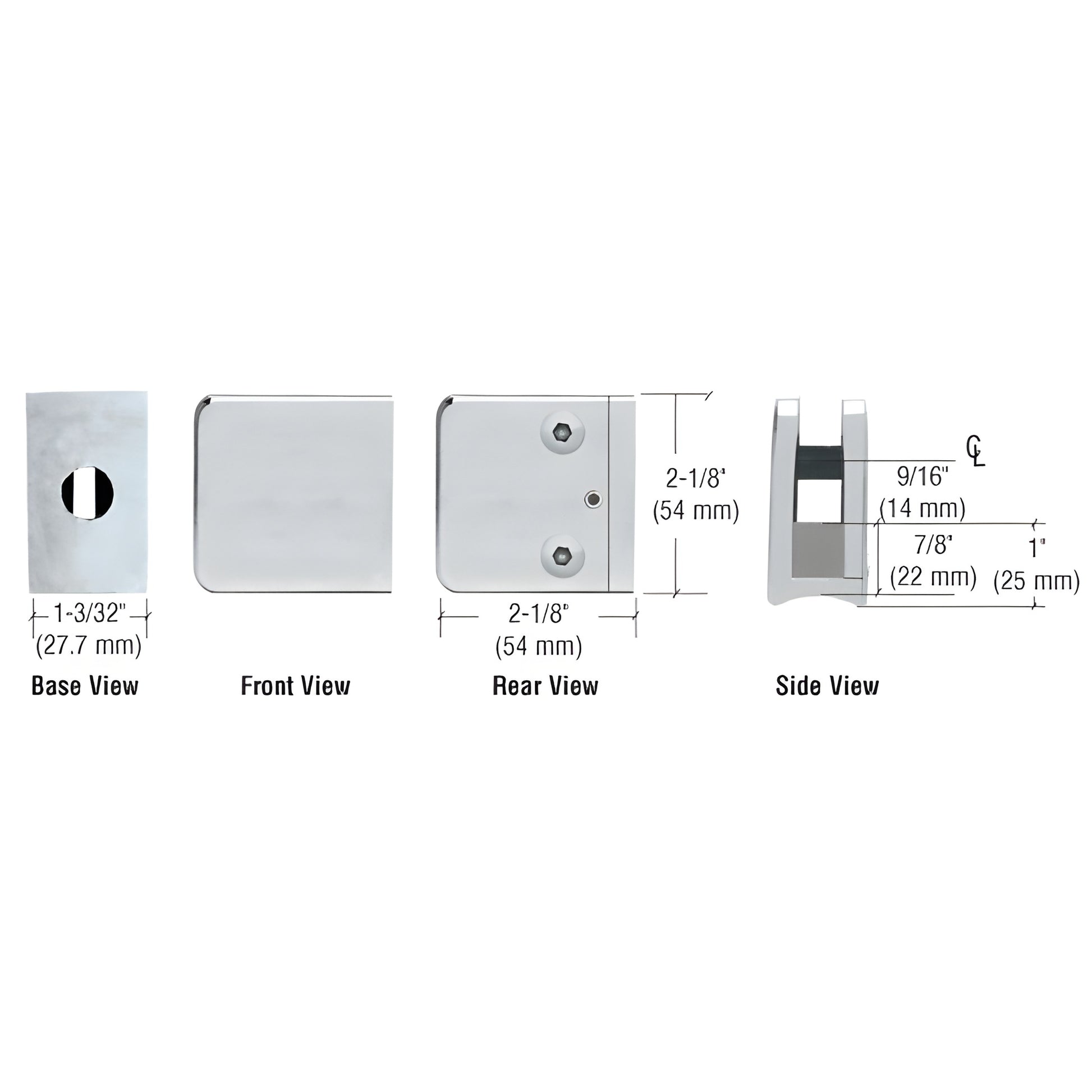

CRL Z-Series Clamps (reference SKU Z155SS) are offered in round or square shapes and in economical zinc or durable stainless steel construction. The radius base is sized for 2" (51 mm) tubing. Each clamp includes appropriate gaskets and a steel pin to prevent glass slippage when a notch is drilled in the glass. Use CRL Cat. No. ZBOLT14 (bolt) or RN1420 (rivet-nut) to secure the Z-clamp to tubing. These glass clamps are ideal as 3/8 inch glass clamps for metal tubing, stainless steel glass clamps for commercial railings, and radius base glass clamps for architectural partitions.

Glass Fabrication: 1/2" (12 mm) notch required if using provided steel pin.
Replacement Hardware: CRL P612 for replacement screws.

Product Warning:
For interior and exterior applications CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.

Ready to specify? Order CRL Z-Series Clamp (SKU Z155SS) or contact CRL Customer Service for custom finishes and fabrication guidance.
