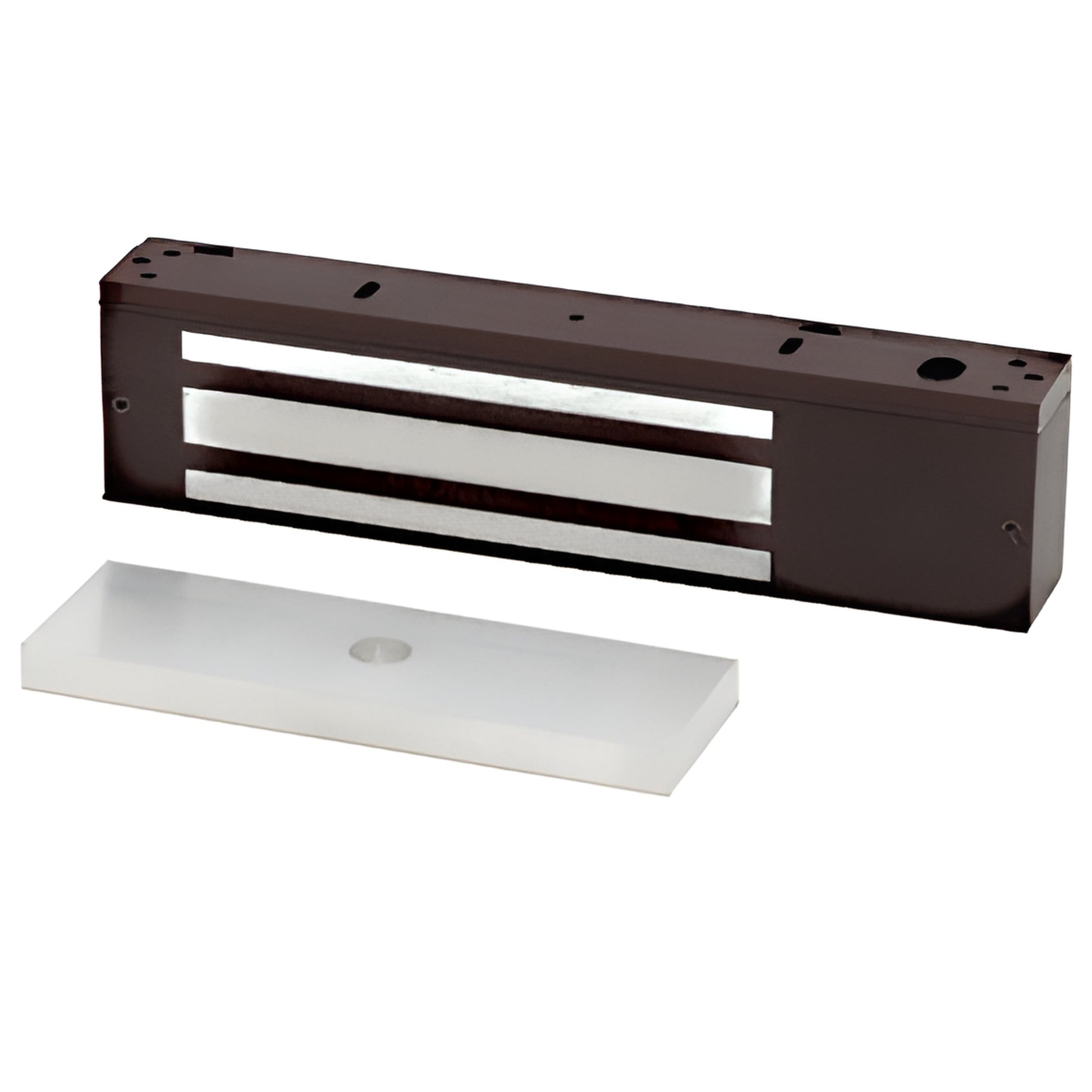

CRL SDC® EMLock® Single Electromagnetic Door Lock 1650 lb Dark Bronze

• ANSI/BHMA Grade 1 compliant
• Fully automatic 12/24V DC selection (no manual switching)
• 1650 lbs. holding force - extra-high security electromagnetic door lock
• Field-upgradeable without removing from the frame
• Anodized aluminum or dark bronze anodized finish — epoxy-less, finished on all sides
• Limited lifetime warranty
• UL Listed

These CRL SDC® EMLock® 1500 Series Electromagnetic Locks are adaptable for Top Jamb and Glass Door applications, delivering high-security magnetic locking with tested 1650 lb holding force. The epoxy-less aesthetic and anodized finishes give a clean, professional look for visible applications. The interlocking EZ-mount assembly keeps hands free for wiring and fastening; locks are field-upgradeable so internal components can be upgraded or exchanged without removing the unit from the frame. Includes self-drilling/tapping sheet metal screws and 10-32 machine screws. UL Listed and ANSI Grade 1 compliant for commercial door security.

SKU: SDC1511DU

SPECIFICATIONS:
Holding Force: 1650 lbs. (748 kg)
Input Voltage: 12/24 V DC — automatic selection (requires filtered power supply)

Single EMLock®
Current Draw: 670 mA @ 12V DC, 350 mA @ 24V DC
Dimensions: L = 11" (279 mm) × H = 2-3/4" (70 mm) × W = 1-9/16" (40 mm)
Weight: 11 lbs. (5 kg)


For high-security commercial or glass door installations that require a top-jamb magnetic lock with field-upgradeable convenience, consider the EMLock® 1500 Series — order or request a quote today.
