CRL SDC 2A Regulated Low-Voltage DC Power Supply

• Regulated and filtered low-voltage DC power for access control and electric locking systems
• Emergency Interface Relay (EIR) for integration with approved fire or other emergency systems
• Output voltage field-selectable at 12V or 24V DC
• Locked, key-hinged cover with conduit knockouts for secure, code-compliant installation
• Built-in battery charging system for optional standby battery backups

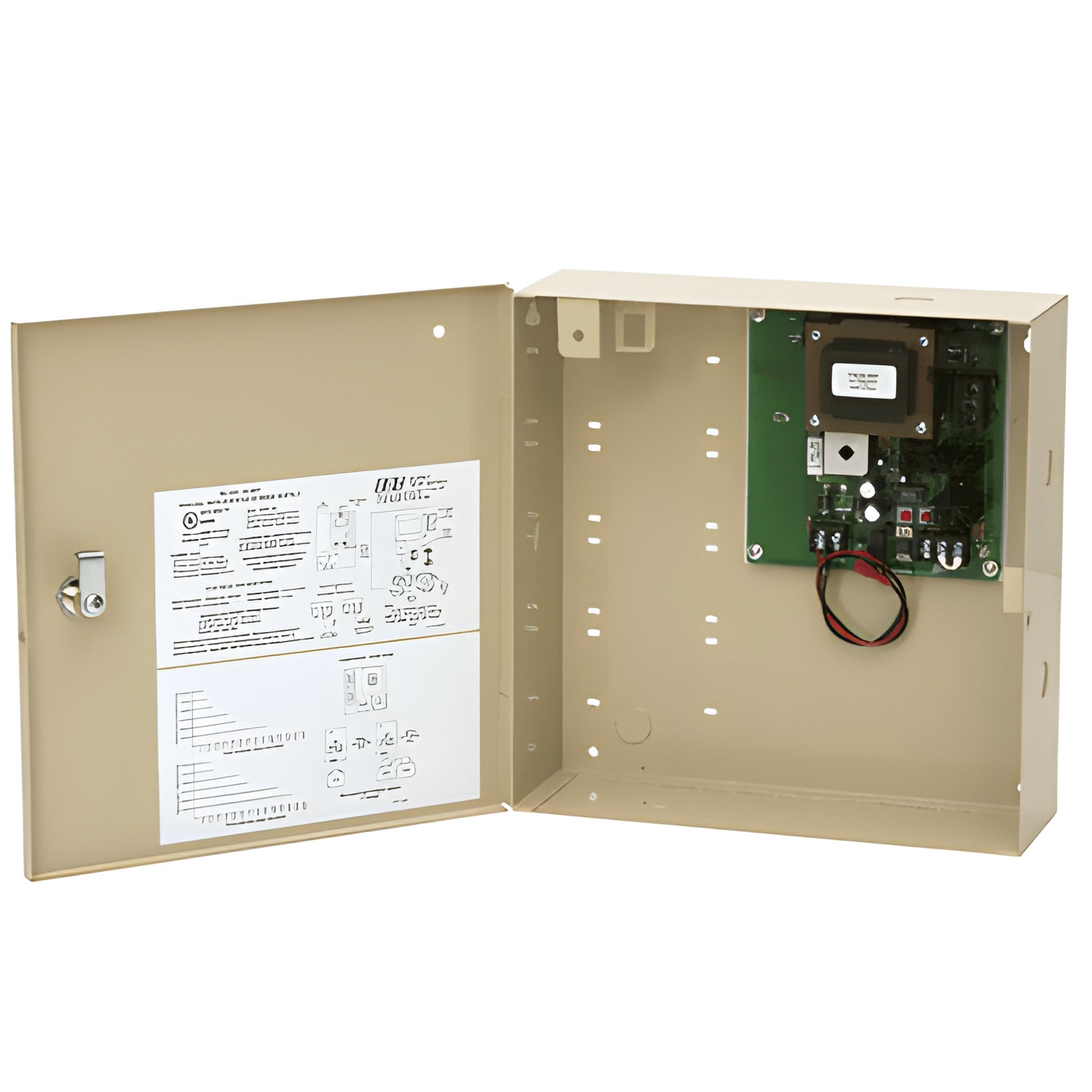

CRL SDC® Power Supplies (SKU: PS632RFKL) — purpose-built for powering electric locks, station controls, and consoles. These power supplies deliver regulated, filtered DC power and include Emergency Interface Relay (EIR) modules for direct integration with approved fire and emergency systems. Field-selectable 12V/24V output simplifies inventory and on-site configuration. Built-in battery chargers maintain optional standby batteries. Durable tan baked-enamel, NEMA Grade 1 enclosures with conduit knockouts and key-lock hinged covers provide secure, professional installations.

SPECIFICATIONS:
Input Voltage: 120V AC 60Hz
Output Voltage: 2V DC or 24V DC
Output Current: 1 Amp Max
Battery Charger Output: 500mA @ 13.5 or 27VDC
