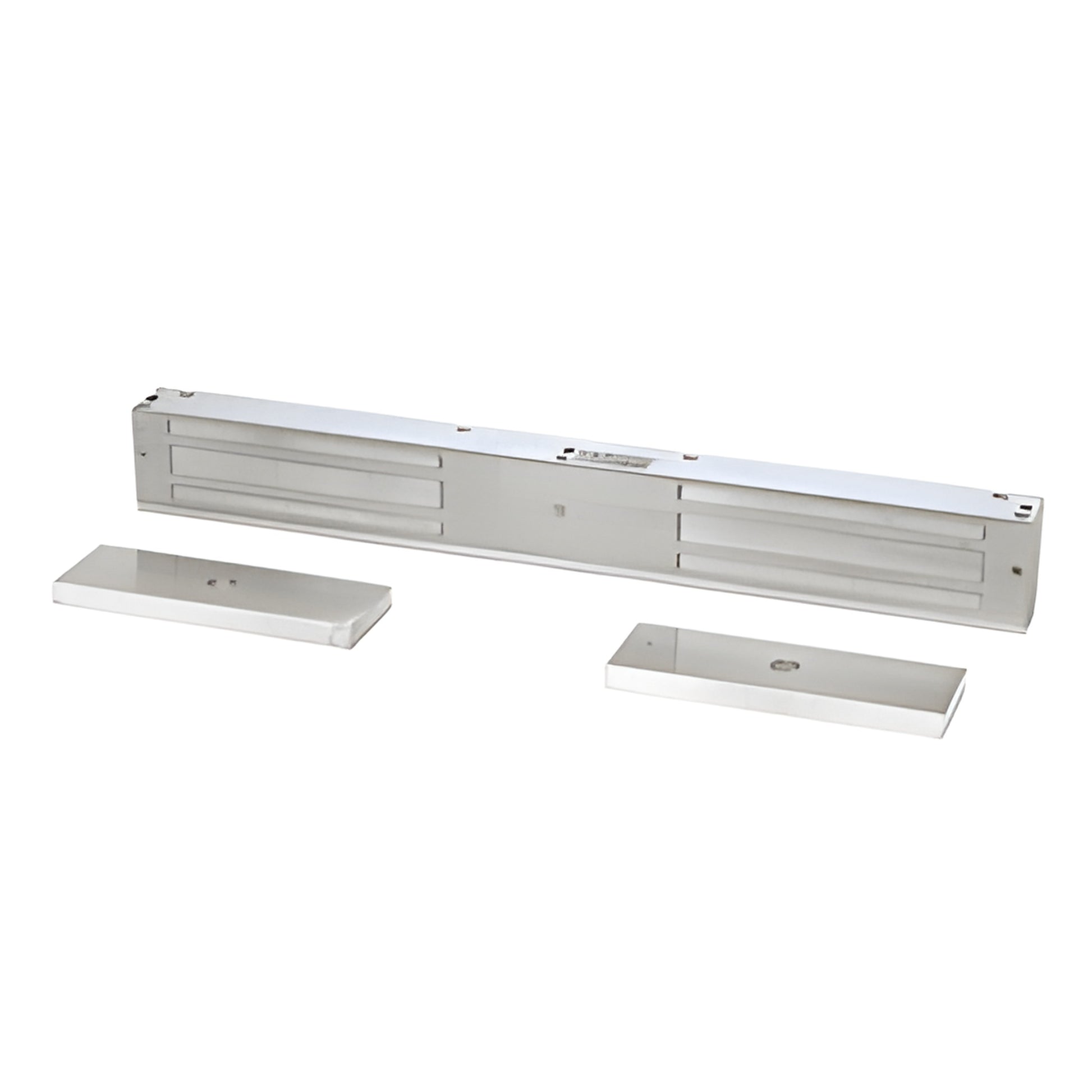

CRL SDC EMLock Double Electromagnetic Maglock 1650 lb Aluminum
CRL SDC EMLock Double Electromagnetic Maglock 1650 lb Aluminum
Regular price
$1,684.28 CAD
Regular price
Sale price
$1,684.28 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDC1512A
Shipping Weight: 21.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 21.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Depth
1-9/16
Body Height
2-3/4
Body Length
22
Brand
SDC
Category
EMLock (R)
Certification
ANSI BHMA Grade One Compliant
Finish/Color
Aluminum
Function
Magnetic Door Lock
Handing
Non Handed
Input
12 24 Volts DC Automatic Selection
Series
1500
Strike Opening Height
2.75
Strike Opening Width
22
Type
Electromagnetic Lock
UL Listed
Yes
Overview
- ANSI/BHMA Grade 1 compliant
- Fully automatic 12/24V DC selection (requires filtered power supply)
- 1650 lbs. holding force (748 kg)
- Field-upgradeable without removing from frame
- Anodized aluminum or dark bronze anodized finish
- Limited lifetime warranty
- UL Listed
These CRL SDC® EMLock® 1500 Series electromagnetic locks (SKU: SDC1512A) deliver high-security magnetic locking for top jamb and glass door kits. Tested holding forces up to 1650 lbs. provide extra-high security for commercial and institutional doors. The epoxy-less, fully finished housing offers a clean appearance on all sides, and the interlocking EZ-mount assembly keeps hands free for wiring and fastening. These maglocks are UL Listed, ANSI Grade 1 compliant, and designed to be field-upgradeable so internal components can be serviced or upgraded without removing the lock from the frame. Self-drilling/tapping sheet metal screws and 10-32 machine screws are included.
SPECIFICATIONS:
Holding Force: 1650 lbs. (748 kg)
Input Voltage: 12/24 Volts DC - automatic selection (requires filtered power supply)
Double EMLock®
Current Draw:
1340 mA @ 12V DC
700 mA @ 24V DC
Dimensions:
L = 22" (559 mm) x H = 2-3/4" (70 mm) x W = 1-9/16" (40 mm)
Weight: 26.5 lbs. (12 kg)
High-security, field-upgradeable electromagnetic lock ideal for commercial doors—order the CRL SDC® EMLock® 1500 Series (SDC1512A) today.
Specifications
Installation Instructions
