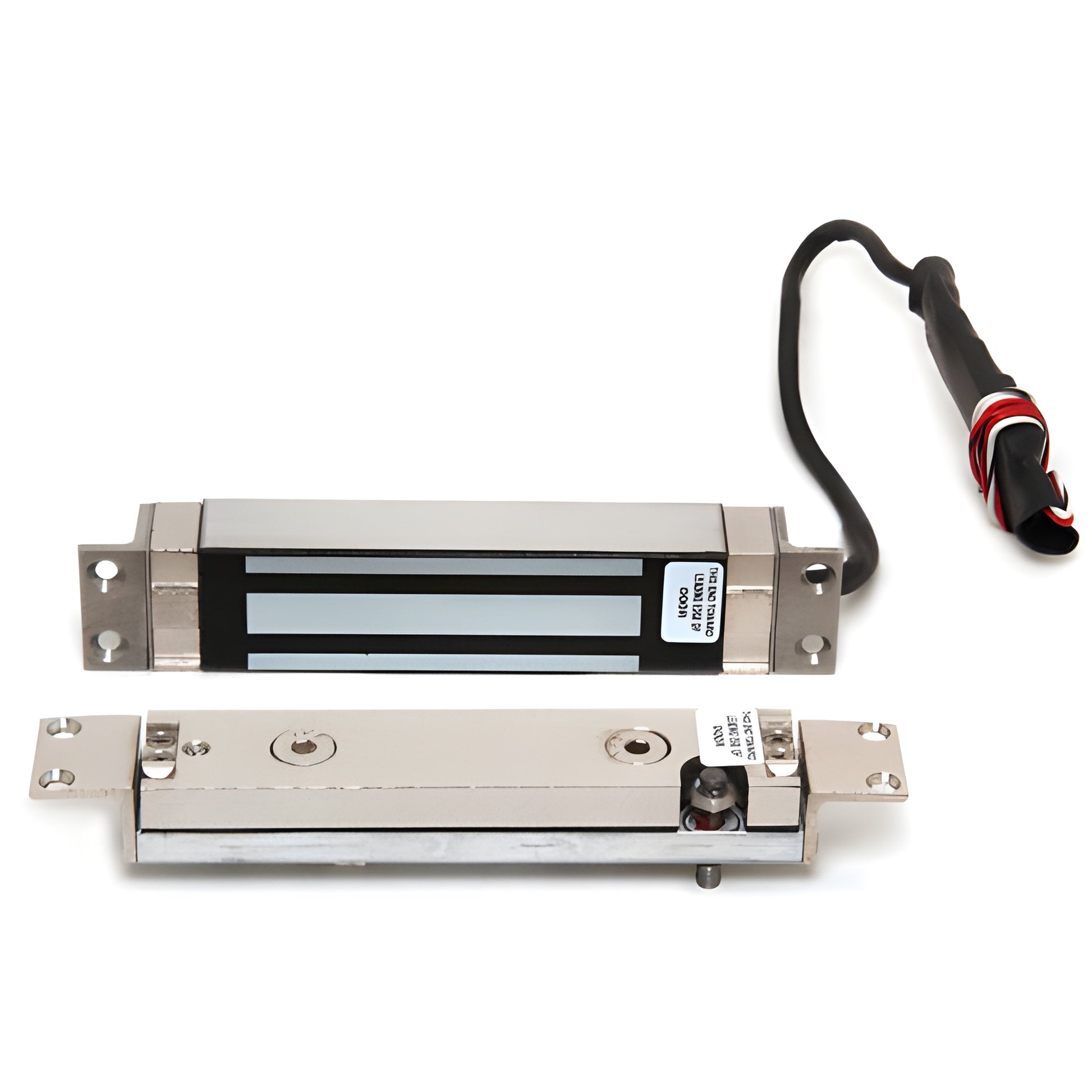

CRL SDC® Hi/Shear® Mortise Mount Electromagnetic Mag Lock

• 2000 lb shear holding force
• Fully automatic 12/24V DC selection
• Lock and armature are mortised for concealed installation
• Limited lifetime warranty
• UL Listed

CRL SDC® Hi/Shear® Electromagnetic Mortise Mount Shear Lock (SKU: SDC1562) is engineered for single and double metal doors and frames and for glass doors with top rails and metal frames. This compact, concealed electromagnetic mortise shear lock delivers strong security with a clean, low‑profile appearance—ideal when you need a high‑security, concealed shear lock for metal or glass doors.

SPECIFICATIONS:
Holding Force: 2000 lb (907 kg)
Input Voltage: 12/24 V DC (automatic selection)
Current Draw: 650 mA @ 12 V DC, 350 mA @ 24 V DC
Lock Dimensions: 8" L × 1-1/2" W × 1-1/4" D (203 × 38 × 32 mm)
Armature Dimensions: 8-7/16" L × 1-1/2" W × 7/8" D (214 × 38 × 22 mm)

NOTE: Accessories available: mounting brackets, compatible power supplies and transformers, and keypads.

Product Warning:
Requires a filtered, regulated 12–24 VDC power supply or filtered unregulated 12–16 VDC (transformer with rectifier). Voltage selection is automatic. Designed for use with CRL EG100 Series Electronic Egress Control Handles.

Choose the SDC1562 Hi/Shear® mortise shear lock for concealed, high‑holding electromagnet security—order now or contact us for compatibility and power supply recommendations.
