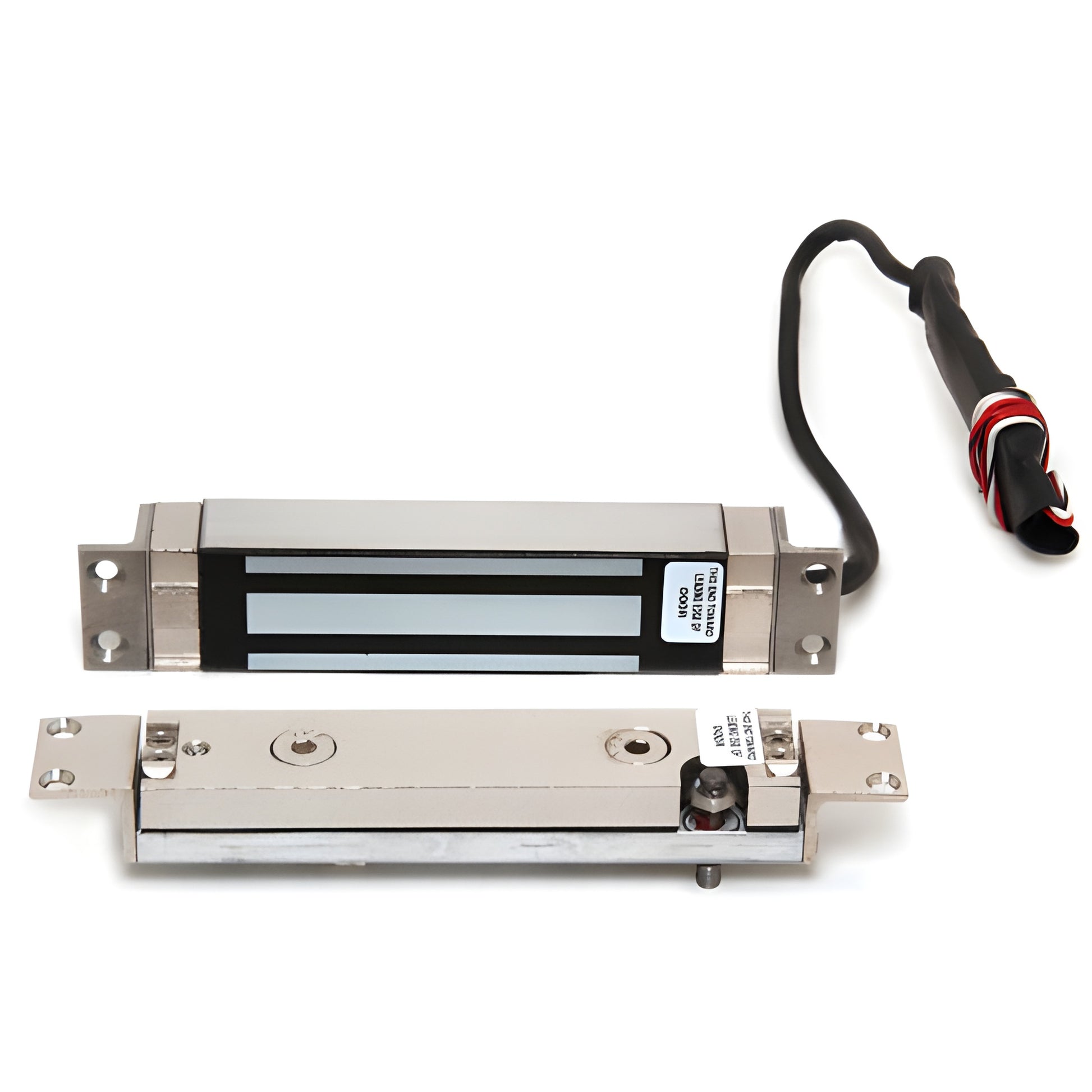

CRL SDC® Hi/Shear® Mortise-Mount Mag Lock with Door Position Switch
CRL SDC® Hi/Shear® Mortise-Mount Mag Lock with Door Position Switch
Regular price
$1,506.76 CAD
Regular price
Sale price
$1,506.76 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDC15621TCM
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Depth
1-1/4
Body Height
2-3/4
Body Length
8
Brand
SDC
Category
Hi/Shear (R)
Door Positioning Sensor
Yes
Function
Magnetic Door Lock
Handing
Non Handed
Input
12 24 Volts DC Automatic Selection
Type
Electromagnetic Lock
UL Listed
Yes
Overview
- 2000 lb shear holding force for high-security doors
- Automatic 12/24V DC selection (no jumper required)
- Mortised lock and armature—fully concealed installation
- Limited lifetime warranty
- Includes door position switch for status monitoring
- UL Listed
This CRL SDC® Hi/Shear® Electromagnetic Mortise Mount Shear Lock (SKU: SDC15621TCM) is engineered for single and double metal doors and frames, and for glass doors with top rails and metal frames. Its compact, mortised design provides a concealed, high-security locking solution with an attractive finished appearance.
SPECIFICATIONS:
Holding Force: 2000 Lbs. (907 kg)
Input Voltage: 12/24 Volts DC (automatic selection)
Current Draw: 650 mA @ 12V DC, 350 mA @ 24V DC
Lock Dimensions: Length = 8" (203 mm); Width = 1-1/2" (38 mm); Depth = 1-1/4" (32 mm)
Armature Dimensions: Length = 8-7/16" (214 mm); Width = 1-1/2" (38 mm); Depth = 7/8" (22 mm)
NOTE: Accessories available include mounting brackets, compatible power supplies and transformers, and keypads.
Product Warning:
Requires a filtered, regulated 12 to 24 VDC power supply or a filtered unregulated supply (transformer with rectifier) at 12 to 16 VDC. Voltage selection is automatic. For use with CRL EG100 Series Electronic Egress Control Handles.
