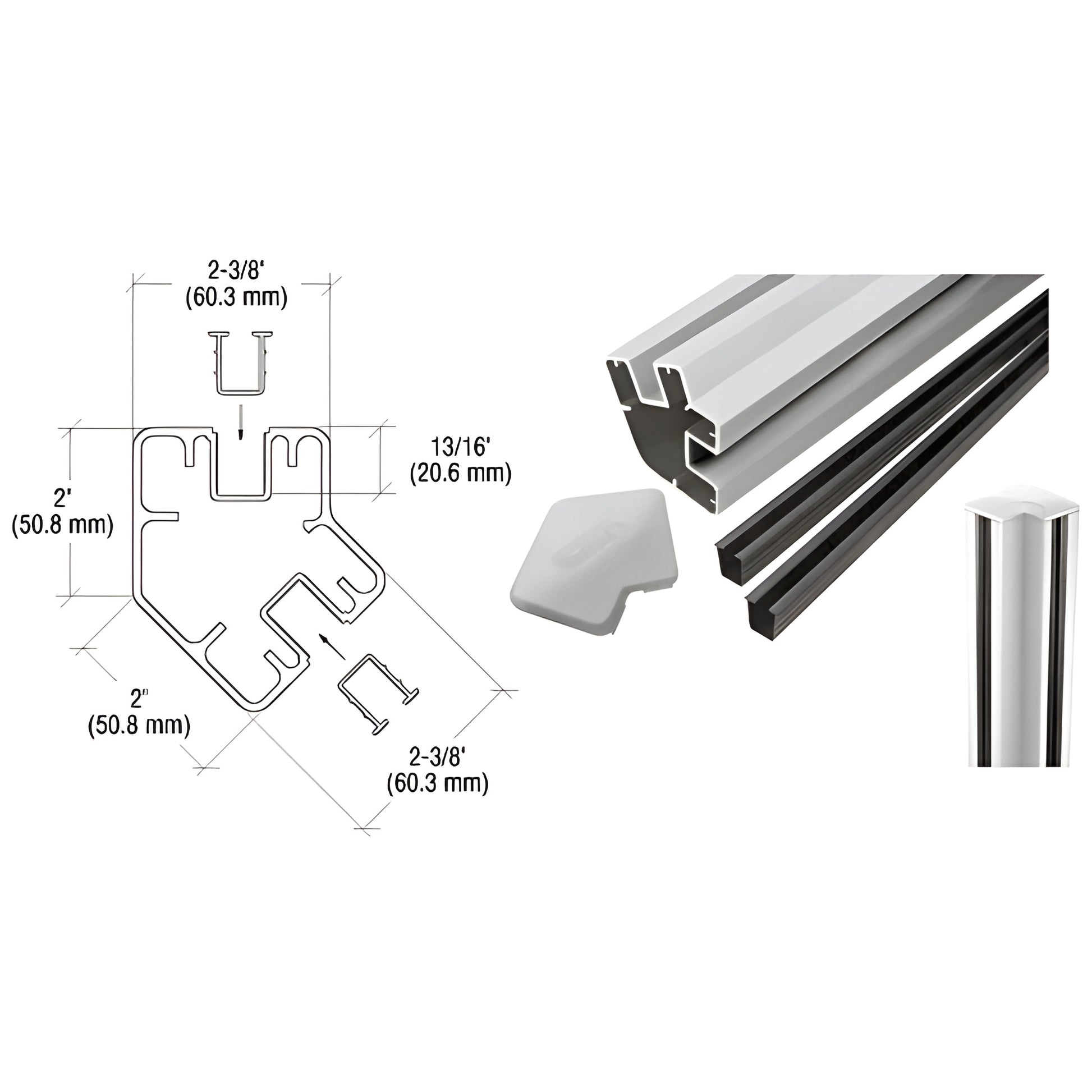

CRL 36in 135° Rectangular Rail Post Kit 2" x 2-3/8" Silver
Item# S365KS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
Corner
Degree
135
Depth
2-3/8 in. (60 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
36 in. (914 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Use as a 135° glass panel post kit (SKU: S365KS)
- Accommodates 1/4" to 3/8" (6–10 mm) glass when dry-glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet-glazed
CRL Kits S365KS are designed for fabricating posts that join two glass panels at a 135° angle. Ideal for frameless glass partitions and decorative glass assemblies, these 135-degree glass panel post kits support both dry-glazed (with vinyl) and wet-glazed installations and come in multiple standard colors with custom painted finishes available.
Installation limits: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq. ft. per panel.
Product Warning:
All ARS/AWS painted-to-order products are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If exact weight (for shipping cost calculation) is required to complete your order, please request it prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary based on your monitor settings.
For pricing, lead times, or to order SKU S365KS, contact CRL Customer Service or request a custom color quote.
CAD Drawings - pdf
