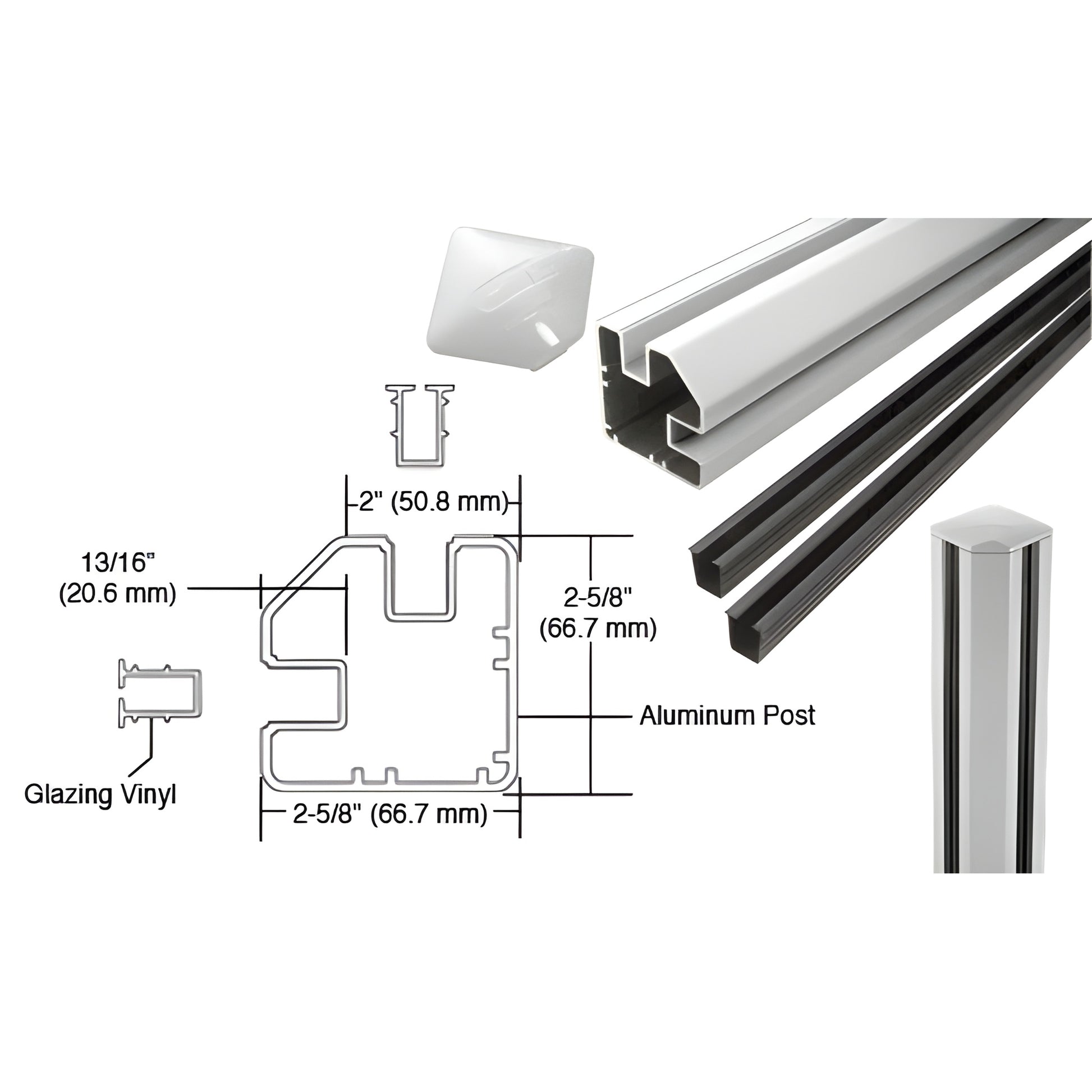

CRL Silver 72 in 90° Rectangular Corner Post Kit 2 x 2-5/8 in
CRL Silver 72 in 90° Rectangular Corner Post Kit 2 x 2-5/8 in
Regular price
$315.68 CAD
Regular price
Sale price
$315.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S72CRKS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Corner
Degree
90
Depth
2 in. (51 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
72 in. (1829 mm)
Material
Aluminum
Profile
Rectangular
Width
2-5/8 in. (67 mm)
Overview
- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Fits 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Fits 1/2" (12 mm) glass when wet glazed
CRL 90° Glass Post Kit (SKU: S72CRKS) — Fabricate sturdy 90-degree joins between two glass panels with this versatile post kit. Designed for glass partition and shower enclosure applications, the kit supports dry-glazed vinyl installations for 6–10 mm glass and wet-glazed installations for 12 mm glass. Available in multiple factory-painted finishes; custom colors can be ordered to match project specifications.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area 24 sq ft.
Product warning: ARS/AWS painted-to-order products are non-refundable and non-returnable.
Specifications
CAD Drawings - pdf
