CRL 48 in Silver Metallic 135° Rectangular Glass Post Kit 2 x 2-3/8 in
Item# S485KS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Centerline
2 in. (51 mm)
Configuration
Corner
Degree
135
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
48 in. (1219 mm)
Material
Aluminum
Profile
Rectangular
Width
2-3/8 in. (60 mm)

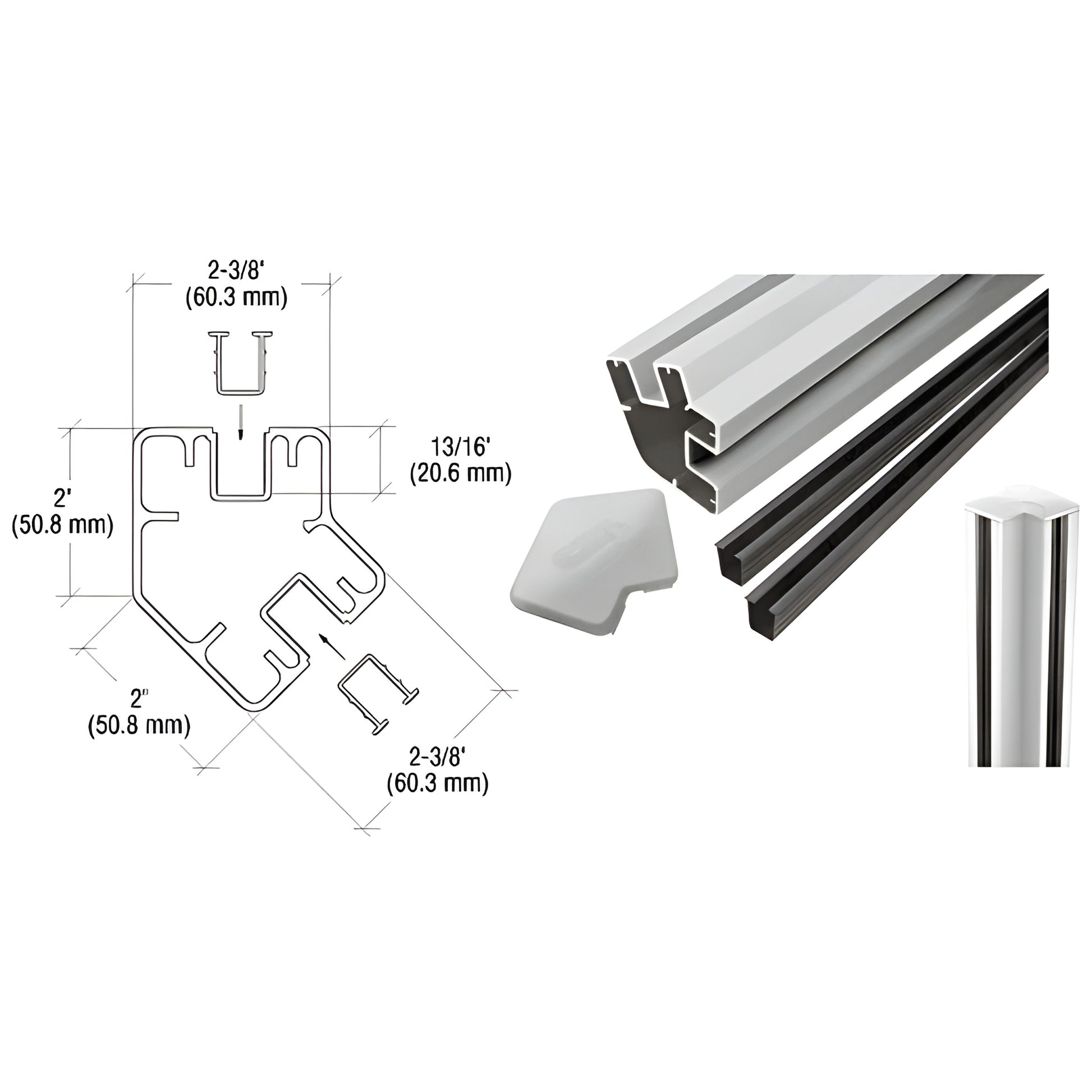

- Standard kit includes post, top cap, and vinyl
- For joining two panels at a 135° angle (135-degree glass panel post kit)
- Accommodates 1/4"–3/8" (6–10 mm) glass dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass wet glazed
- Available in several attractive colors; custom colors available upon request
These CRL Kits (SKU: S485KS) are designed for fabricating posts to join two panels at a 135° angle. Ideal for glass partition and storefront applications, the kit supports 1/4"–3/8" panels when dry glazed with vinyl and 1/2" panels when wet glazed. Available in multiple factory-painted finishes—custom colors possible on request.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area 24 sq ft.
Product Warning:
All ARS/AWS painted-to-order products are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If exact weight or confirmed shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are actual or close representations; colors may vary depending on your monitor.
Order S485KS today or contact CRL Customer Service for custom color and shipping details.
CAD Drawings - pdf
