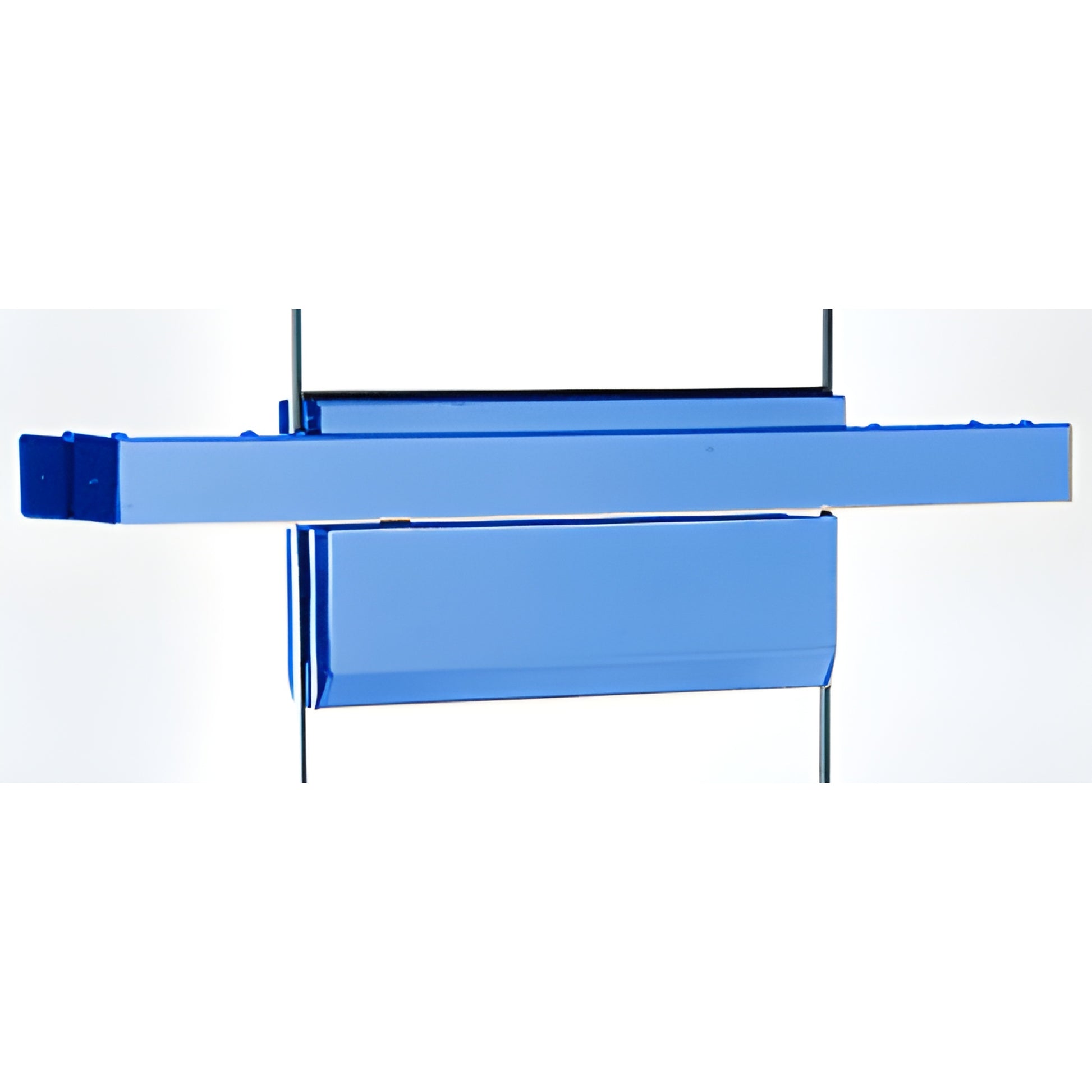

CRL Single Floating Door Header, Custom Painted for Concealed Closers

• Ideal for installations where cutting into the floor for a floor closer is not an option
• Available for 1/2" (12 mm) glass-to-glass or glass-to-wall installations, with or without overhead concealed door closers
• Can be used with or without an overhead concealed closer
• Custom lengths available

CRL Floating Headers for Overhead Concealed Door Closers (SKU: FH4PTCS) were designed to enable single or double door installation off glass sidelites with a transom above. Stock Floating Headers are fabricated for 1/2" (12 mm) glass-to-glass installations and are prepped to accept CRL overhead concealed door closers and a 1/2" (12 mm) thick glass transom. Custom Floating Headers cover additional configurations including glass-to-wall installations, custom lengths, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers. Header dimensions: 4" x 1-3/4" (102 x 44.5 mm).

Key differentiators:

• Designed specifically for overhead concealed door closers—no floor cutting required
• Stock and custom options for glass-to-glass and glass-to-wall setups
• Prepped for multiple locking and pivot solutions for flexible hardware integration

Quick Pick policy: These products are stocked at our centralized service center and ship on the next weekly re-supply truck to your regional CRL service center. If your regional center is out of stock, your order can typically be filled in just a few days.

Check stock availability by clicking the "CHECK STOCK AVAILABILITY" box above.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for intended use and site conditions. Installers must be qualified and familiar with local, state, and federal regulations, safety factors, and appropriate fastening materials and methods.

If the transom weight above the header exceeds 100 lbs. (45.4 kg), the transom must be ceiling-supported to prevent header bowing. Acceptable supports include Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact the Technical Sales Department for assistance.

Need this floating header for an overhead concealed door closer? Order SKU FH4PTCS or contact CRL for
