CRL Sky White 156 in Heavy-Duty Windscreen Replacement Post
CRL Sky White 156 in Heavy-Duty Windscreen Replacement Post
Regular price
$845.07 CAD
Regular price
Sale price
$845.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD156W
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

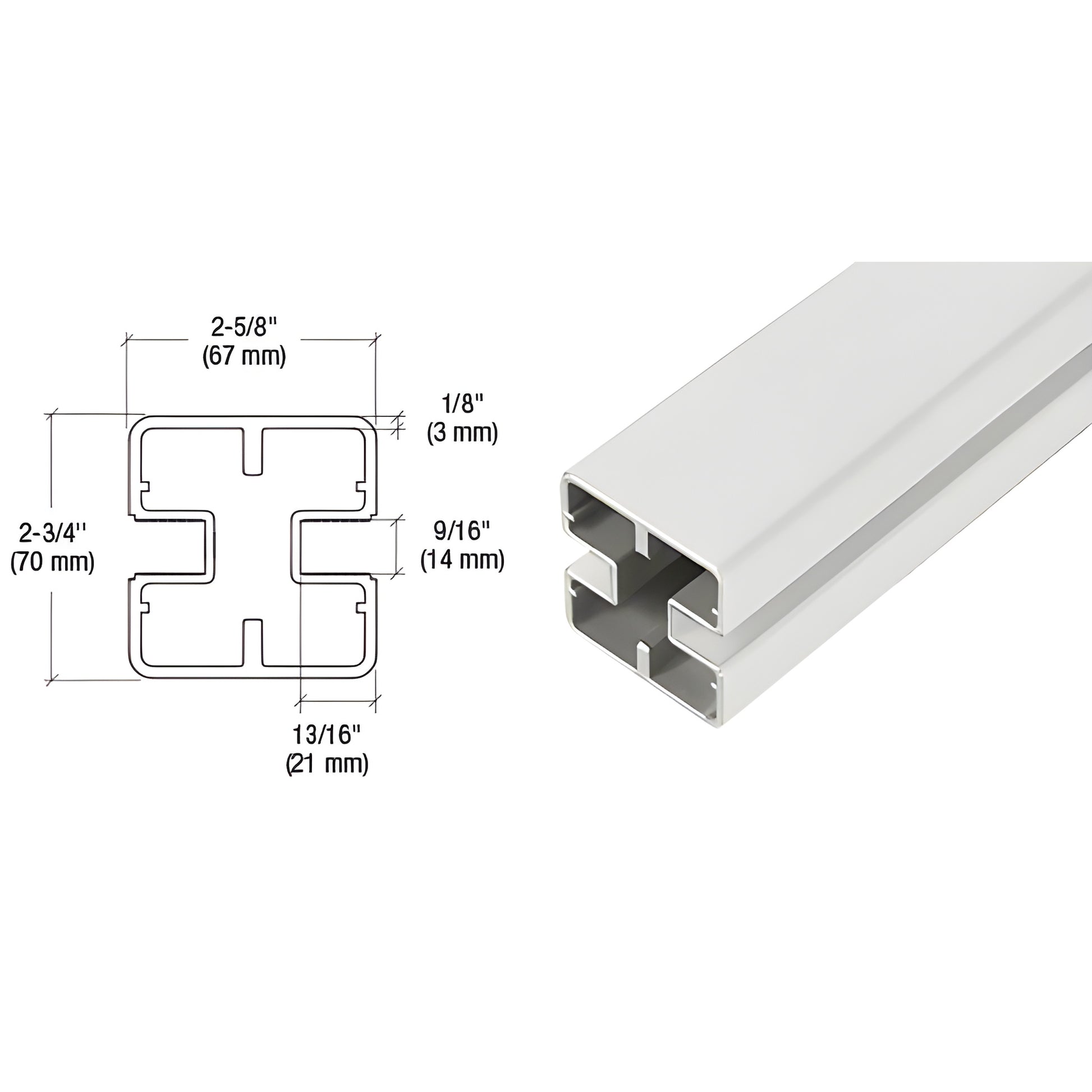

Description
Depth
13/16 in. (21 mm)
Finish/Color
Sky White
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
156 in. (3962 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as Posts Only or in Kits Containing Post, Top Cap, and Vinyl
- Seven Standard Colors, Plus Mill Aluminum
- Custom Colors Available Upon Request
- Accommodates 1/4" to 3/8" (6 to 10 mm) Glass Dry Glazed With Vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) Glass Wet Glazed with Structural Silicone
- Kits Come Complete with Post, Flat Top Cap, and Glazing Vinyl
SKU: HD156W
HD Posts are engineered for heavy-duty glass railing and balustrade applications—use them as end posts or to join two panels at 180°. They accept 1/4"–3/8" (6–10 mm) glass when dry glazed with glazing vinyl and 1/2"–9/16" (12–13.52 mm) glass when wet glazed with structural silicone. Available in seven standard colors plus mill aluminum; custom powder-coat colors available on request. Kits include the post, flat top cap, and glazing vinyl for faster installation.
Limitations: Maximum post spacing 72" (1.83 m) on center. Maximum panel size not to exceed 24 sq ft.
Product Warning: All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Order HD156W heavy-duty glass posts today to streamline your glass railing installation.
Specifications
CAD Drawings - pdf
