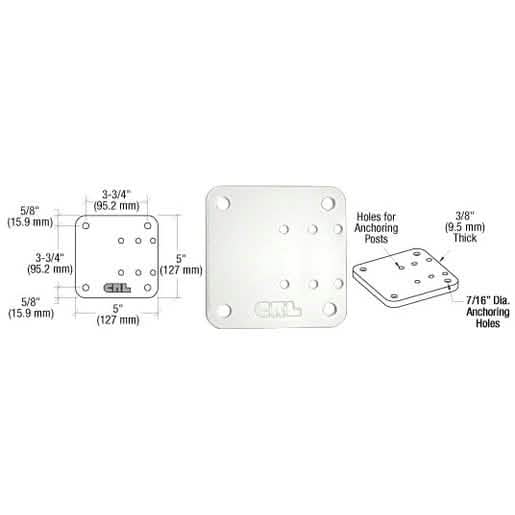

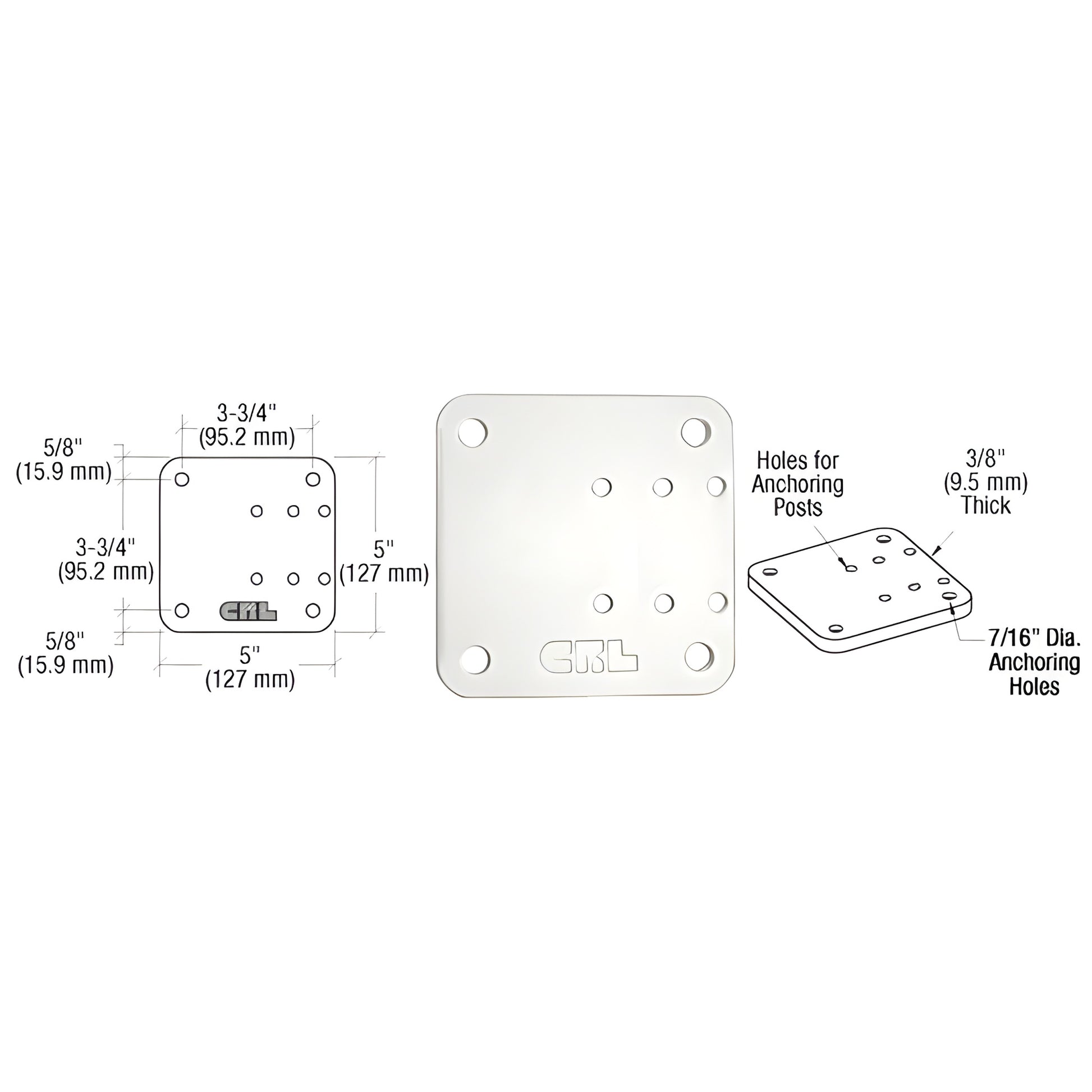

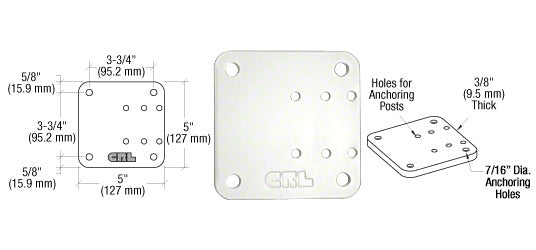

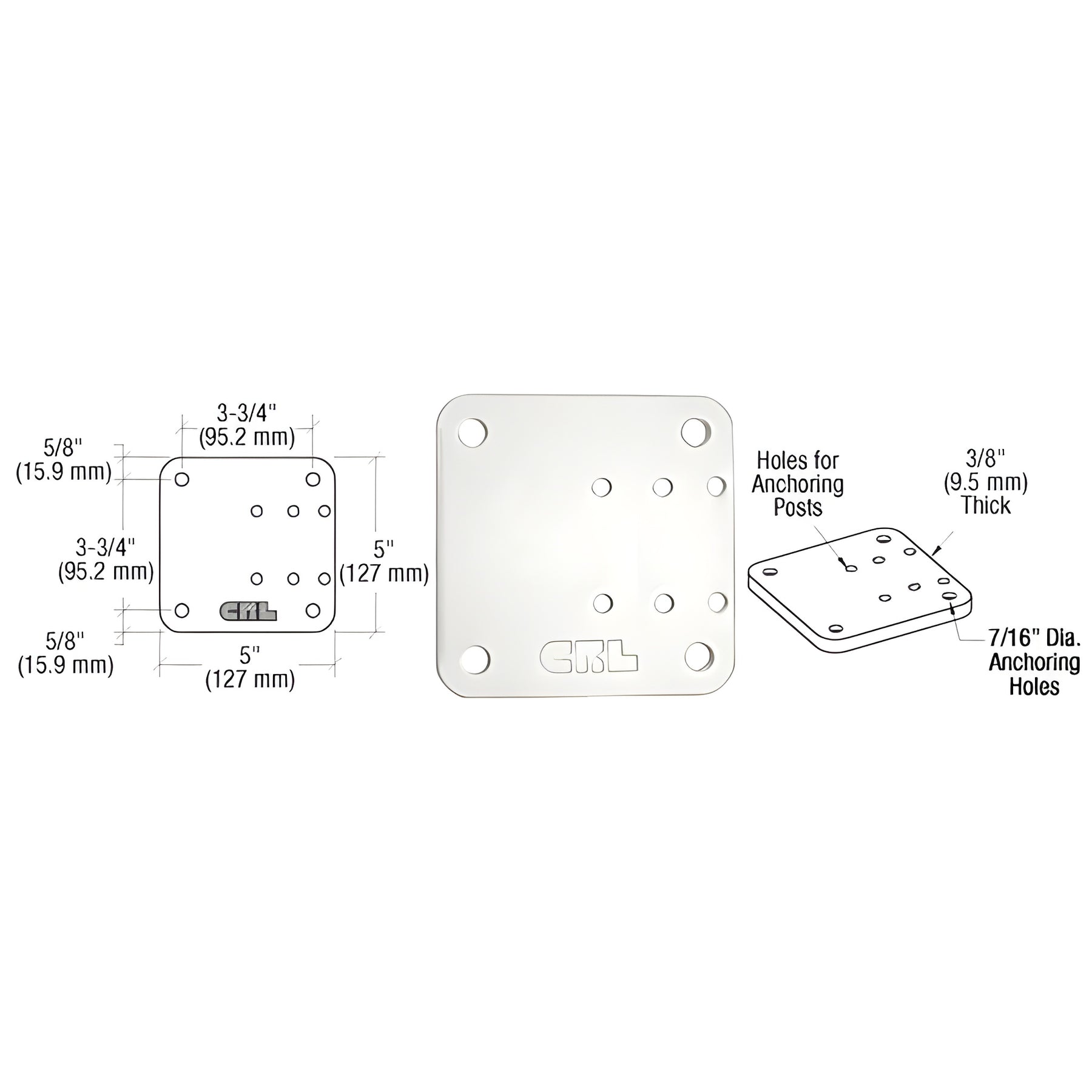

CRL Sky White 5" x 5" Offset Base Plate for Glass Railing Posts
CRL Sky White 5" x 5" Offset Base Plate for Glass Railing Posts
Regular price
$64.72 CAD
Regular price
Sale price
$64.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BP05W
Shipping Weight: 13.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.76 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Sky White
Material
Aluminum
Overview
- Available in several attractive colors
- Available for standard and 45° post installations
- Compatible with all standard railings
- Fits 2-3/8" (60 mm) square aluminum posts
CRL Standard Square Base Plates (BP05 Offset) screw into vertical post raceways and are countersunk to accept four Cat. No. BPS112 base plate screws. Attach to substrate using concrete anchors or lag bolts. Use stainless steel washers (WSHR1) and color-match bolt cover buttons (BTN1) for a finished appearance. The BP05 offset base plate design allows vertical posts to attach to one side of the base plate. One moisture barrier gasket (Cat. No. BPG1BL) is included with each base plate. SKU: BP05W.
Key differentiators:
- Offset design for side-mounted vertical posts — ideal for ADA-compliant and commercial railing upgrades
- Painted-to-order finish in multiple colors for color-matched architectural projects
- Designed for 2-3/8" (60 mm) square aluminum posts and standard railing systems
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Order the BP05W offset base plate today to match your project’s color and mounting requirements.
