CRL Sky White 72 in Heavy-Duty Windscreen Replacement Post
CRL Sky White 72 in Heavy-Duty Windscreen Replacement Post
Regular price
$438.40 CAD
Regular price
Sale price
$438.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD72W
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

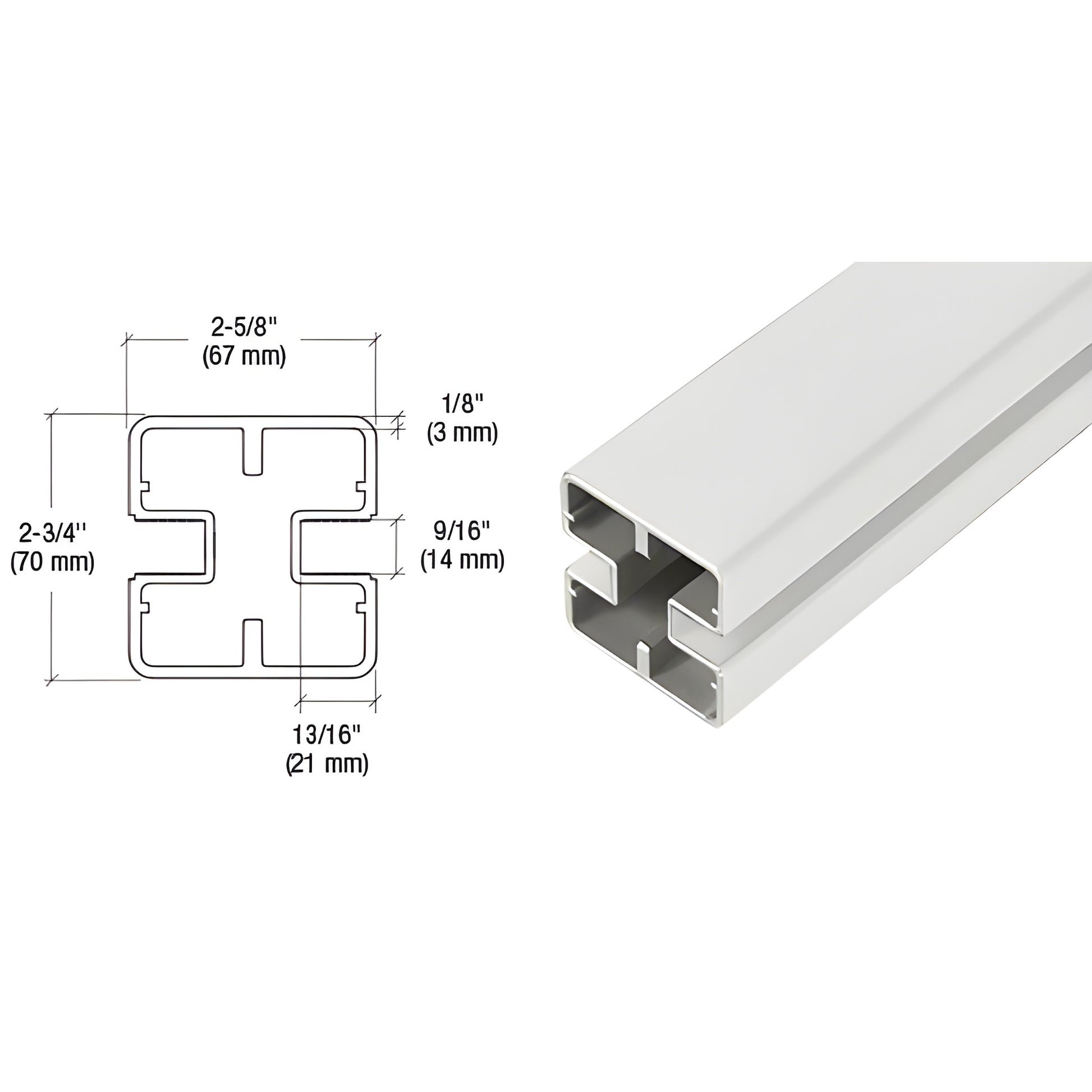

Description
Depth
13/16 in. (21 mm)
Finish/Color
Sky White
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
72 in. (1829 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as Posts Only or in Kits Containing Post, Flat Top Cap, and Glazing Vinyl
- Seven standard colors plus mill aluminum; custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass — dry glazed with vinyl (dry-glazed glass railing posts)
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass — wet glazed with structural silicone (wet-glazed glass balustrade posts)
- Kits include everything needed: post, flat top cap, and glazing vinyl for easy installation
HD Posts (SKU: HD72W) are designed for heavy-duty glass railing and balustrade applications. Use them as end posts or to join two panels at 180°. They support dry-glazed panels from 1/4" to 3/8" (6–10 mm) and wet-glazed panels from 1/2" to 9/16" (12–13.52 mm) with structural silicone. Available in seven standard colors plus mill aluminum, with custom finishes available on request. Differentiators: robust heavy-duty construction, kit option for faster installs, and compatibility with both dry and wet glazing methods. NOTE: Maximum post spacing is 72" (1829 mm) on center. Maximum panel area should not exceed 24 sq. ft. per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Contact CRL Customer Service to confirm finish availability or to request a quote and exact shipping weight.
Specifications
CAD Drawings - pdf
