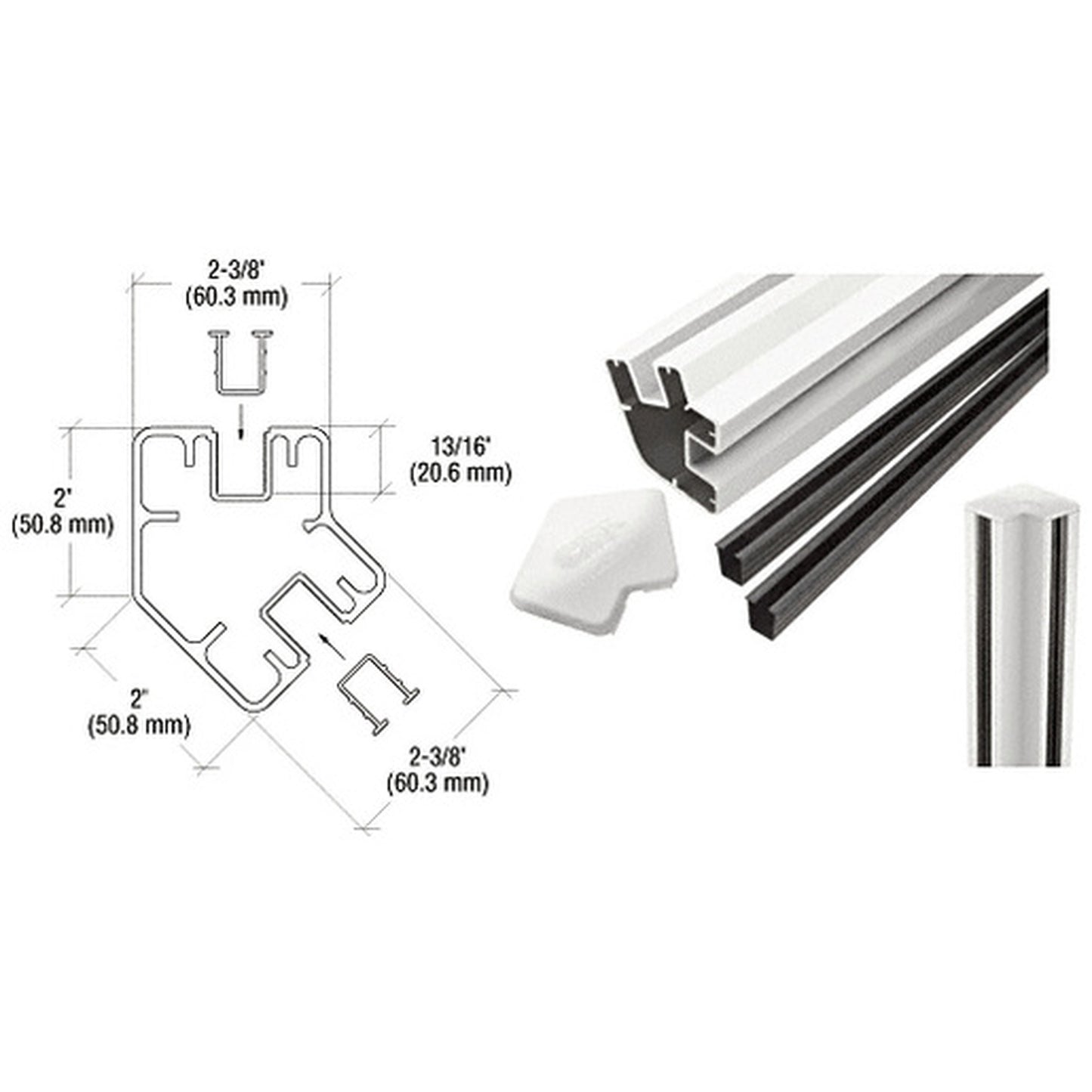

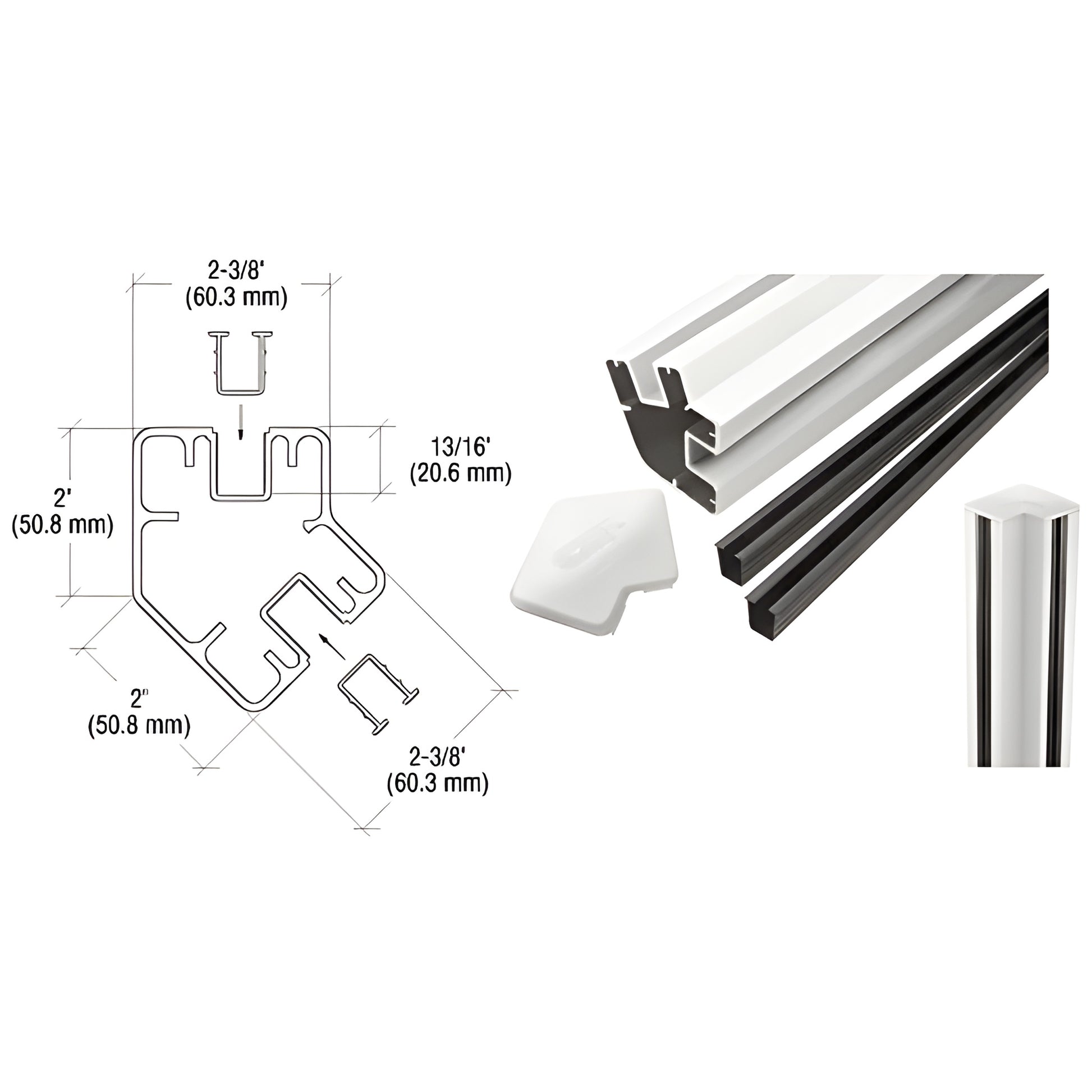

CRL Sky White 72" 135° Corner Rectangular 2" x 2-3/8" Rail Post Kit
CRL Sky White 72" 135° Corner Rectangular 2" x 2-3/8" Rail Post Kit
Regular price
$329.54 CAD
Regular price
Sale price
$329.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S725KW
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Corner
Degree
135
Depth
2-3/8 in. (60 mm)
Finish/Color
Sky White
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
72 in. (1829 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
Overview
- Standard kit includes post, top cap, and vinyl
- Fits 135° glass panel connections — ideal for glass partition systems
- Accommodates 1/4" to 3/8" (6–10 mm) glass dry-glazed with vinyl
- Accommodates 1/2" (12 mm) glass wet-glazed
- Available in several attractive colors; custom colors available upon request
These CRL Kits (SKU: S725KW) are engineered for fabricating posts that join two glass panels at a 135° angle. Designed for both dry-glazed (with vinyl) and wet-glazed installations, these post kits provide a clean, secure connection for glass partitions and divider systems. Available factory-painted in multiple colors, with custom color options upon request for matching architectural finishes.
Installation limits: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq. ft. per panel.
Product Warning:
All ARS/AWS painted products are made-to-order and are non-refundable/non-returnable.
Order the S725KW 135° glass post kit today — contact CRL for custom color requests and shipping weight verification.
Specifications
CAD Drawings - pdf
