CRL Sky White 48in 2 x 2-3/8in 135° Railing Post Kit
Item# S485KW
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Centerline
2 in. (51 mm)
Configuration
Corner
Degree
135
Finish/Color
Sky White
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
48 in. (1219 mm)
Material
Aluminum
Profile
Rectangular
Width
2-3/8 in. (60 mm)

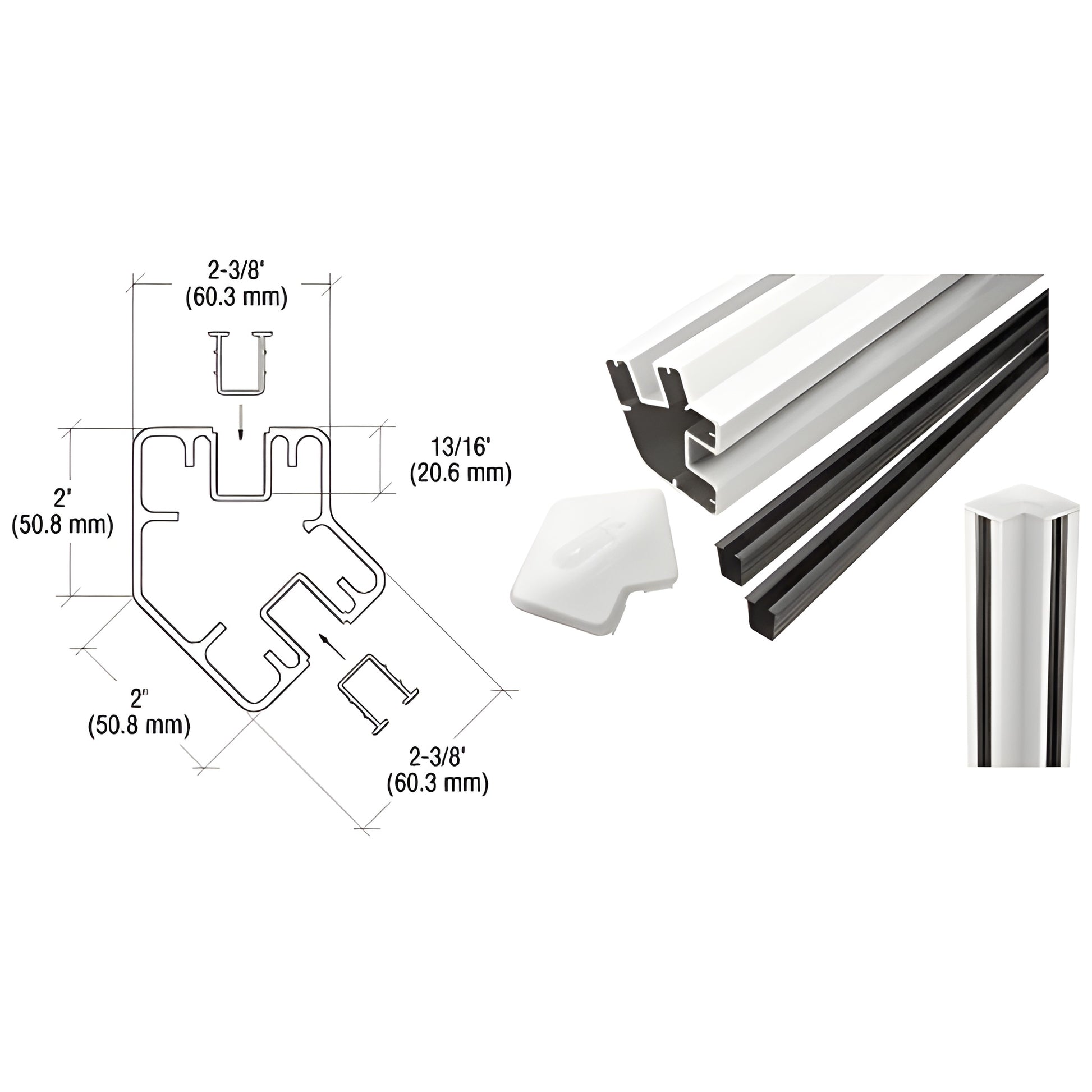

- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors
- Custom colors available upon request
- For 135° connections between two glass panels
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass — dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass — wet glazed
These CRL Kits (SKU: S485KW) are 135-degree glass post kits designed to join two panels. They fit 1/4"–3/8" (6–10 mm) glass when dry glazed with vinyl and 1/2" (12 mm) glass when wet glazed. Available in multiple attractive finishes with custom colors painted to order for matching glass partitions and frameless glass railing systems.
Installation limits: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Need a quote or custom color match? Contact CRL Customer Service to order SKU S485KW today.
CAD Drawings - pdf
