CRL Sky White AWS Steel 90-Degree Rectangular Corner Stanchion
CRL Sky White AWS Steel 90-Degree Rectangular Corner Stanchion
Regular price
$368.85 CAD
Regular price
Sale price
$368.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PSB3CW
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Length
6 in. (152 mm)
Base Plate Thickness
1/2 in. (13 mm)
Base Plate Width
6 in. (152 mm)
Degree
90
Finish/Color
Sky White
Height
30 in. (762 mm)
Material
Zinc Plated Steel
Mounting Hole Diameter
1/2 in. (13 mm)
Overview
- For post heights up to 72" (1.83 m)
- Available in several attractive colors
- 90°, 135°, and 180° bases designed for concrete or steel installations
- Attaches to the post using our 95CBL silicon
- Galvanized and powder coated to prevent corrosion

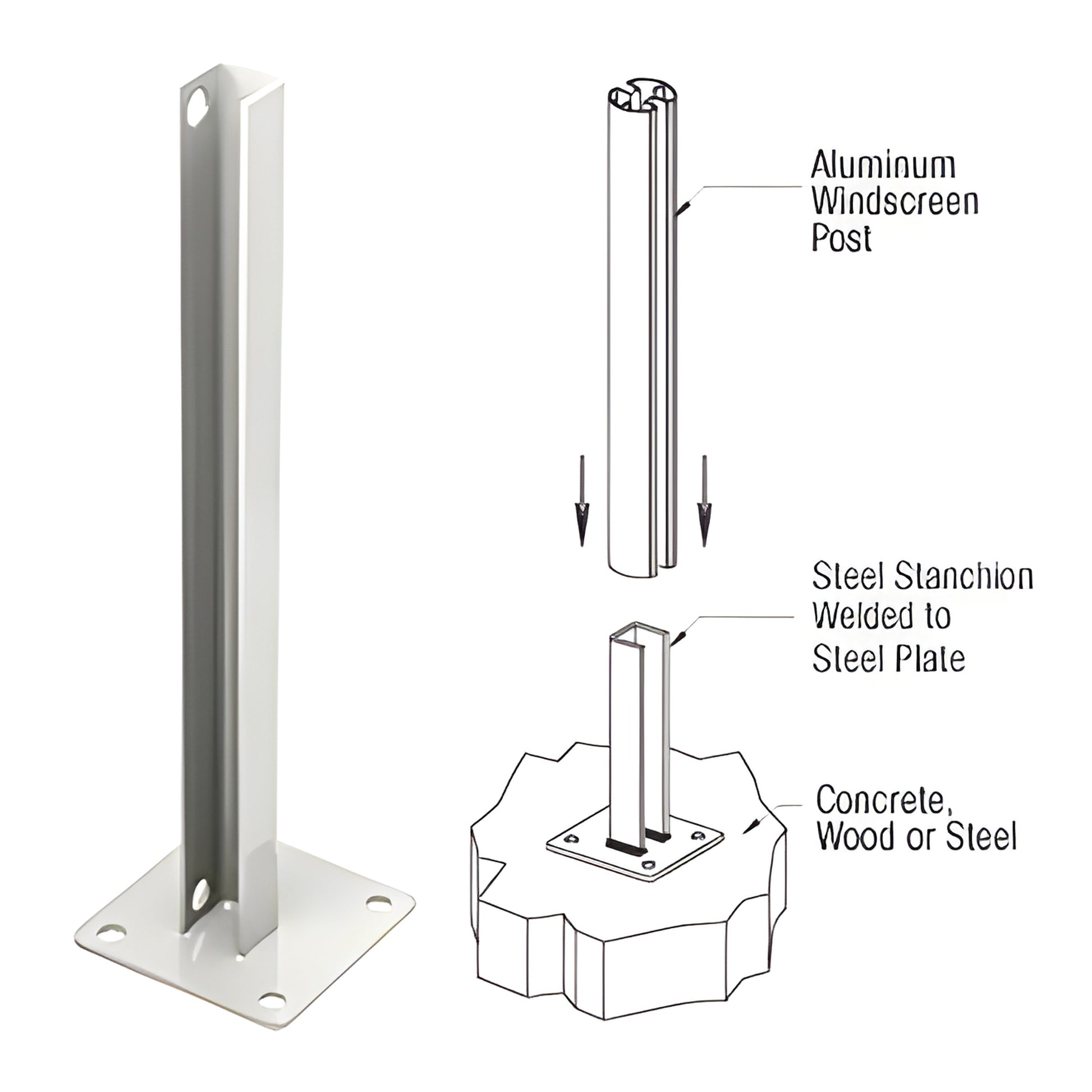

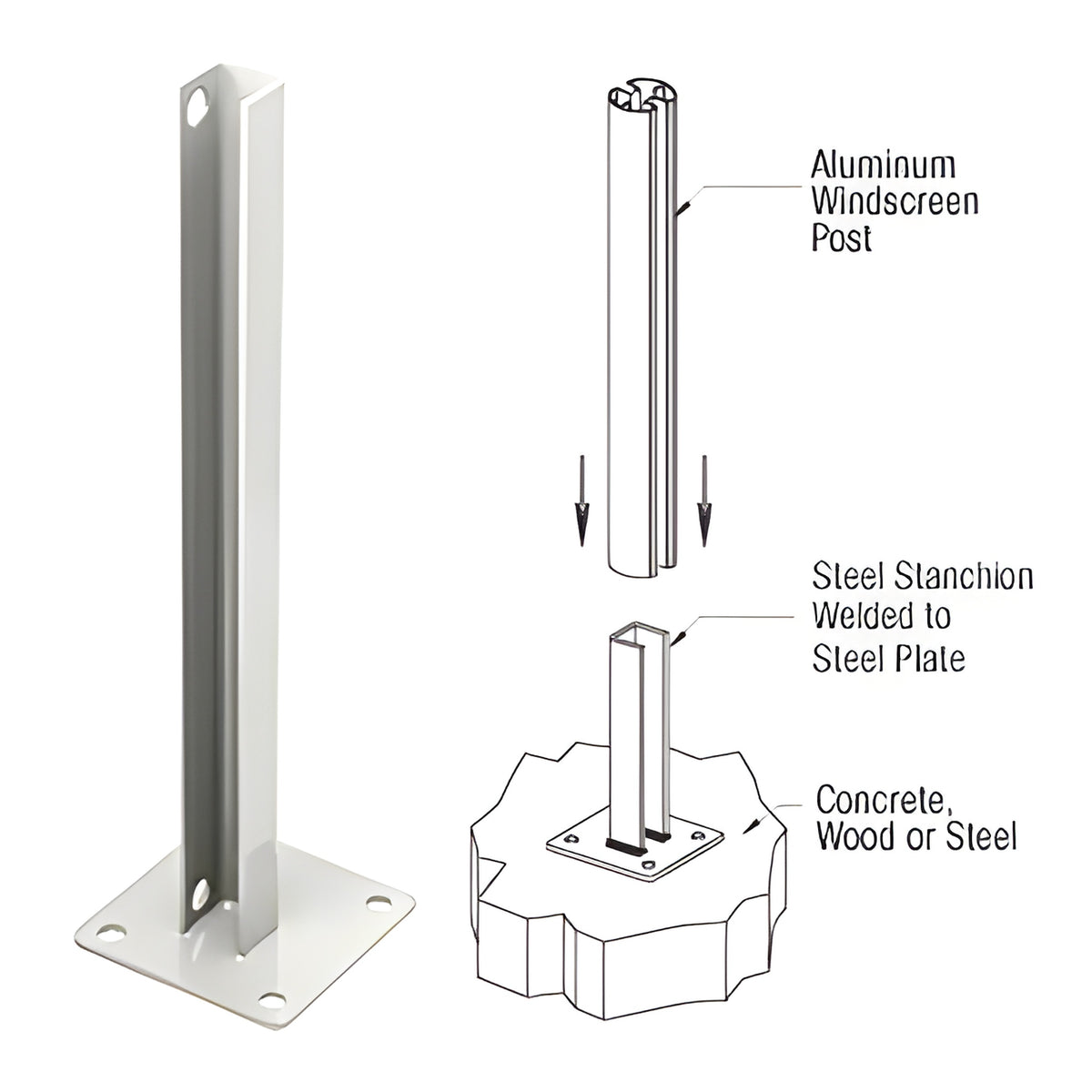

CRL Welded Steel Stanchions are surface-mount stanchions engineered for use with our aluminum posts. Each stanchion is welded to a steel base plate and powder coated to match CRL posts and bottom rails, providing a durable, corrosion-resistant mounting solution for fencing, railing, and post systems.
Stanchions are sold individually and sized for specific post heights. One moisture barrier gasket is included with each stanchion. Available in multiple finish colors to coordinate with your project. SKU: PSB3CW.
Key differentiators:
- Welded steel base plate for reliable surface-mount strength
- Multiple base angles (90°, 135°, 180°) for flexible concrete or steel installations
- Galvanized plus powder coating for long-term corrosion protection
- Includes moisture barrier gasket for enhanced durability
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Ready to order or need a custom finish? Contact CRL Customer Service to confirm availability and shipping.
