CRL Sky White AWS Steel Stanchion for 90° Round Corner Posts

CRL Sky White AWS Steel Stanchion for 90° Round Corner Posts

$383.97 CAD
$383.97 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PSB2CW
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Base Plate Length
6 in. (152 mm)
Base Plate Thickness
1/2 in. (13 mm)
Base Plate Width
6 in. (152 mm)
Degree
90
Finish/Color
Sky White
Height
30 in. (762 mm)
Material
Zinc Plated Steel
Mounting Hole Diameter
1/2 in. (13 mm)

Overview

  • For post heights up to 72" (1829 mm)
  • Available in several attractive colors
  • 90°, 135°, and 180° bases designed for concrete or steel installations
  • Attaches to posts using our 95CBL silicon
  • Galvanized and powder coated for corrosion resistance

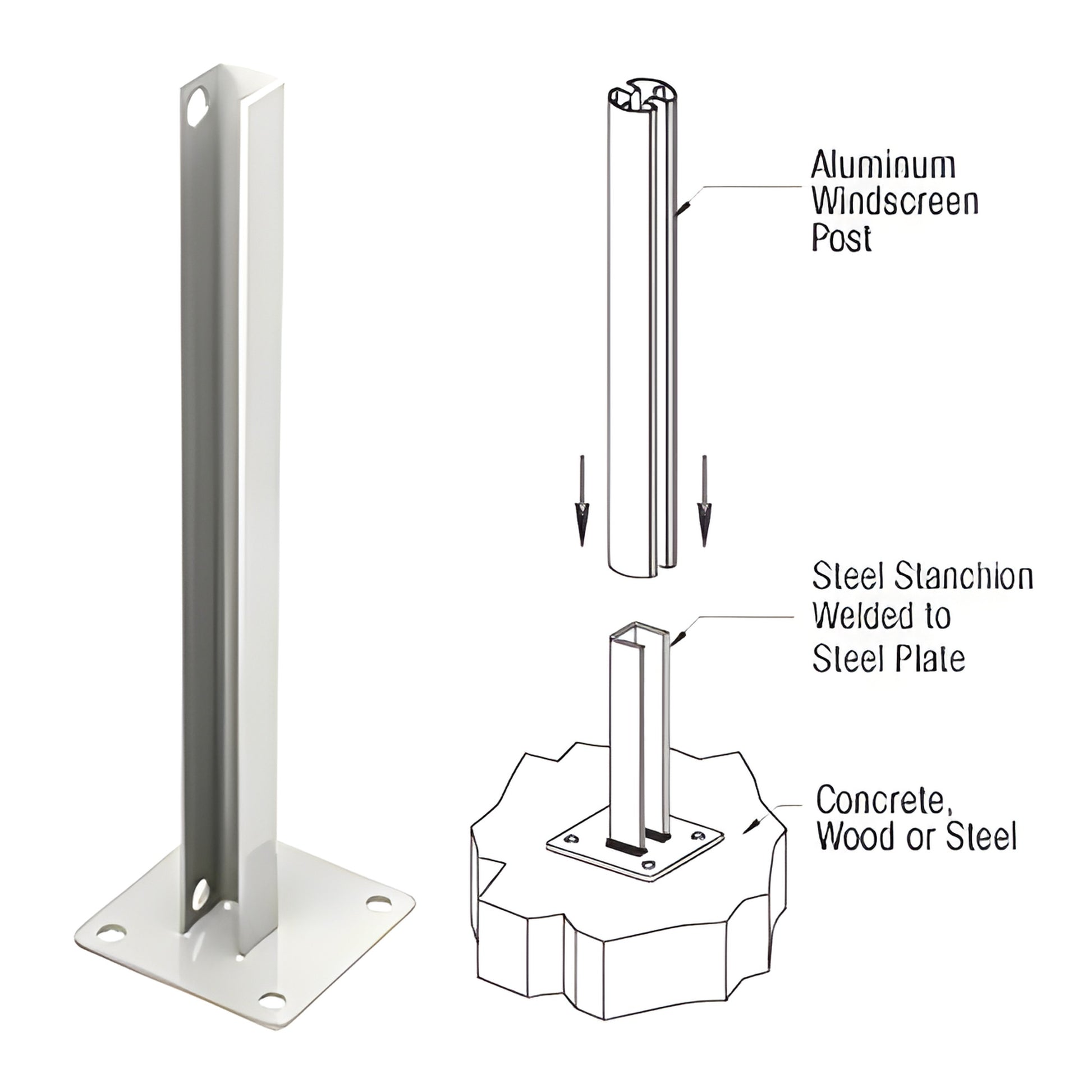

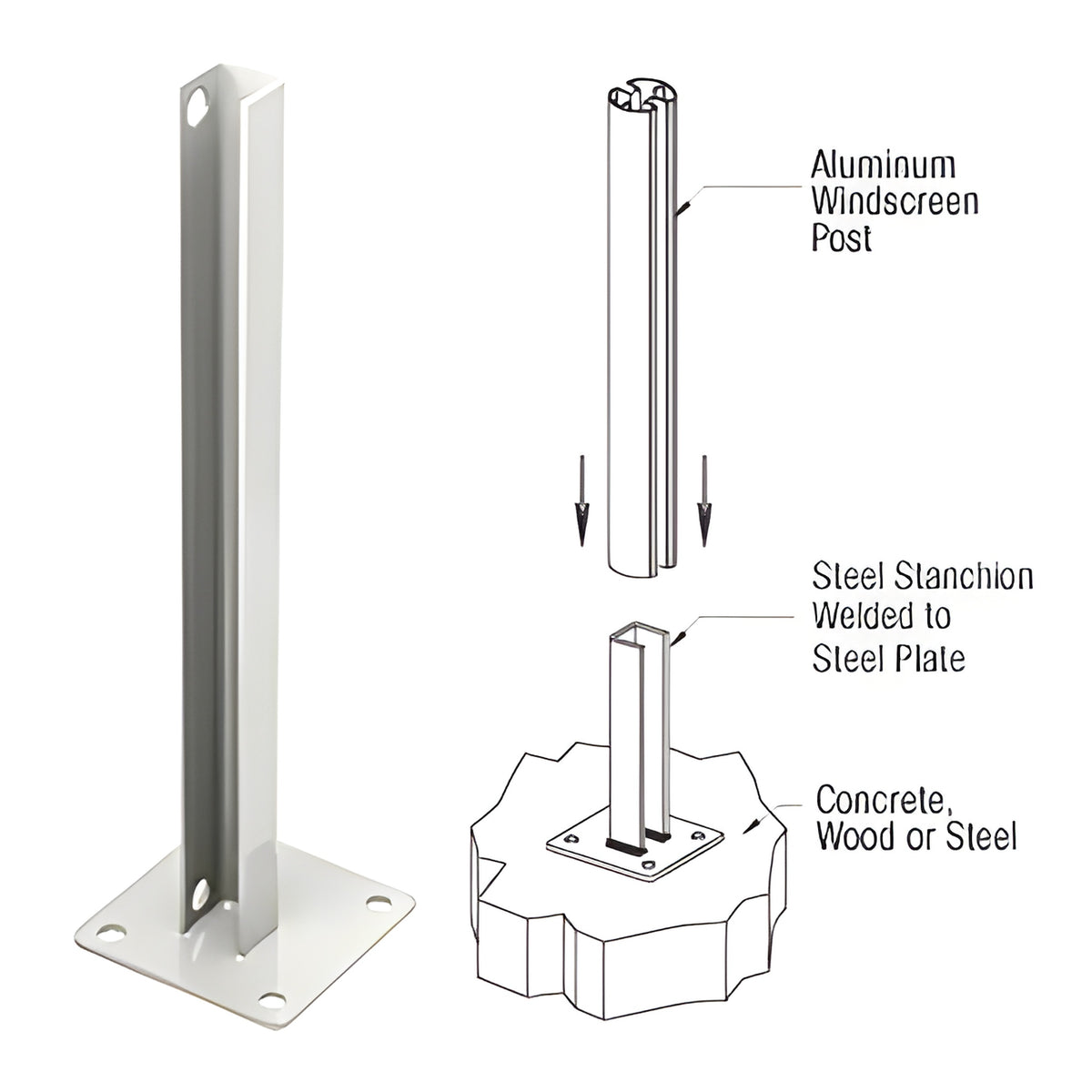

CRL Welded Steel Stanchions (SKU: PSB2CW) are surface-mount stanchions engineered for use with our aluminum posts. Each stanchion is welded to a steel base plate and powder coated to match CRL posts and bottom rails for a consistent, durable finish.

Stanchions are sold individually and sized to accommodate different post heights up to 72". Each stanchion includes one moisture barrier gasket. Choose from multiple factory-applied color options for a tailored look.

Key features & differentiators:
  • Multiple base angles (90°, 135°, 180°) for flexible concrete or steel installations
  • Galvanized plus powder coat for long-lasting corrosion protection
  • Includes moisture barrier gasket for improved sealing
  • Painted-to-order finishes for color matching (non-refundable)

Product Warning:

All ARS/AWS products are painted to order and are non-refundable or returnable.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs or complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.


Order the PSB2CW welded steel stanchion today to match your aluminum posts and ensure a corrosion-resistant, surface-mount installation.

Specifications

Engineering & Test Reports
AWS Report August 2025
