Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with monitor settings.
CRL
CRL Small Brushed Stainless Glass-to-Glass Shower Door Hinge
CRL Small Brushed Stainless Glass-to-Glass Shower Door Hinge
Regular price
$74.61 CAD
Regular price
Sale price
$74.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UV6260
Shipping Weight: 1.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

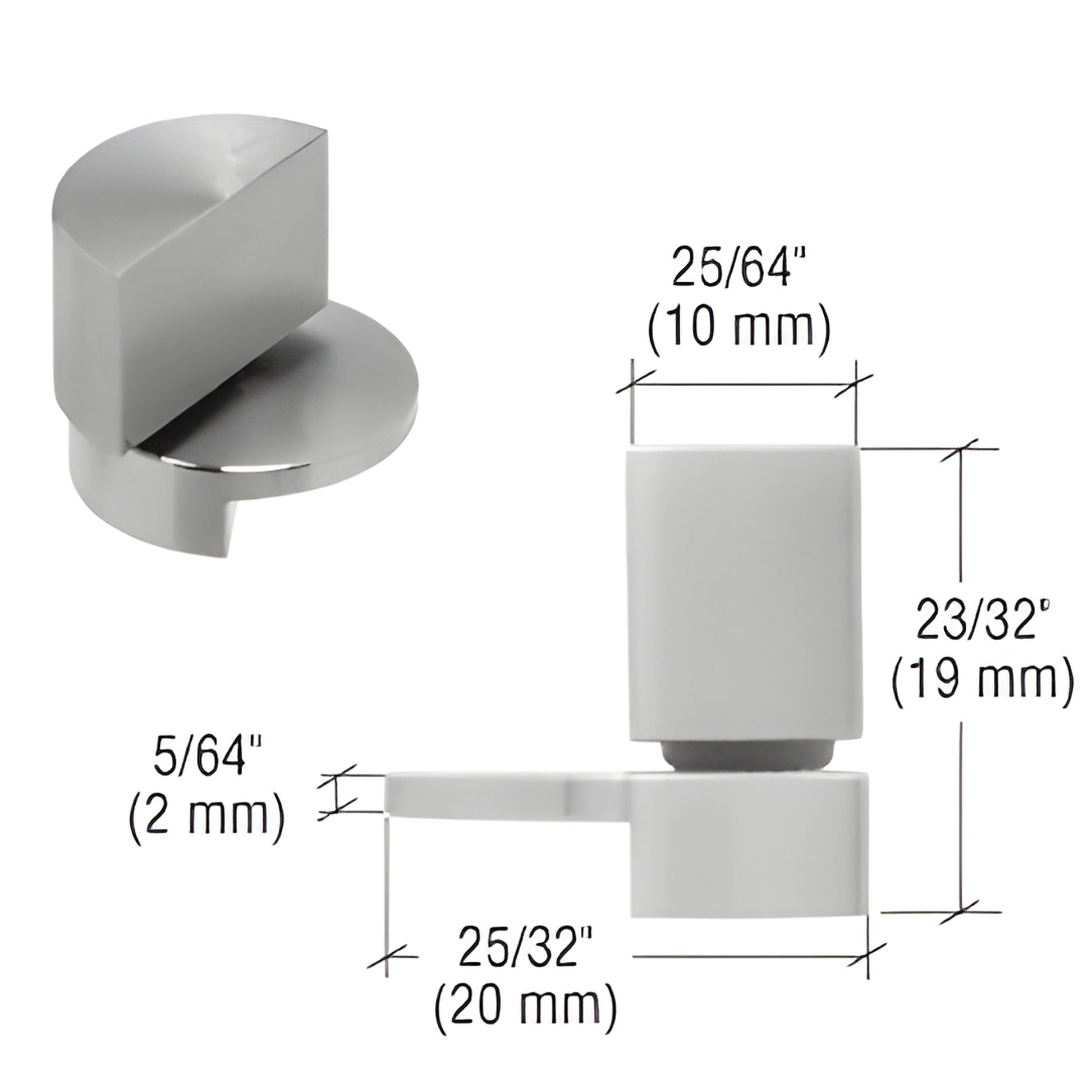

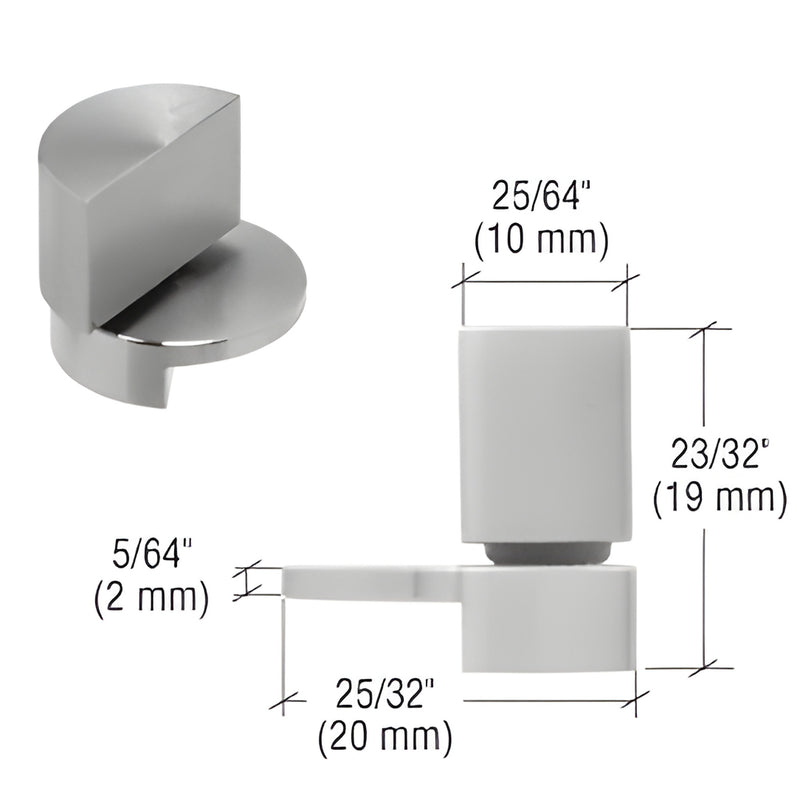

Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2
Height
23/32 in. (18 mm)
Material
Stainless Steel
Maximum Weight Capacity
22 lbs. (10 kg)
Width
25/64 in. (67 mm)
Wrist Circumference
1/2 in. (12 mm)
Overview
- Designed for inset doors
- Fabricated from stainless steel, brushed finish
- Fits glass up to 1/2" (12 mm)
- Not Available in Europe (10 kg)
- Not Available for Sale in Germany
CRL's UV Glass-to-Glass Hinges (SKU: UV6260) are engineered for all-glass showcase and display cabinet applications. This two-part top-and-bottom hinge system bonds to inset doors and supports up to 1/2" (12 mm) glass. The bottom hinge features a threaded pin for quick door installation or removal after bonding. Minimum order: one pair (top and bottom).
Key differentiators:
- Stainless steel construction with brushed finish for a professional display look
- Threaded pin bottom hinge for easy removal and maintenance
- Designed specifically for inset glass doors and showcase applications
Notes: 1/4" (6 mm) total height glass deduction (1/8" (3 mm) per side). Width deductions depend on desired gaps and any hardware clearance required.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order UV6260 now to outfit your glass showcases with durable, brushed stainless steel inset hinges — contact CRL Customer Service to confirm availability and shipping.
Specifications
Cleaning & Maintenance
