- Angled to Provide Lateral Support
- Accommodates Up to a 40" (1.02 m) Vertical Suspension from Structure
- Provides 'Fine-Tune' Adjustment
The

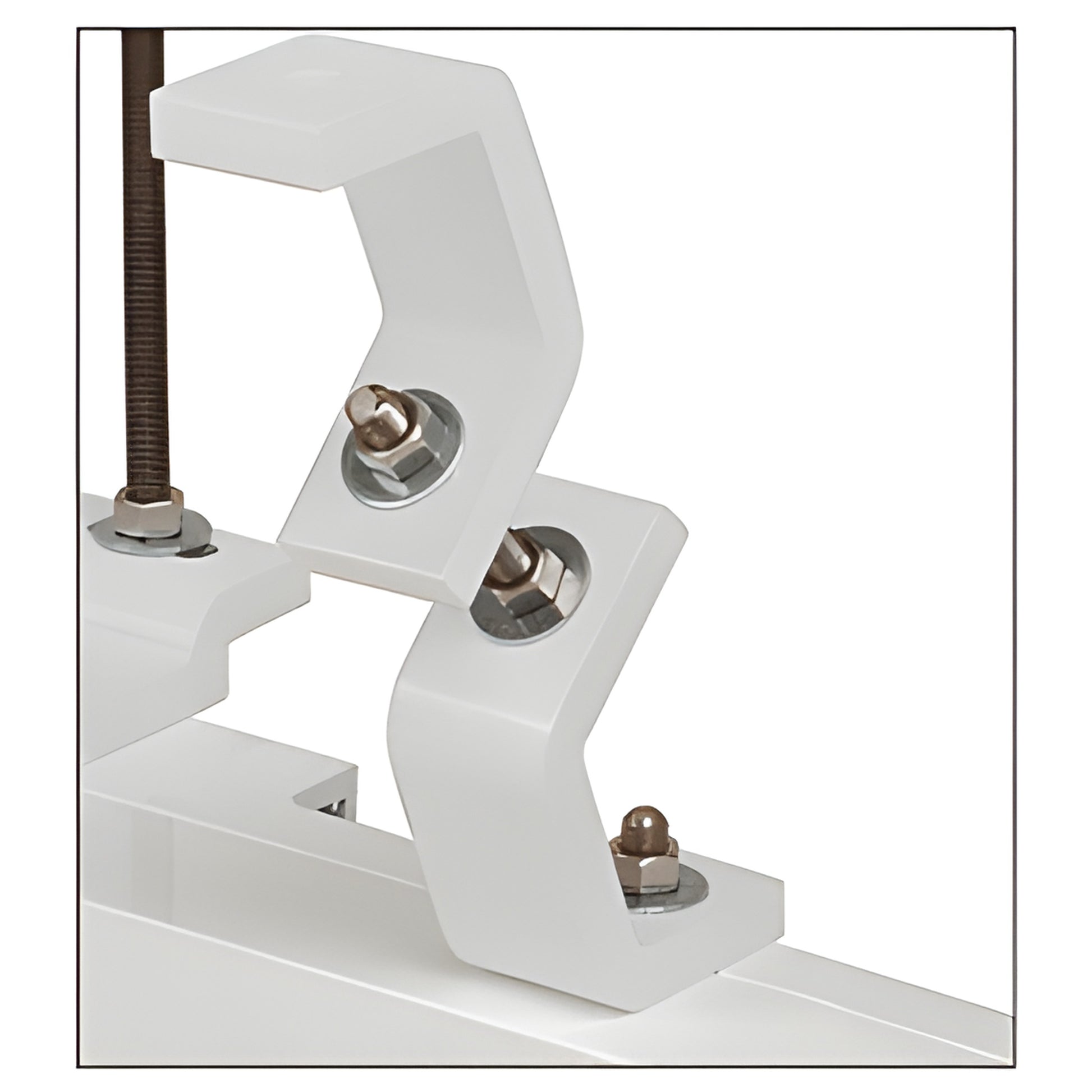

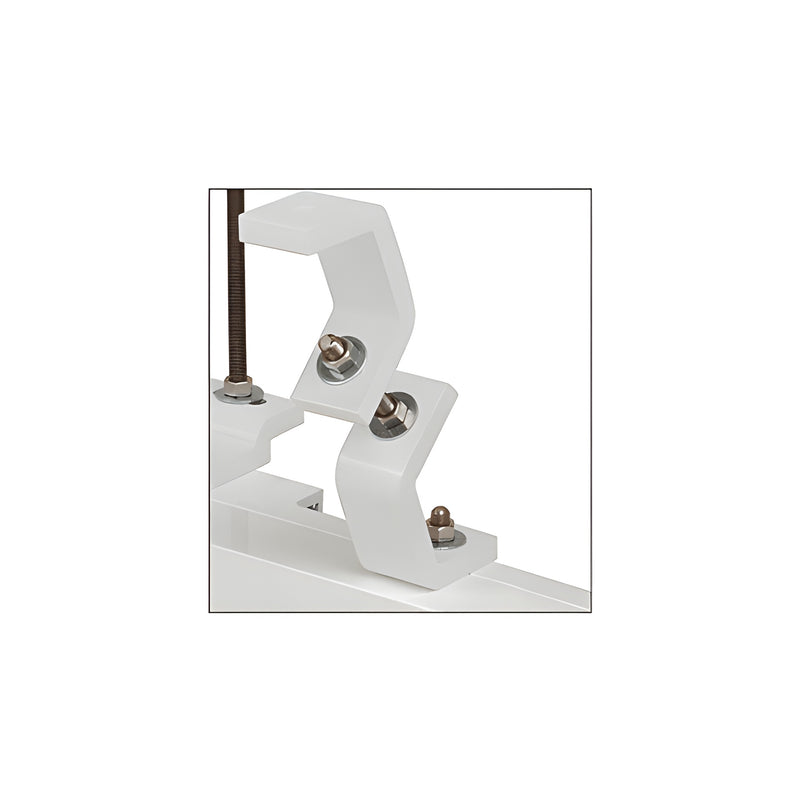

SPS Angled Support Assembly
is used to provide lateral support when the mounting substrate is more than 6" (152 mm) from the top of the SPS Overhead Track. Each set consists of a steel Upper Angled Mounting Bracket, an aluminum Lower Angled Mounting Bracket, one 1/2"-13 x 55" (1.40 m) long Suspension Rod, one 3/8"-16 x 1-1/4" (31.7 mm) Track Mounting Bolt, five 1/2"-13 Hex Nuts, five Flat Washers, and two Lock Washers.
The Upper Mounting Bracket requires a single fastener (not supplied) to attach it to the substrate, or if mounting to steel, it can be welded. Consult a structural engineer for recommendation.
NOTE
Must be used in conjunction with CRL Cat. No. 90TSX1
Extended Support Assemblies
to stabilize the entire SPS Overhead Track.
Product Warning
STRUCTURAL DISCLAIMER
- All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
