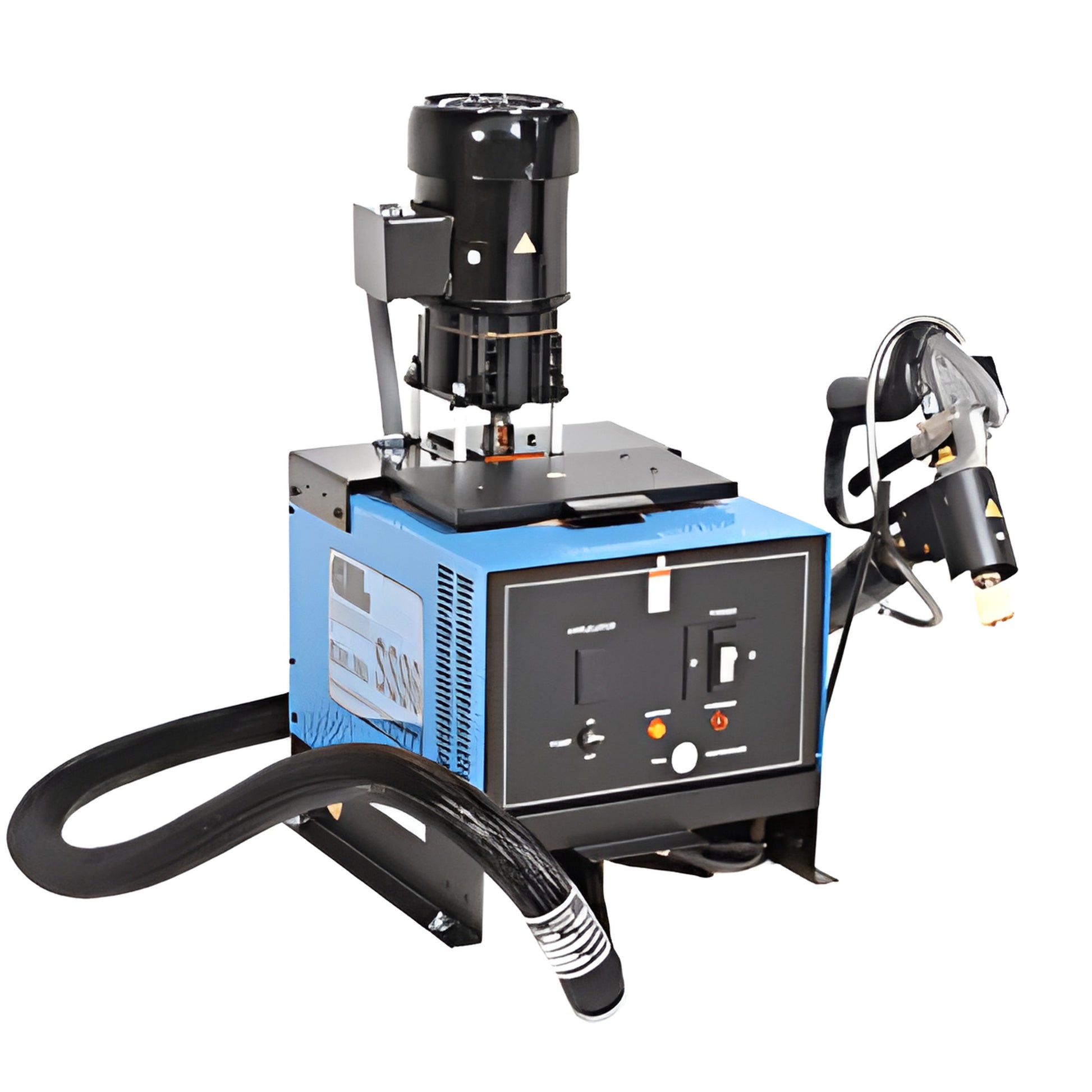

CRL SS96 Hot-Melt Butyl Sealant Gun System

• Efficient machine for insulating glass fabrication and IG sealant application
• Dispenses CRL30703 Hot Melt Butyl cakes
• Includes 8' (2.4 m) flexible heated hose and lightweight handgun with swivel and trigger lock
• Quiet, low-maintenance design — our most popular model (Cat. No. SS96)

The CRL Hot Melt Butyl Gunning System (Cat. No. SS96) is a compact, versatile hot-melt butyl dispensing system optimized for insulating glass (IG) fabrication. Its unique pumping action eliminates entrapped air in the sealant, improving bead consistency. The pump holds a 10 lb. (4.53 kg) tank and operates from 100°F to 425°F, allowing CRL Hot Melt Butyl cakes to be added while gunning. An 8' flexible hose with variable 350°–450°F temperature control connects to a lightweight heated handgun featuring a swivel and trigger lock. The SS96 does not use compressed air, runs quietly, and its simple mechanical and electrical systems mean fewer moving parts, less downtime, and lower maintenance.

ELECTRICAL
Voltage - 115 VAC, 60 Hz with ground
240V models available on special order
Wattage - 1265 Watts
Motor Rating - 1/6 hp, gearbox
38 rpm output
Warm-up Time - 45 to 60 minutes

FUNCTIONAL
Melt Rate - 8 lbs. (3.6 kg)/hour
Pump Output Rate (Maximum) - 40 lbs. (18.1 kg)/hour
Tank Temperature Range - 100–425°F (37–217°C)
Tank Capacity - 10 lb. (4.5 kg)
Gun/Hose Temperature Range - 350–450°F (177–232°C)
Shipping Weight - 120 lbs. (54 kg)

Product Warning:
Read the owner's manual and all manufacturer's warnings before using this machine. The material dispensed can exceed 400°F and can cause severe burns to skin and eyes. Follow all safety precautions to prevent operator injury.

For reliable hot melt butyl dispensing in IG fabrication, choose the SS96 — contact us to order or request a quote.
