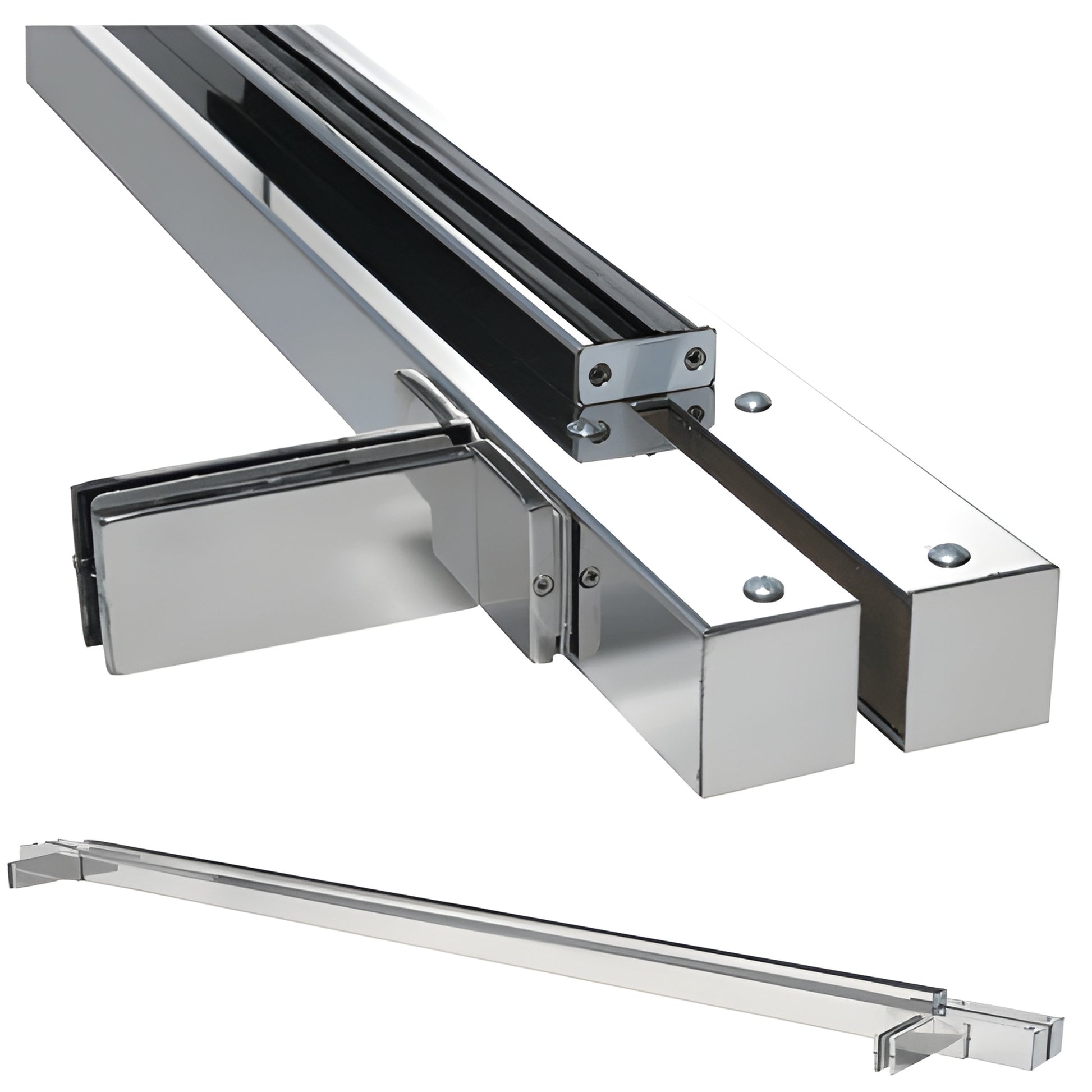

CRL Stainless Floating Header & Fin Brackets for Single Glass Door

• Adds rigidity and helps stabilize your opening for all-glass entrances
• Only available on special order
• Available for glass-to-glass or glass-to-wall installations, with or without overhead concealed door closers
• Several stock architectural finishes available; custom finishes available as well
• Each floating header is customized to your project requirements

CRL Floating Headers With Fin Brackets (SKU: FH4FPSCS) were developed to add rigidity and reduce deflection in all-glass entrances caused by wind, stack load pressure, or impacts. These floating headers support single- and double-door installations and can be customized for glass-to-glass or glass-to-wall applications. Configurations include custom lengths and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers. Header dimensions: 4" x 1-3/4" (102 x 44.5 mm). For pricing, finish options, or custom configurations, contact the CRL Technical Sales Department.

Product Warning:

STRUCTURAL DISCLAIMER - Customers using this product must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and must ensure compliance with local, state, and federal regulations, safety factors, and correct selection of fixing materials and procedures.

If the transom weight above the header exceeds 100 lbs. (45.4 kg), the transom must be supported from the ceiling to prevent header bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings, or contact our Technical Sales Department for assistance.

Stainless Steel Advisory:

Specify SKU FH4FPSCS and contact CRL Technical Sales to request a quote or place a special order for custom floating headers for glass doors.
