CRL Double-Door Electromagnetic Lock for Access Control (Unmonitored)
CRL Double-Door Electromagnetic Lock for Access Control (Unmonitored)
Regular price
$696.30 CAD
Regular price
Sale price
$696.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MLST1202U
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Depth
1 5/8
Body Height
2 15/16
Body Length
21
Current Draw
12 Volt Current Draw: 1000mA, 24 Volt Current Draw: 500mA
Finish/Color
Brushed Aluminum
UL Listed
Yes
Volt
12/24 Volts DC
Overview
- Aluminum Housing with Brushed Aluminum Finish
- Limited Warranty
- Single or Double Magnets
- UL Listed
These Standard Electromagnetic Locks feature rugged aluminum housings with a brushed finish for durability and a professional appearance. Designed for interior door security, they have no moving parts, are maintenance-free, and deliver long-lasting holding performance—ideal for access control and commercial door installations.
MLST1200U SINGLE MAGNET
Holding Force: 1200 lbs (544 kg)
Dual Voltage: 12/24 VDC
12V Current Draw: 500 mA
24V Current Draw: 250 mA
Standard wiring — Unmonitored
L = 10-7/16" (265 mm) · H = 2-15/16" (75 mm) · D = 1-5/8" (41 mm)

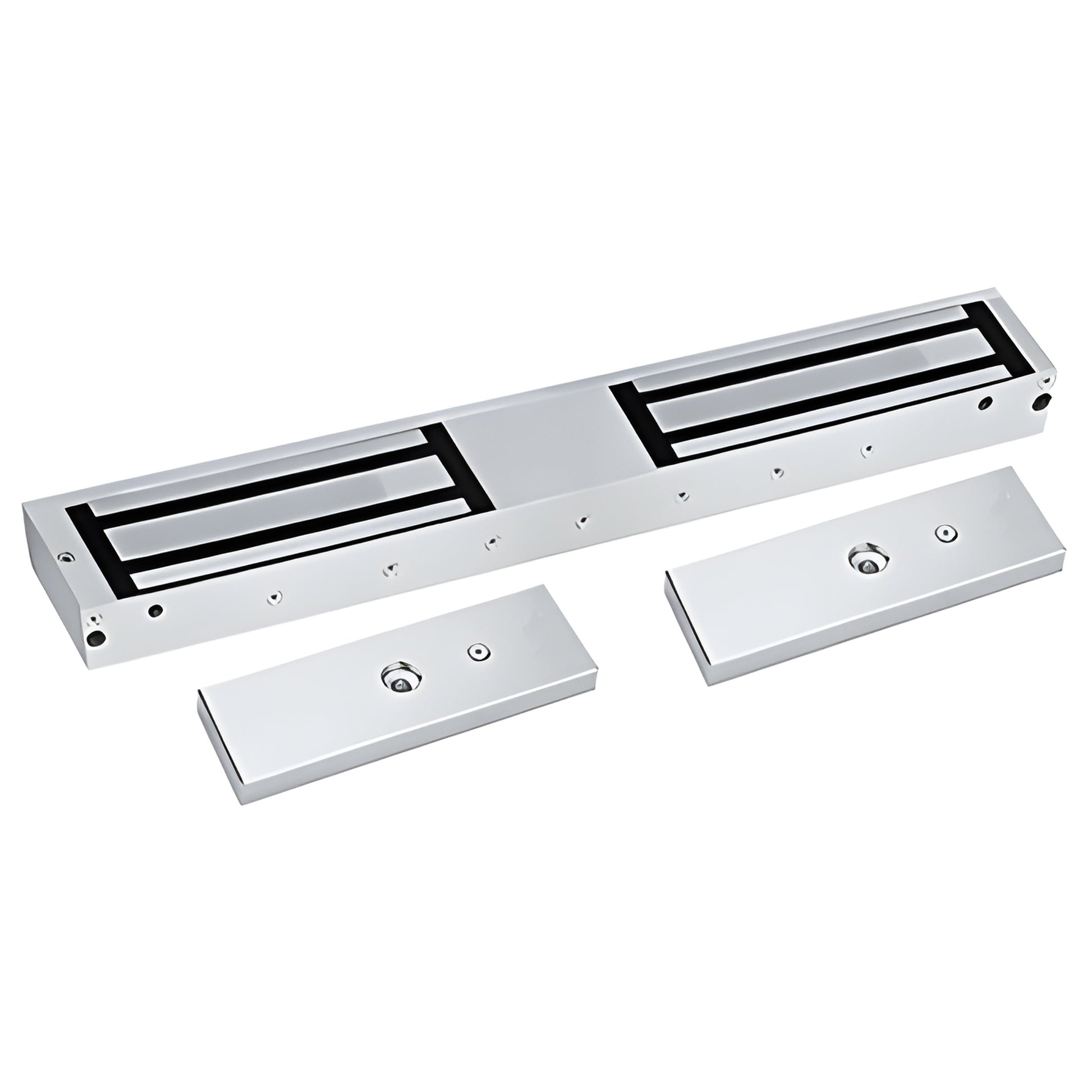

MLST1202U DOUBLE MAGNET (SKU: MLST1202U)
Holding Force: 1200 lbs (544 kg)
Dual Voltage: 12/24 VDC
12V Current Draw: 1000 mA
24V Current Draw: 500 mA
Standard wiring — Unmonitored
L = 21" (534 mm) · H = 2-15/16" (75 mm) · D = 1-5/8" (41 mm)
Key Differentiators: Brushed aluminum housing for corrosion resistance and aesthetics; no moving parts for low maintenance; available as single- or double-magnet configurations for narrow or wide door applications; UL listed for safety compliance.
Product Warning:
Limited Warranty
Need help choosing between single- or double-magnet models for your door? Contact our sales team to confirm fit and availability.
