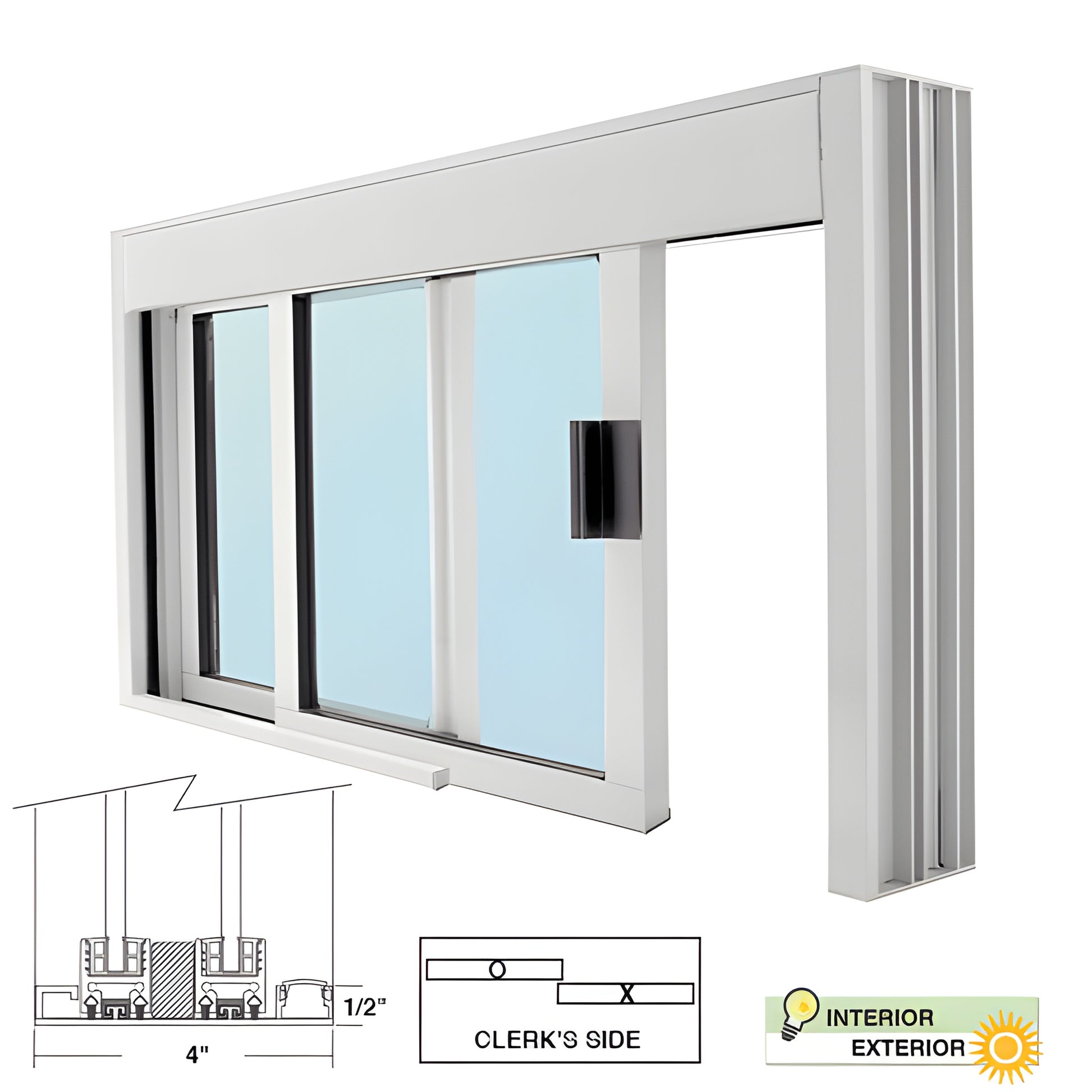

• Deluxe service window DW48360XGA - satin-anodized aluminum, sliding 1/4" tempered glass, self-latching handle, fits 48x36.
1 1

CRL

CRL Standard Size Manual DW Deluxe Service Window, Glazed with Half-Track

CRL Standard Size Manual DW Deluxe Service Window, Glazed with Half-Track

$2,299.53 CAD
$2,299.53 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DW48360XGA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Anodized
Frame Depth
4 in. (101.6 mm)
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Usage
Interior,Exterior

Overview

  • Ships factory-glazed with 1/4" clear tempered glass
  • OX clerk side (X = sliding panel)
  • Self-latching handle for secure operation
  • Popular 47-1/2" W x 35-3/4" H frame fits 48" x 36" opening (SKU: DW48360XGA)
  • No track under sliding panel for unobstructed counter passage
  • Manual open / manual close — heavy-duty manual deluxe service window
  • Optional keyed lock assembly: DWKEYLOCK (sold separately)

CRL standard-size Manual Deluxe Service Windows ship fully assembled, either ready to glaze or factory-glazed and ready to install. Built for heavy-duty commercial applications such as drive-thru or walk-up service windows, they also suit interior openings that require enhanced security and durable performance.

Standard models are available in Satin Anodized or Duranodic Bronze finishes. Choose half-track (no track under the sliding panel for clear counter passage) or stainless steel step-sill with water dam for exterior installations. CRL also offers custom versions of these high-quality service windows.

Product Warning:

Heavy-duty service windows; not intended to serve as the primary building seal in severe weather conditions.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before ordering, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor.


Purchase or request a quote for the DW48360XGA manual deluxe service window today.
