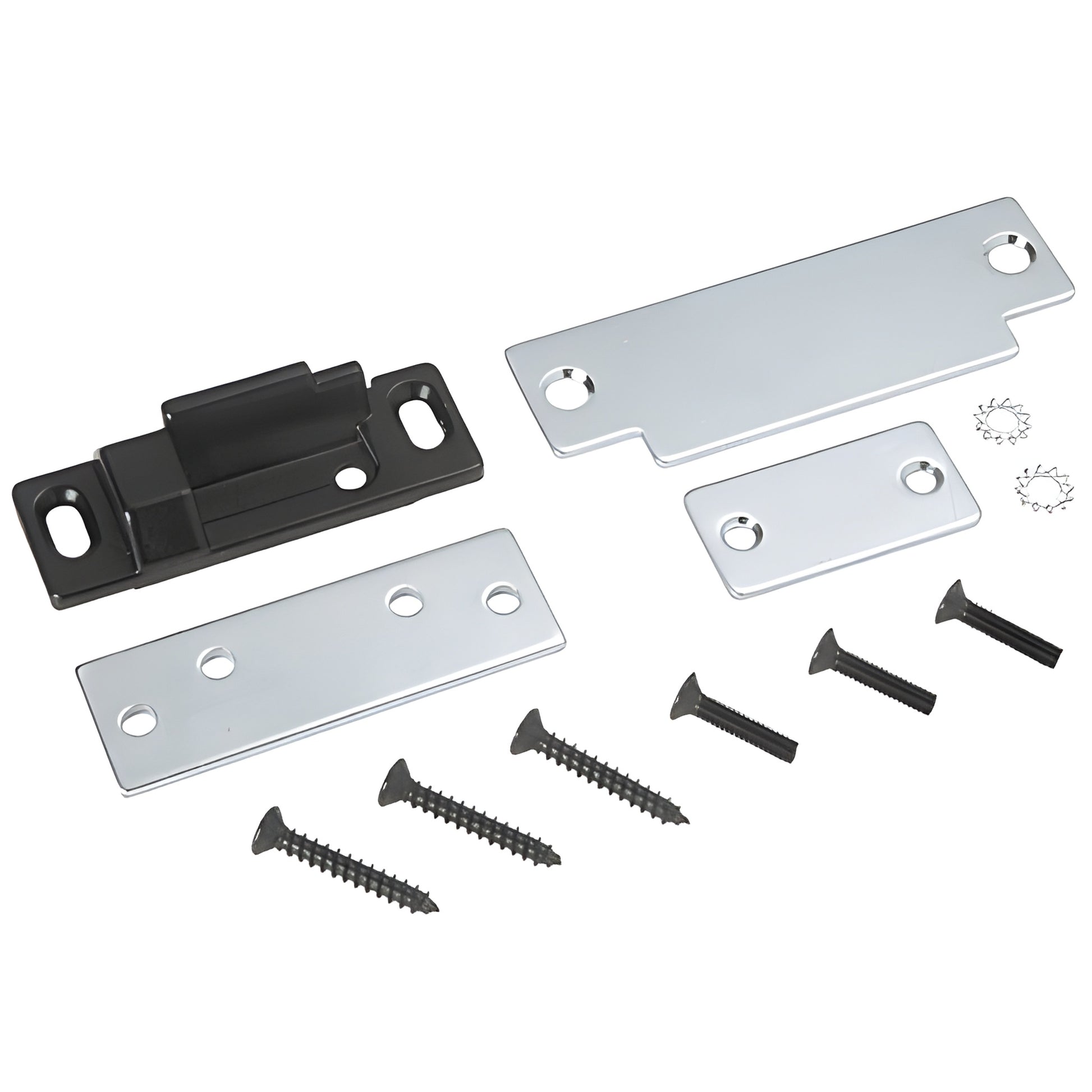

CRL DL950 Rim Panic Handle Replacement Strike Kit

• For use with medium and wide stile aluminum doors
• Painted carbon steel and satin stainless steel finishes available
• Minimum force releases locking mechanism

CRL Push-Pad Rim Panic Devices (SKU DL95STR1KE) are rim exit devices designed for single doors or double doors with a mullion and work especially well as a panic exit device for aluminum doors. Minimum required door stile width is 4-1/4" (108 mm). Units are fabricated to 34-7/8" (886 mm) overall length for ready installation on 36" (914 mm) wide doors and may be cut down to fit doors as narrow as 30" (762 mm). A dogging feature defeats the locking action for business-hour operation. A blade strike is included with each exit device.

Cat. No. DL950SS satin stainless steel panic device provides a durable, attractive architectural finish; as with other finishes, internal components should not be exposed to moisture or corrosive environments.

For keyed entry, an optional Cat. No. DL911SC series (or compatible rim cylinder) is required.

Features & differentiators: pre-cut 34-7/8" length for 36" doors, field-cuttable to 30", dogging option for business hours, blade strike included, available in satin stainless steel for architectural applications — ideal as a rim panic device for aluminum doors.

Contact CRL Customer Service or order DL95STR1KE today.
