Product Details
- Precut to Size 10" Lengths
- Designed to be Installed Between Bolt Locations on Base Shoe
- Extruded Aluminum Construction
- Allows Easy Adjustment of Panels

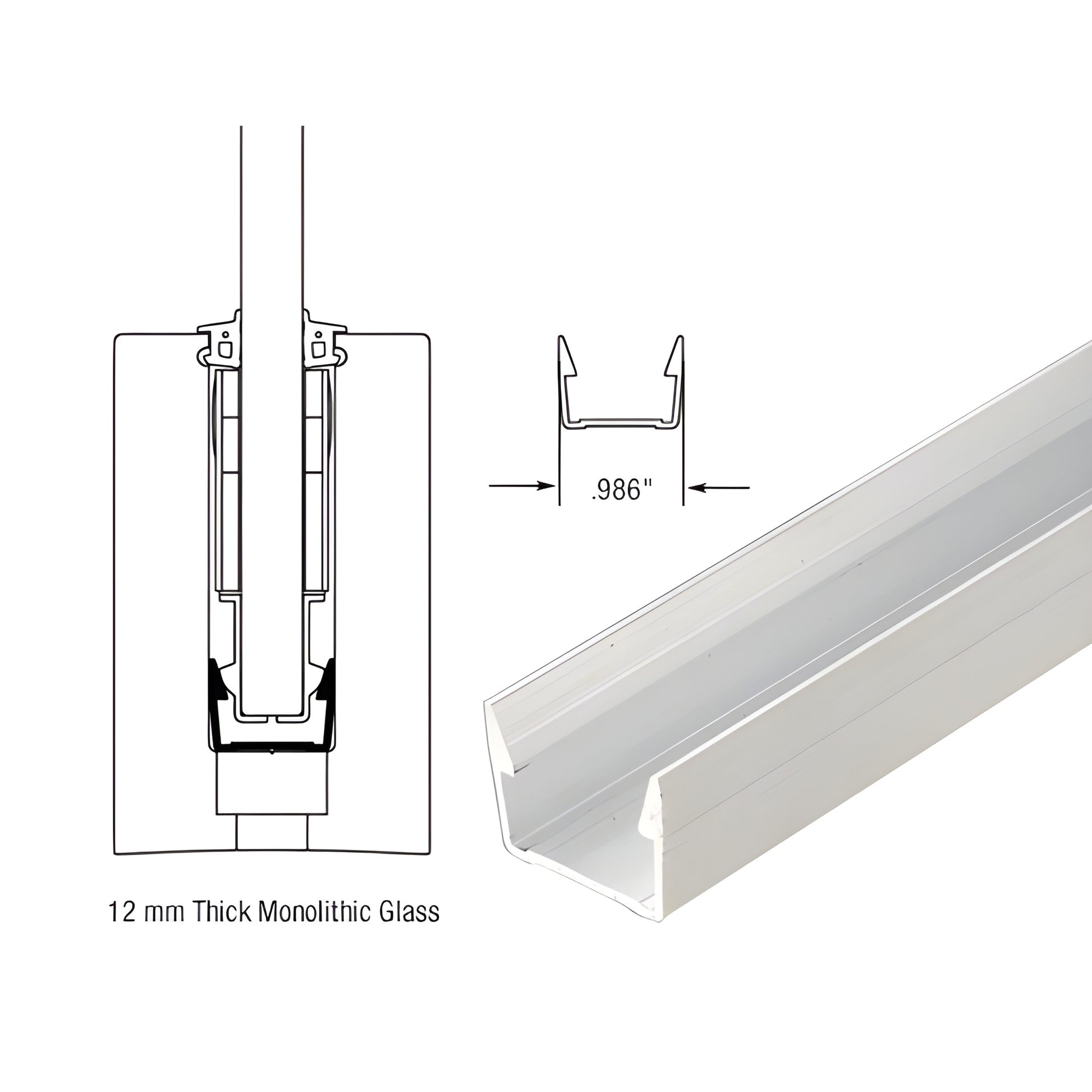

- Designed for 1/2" Thick Monolithic Glass
- U.S. Patent Numbers 8,122,654 & 8,201,366; Commonwealth of Australia Patent Numbers 2008207524 & 2012202256
The CRL TLXA Extruded Aluminum Setting Base segments are designed to allow each panel to adjust in and out to achieve a plumb railing. Insert each setting base down into the shoe between each anchor bolt head channel until it rests against the bottom surface of the base shoe.
Product Warning:
1 each TLXA12SB Setting Base required every 12" (305mm) of base shoe.
