CRL TAPER-LOC® XA 10" Setting Base for L68S Laminated

• Precut to Size 10" Lengths
• Designed to be Installed Between Bolt Locations on Base Shoe
• Extruded Aluminum Construction
• Allows Easy Adjustment of Panels
• Designed for 17mm Thick Laminated Glass
• U.S. Patent Numbers 8,122,654 & 8,201,366; Commonwealth of Australia Patent Numbers 2008207524 & 2012202256

The

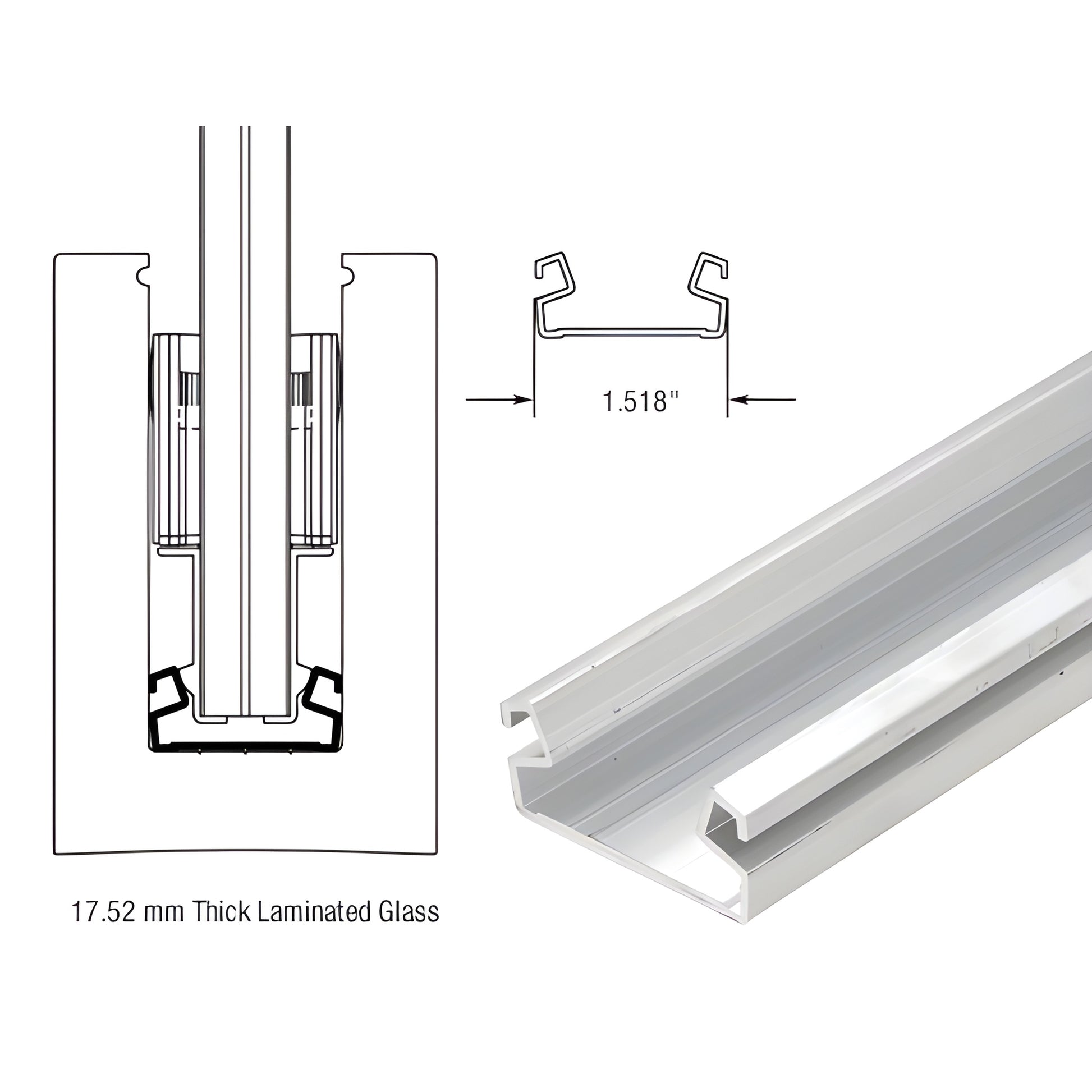

CRL TLXA Extruded Aluminum Setting Base

segments are designed to allow each panel to adjust in and out to achieve a plumb railing. Insert each setting base down into the shoe between each anchor bolt head channel until it rests against the bottom surface of the base shoe.
