CRL TAPER-LOC® XAL Adjustable Taper Set for 13/16" (20.64 mm) Laminated Tempered

• Easy Glass Angle Adjustment Up to 3/4" (19 mm)
• Compatible With Our Base Shoes and Safety Seals
• Meets and Exceeds Building Code Requirements
• Available for Use With 13/16" (20.64 mm) Laminated Tempered Glass

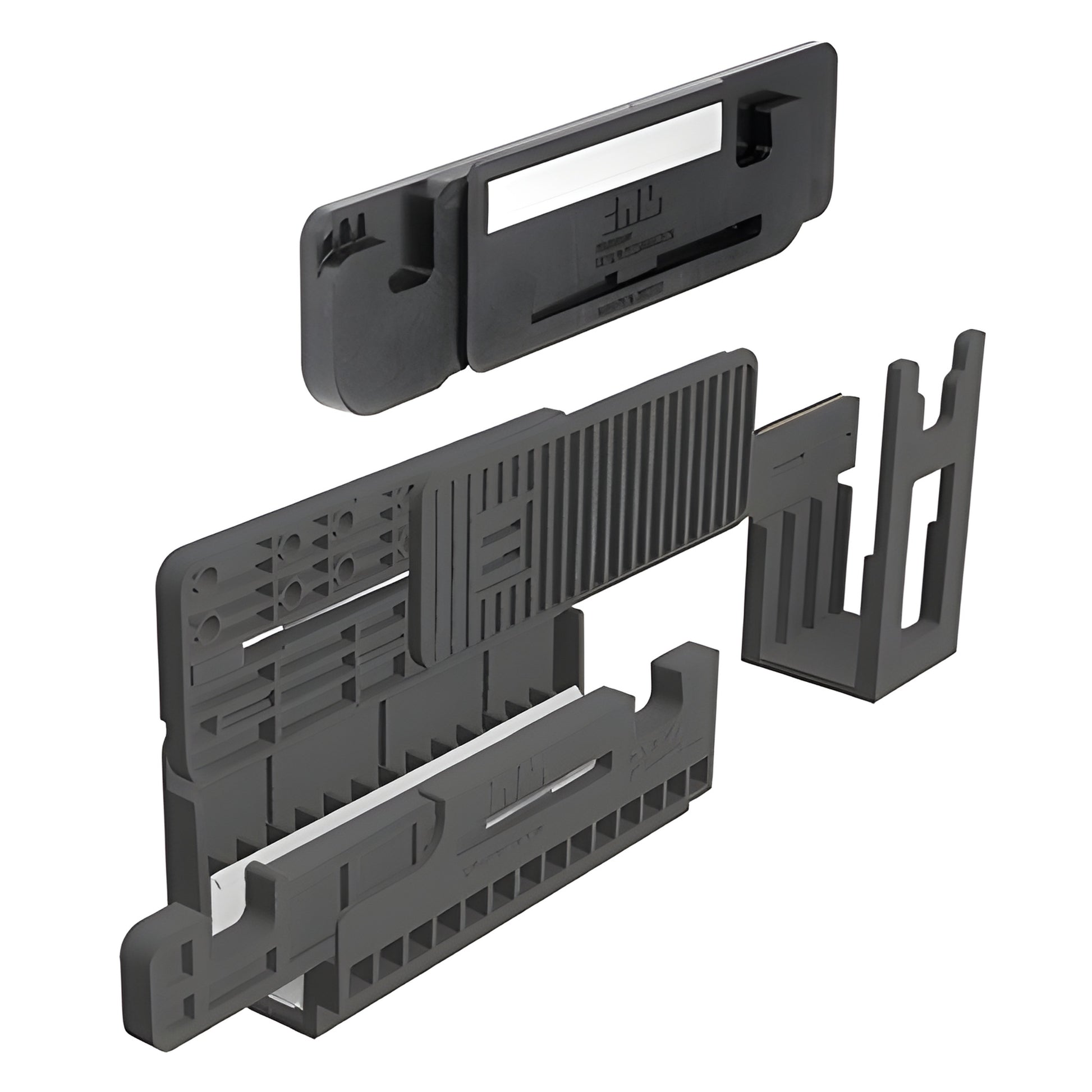

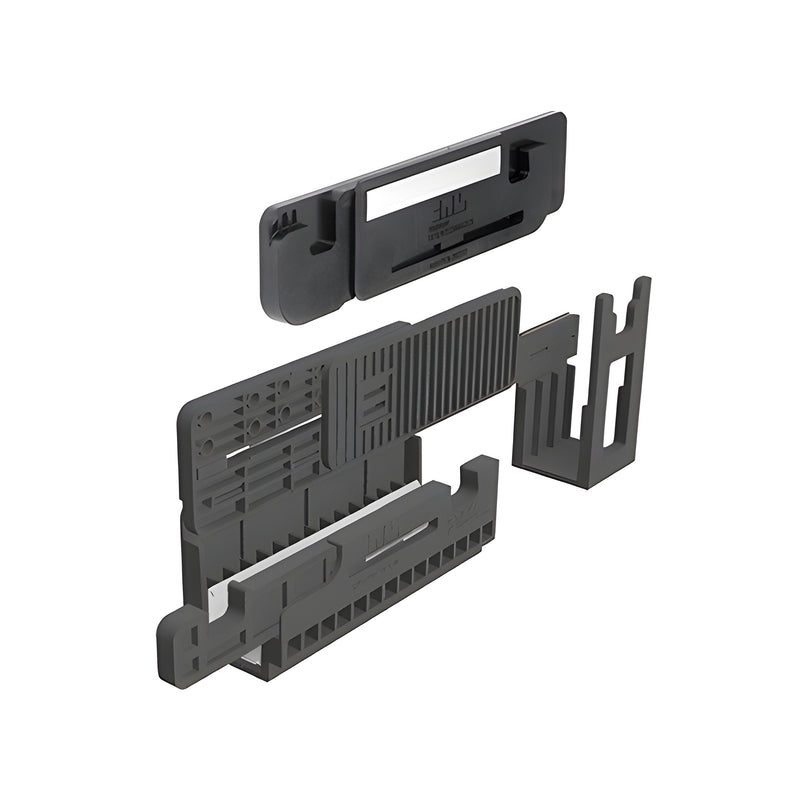

CRL's TAPER-LOC® XAL Taper Sets for 13/16" (20.64 mm) laminated tempered glass are made up of one Setting Base/Drop-Side Taper, and one Front Side Taper. Tapers are made of high-strength, reinforced engineering grade polymer, and expand in thickness when compressed together with Cat. No. TLK12 Installation/Removal Tool, mechanically locking the glass panel in the Base Shoe.

The TAPER-LOC® XAL Setting Base spaces the glass away from the Base Shoe's vertical walls at the bottom edge, allowing for glass angle adjustment. It also serves to insulate the glass panels from damage during insertion into the Base Shoe and, at the same time, center the glass in the pocket.

PANEL WIDTH and SUGGESTED TAPER-LOC® XAL SETS PER PANEL

1 Set for 6" to 14" (152 to 356 mm)

2 Sets for 14" to 28" (356 to 711 mm)

3 Sets for 28" to 42" (711 to 1067 mm)

4 Sets for 42" to 56" (1067 to 1422 mm)

5 Sets for 56" to 70" (1422 to 1778 mm)

6 Sets for 70" to 84" (1778 to 2134 mm)
