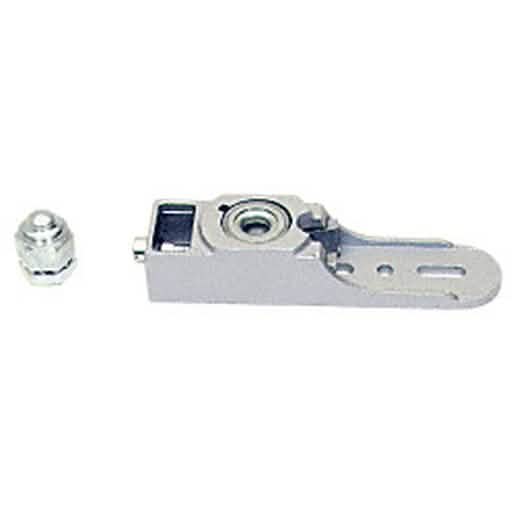

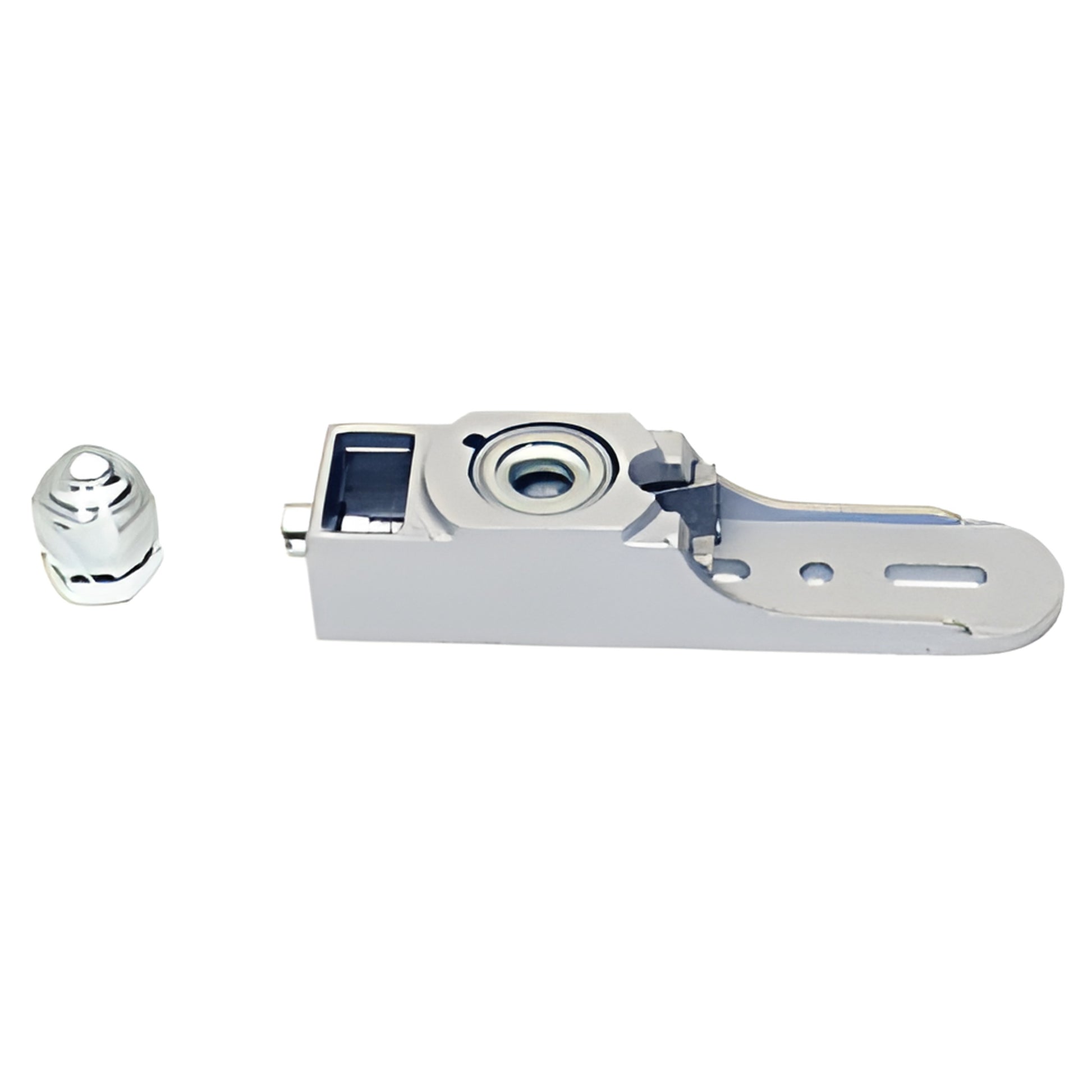

CRL Threshold Mounted Bottom Pivot Set for Use with 1-1/2" Deep Bottom Door Rail for Side-Load Applications
Item# CRL8010GE
Shipping Weight: 0.54
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.54
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Bottom Door Clearance Adjustment3/16
- Bottom Door Rail Depth1-1/2
- BrandJackson
- Door Weight150
- HandingNon Handed
- Mounting TypeFloor
- Package TypeGE
- Pivot BottomYes
- Pivot TypeCenter Hung
- Recommended Door TypeAluminum, Wood, Hollow Metal
- TypeSide-Load Arm
- GE-Type for Use with Side-Load Arms
- 3/16" (5 mm) Height Adjustment
This CRL Adjustable Bottom Pivot Set is for use with 1-1/2" (38 mm) deep bottom door rail applications. It mounts to the threshold and is intended for use with side-load applications. A 3/16" (5 mm) height adjustment is possible with the door installed, and requires an adjustment hole in the end of the door. Maximum weight capacity is 150 lbs. (68 kg).
Product Warning:
For Doors Up to 125 lbs. (56 kg).
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Installation Instructions
