Product Details
- More Holding Power
- Provides More Holding Power in 3/8", 1/2" or 5/8" (10, 13 or 16 mm) Thick Drywall and Ceiling
- Audible "Pop" Indicates Correct Install

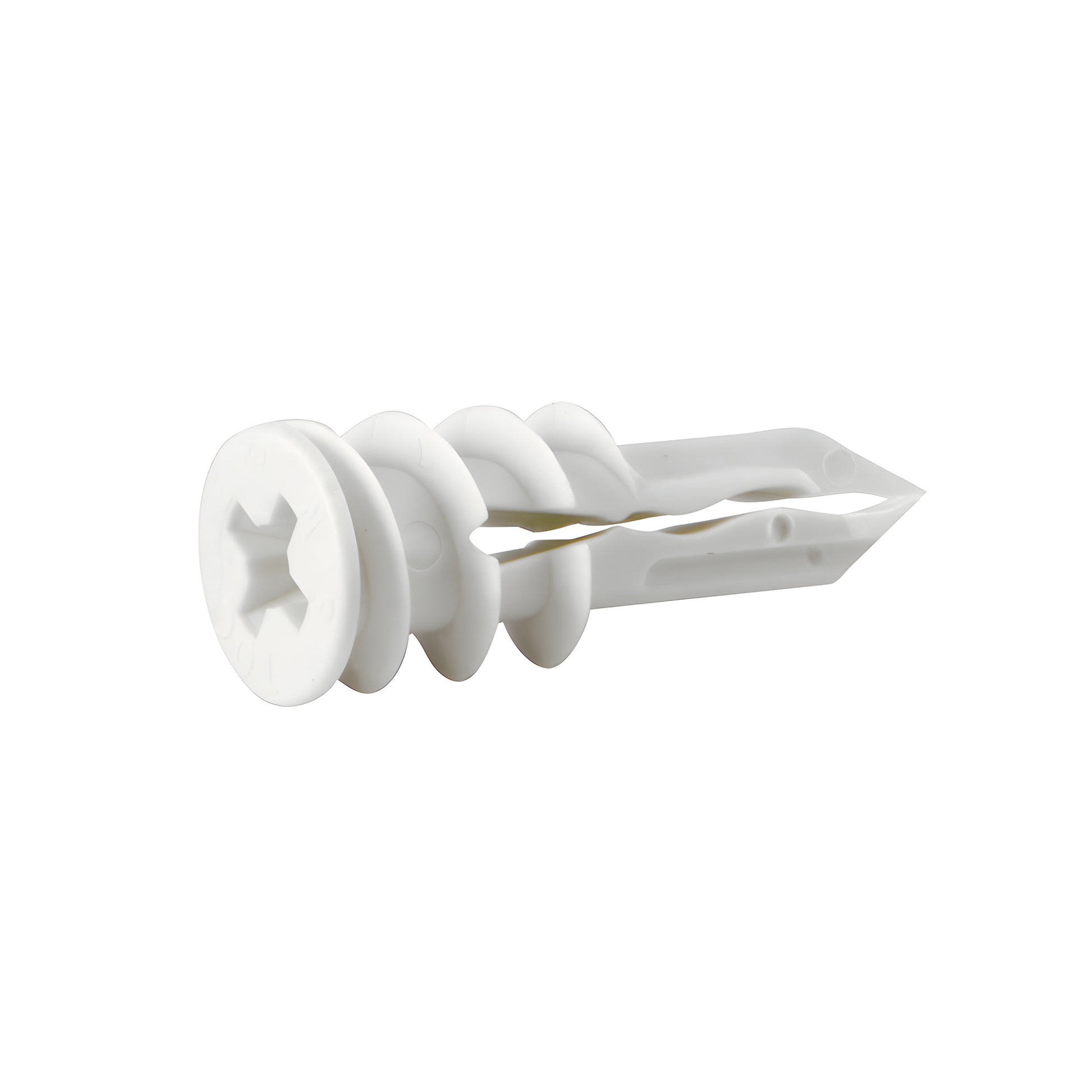

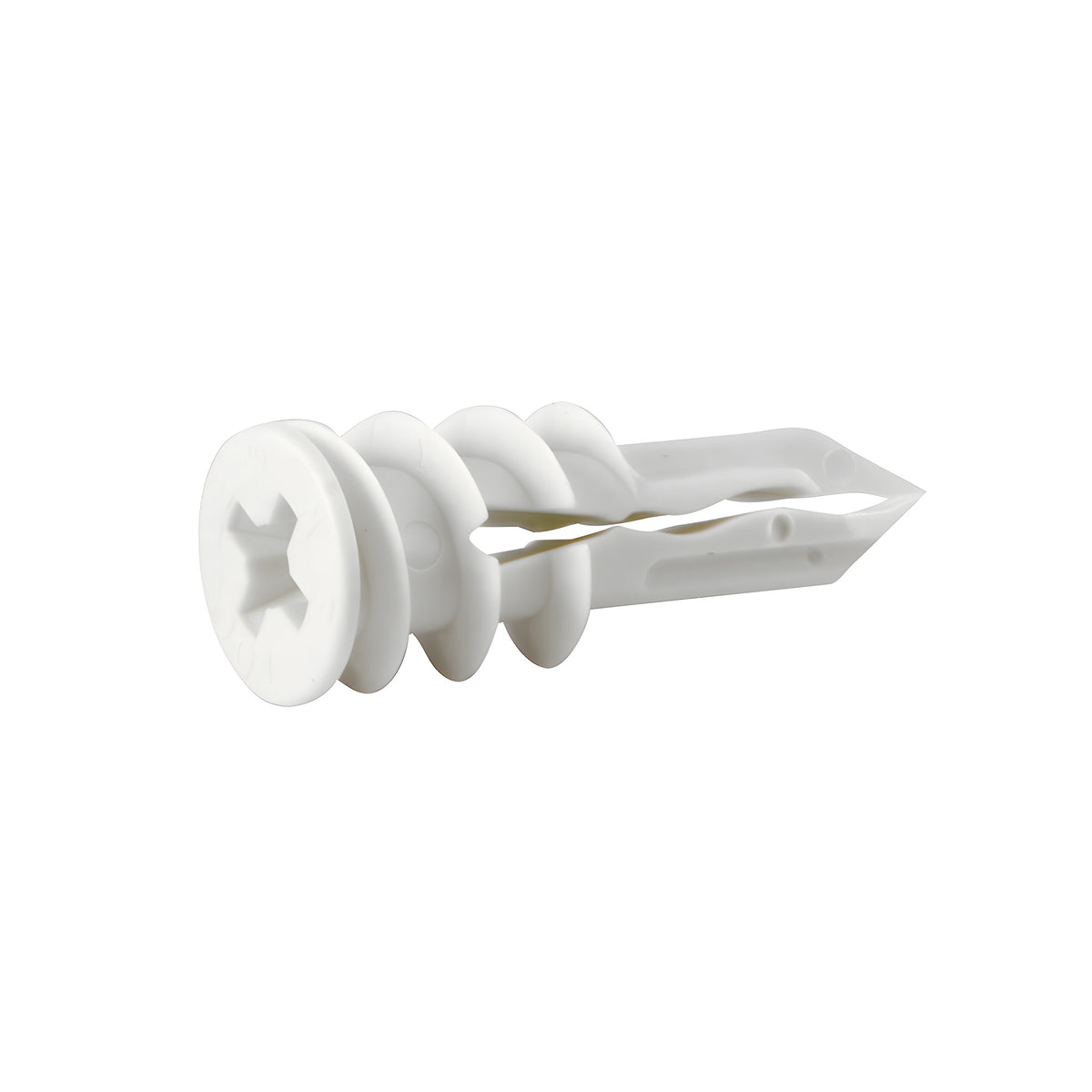

CRL Toggler® SnapSkru® Self-Drilling Anchors are designed to preserve drywall integrity at installation as well as when the item and screw are removed. These Anchors work with a range of screw sizes – MINI: #6 (recommended) to #8, and Regular: #6 to #10, #8(recommended). Screws can be backed out and changed if needed without the Anchor coming out of the wall!

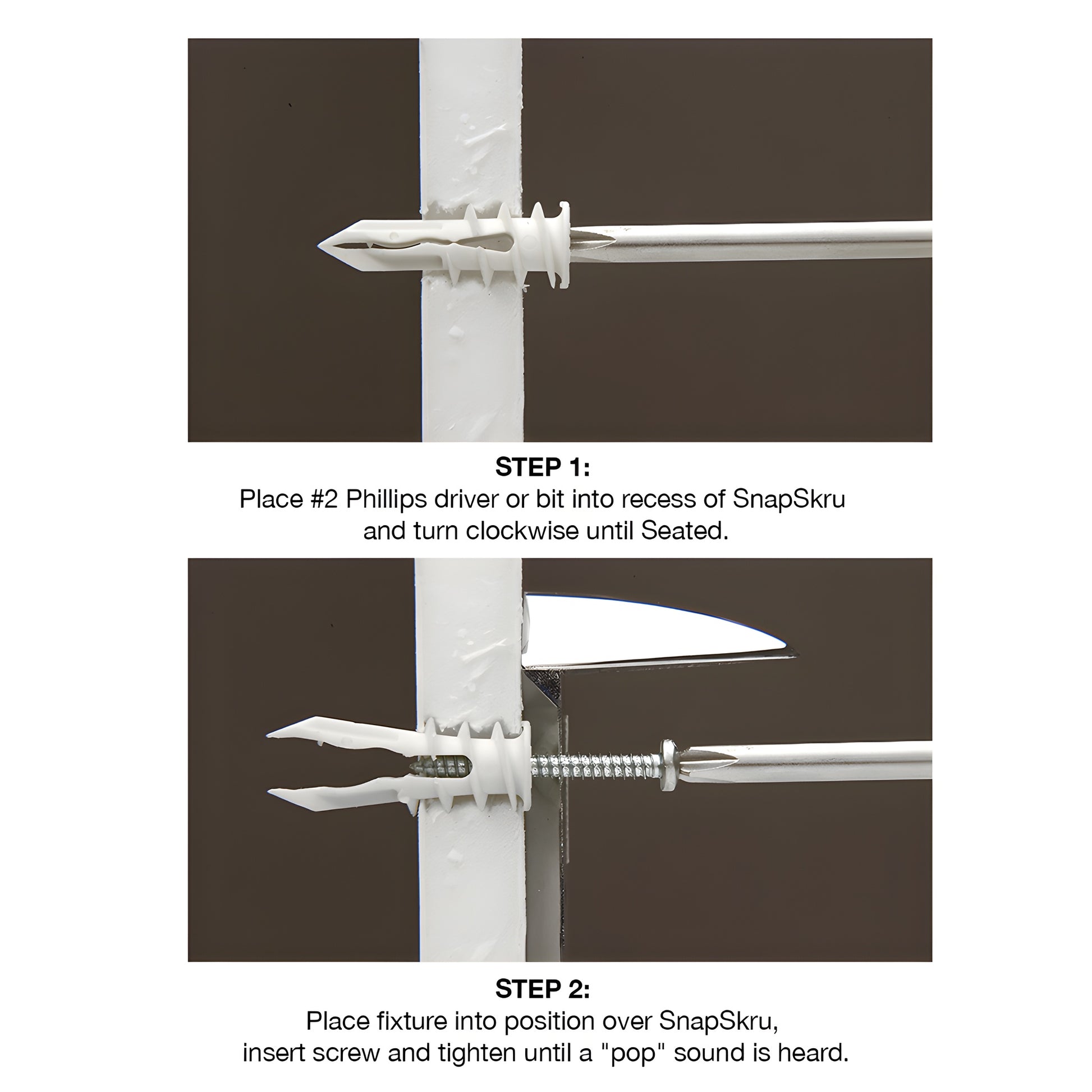

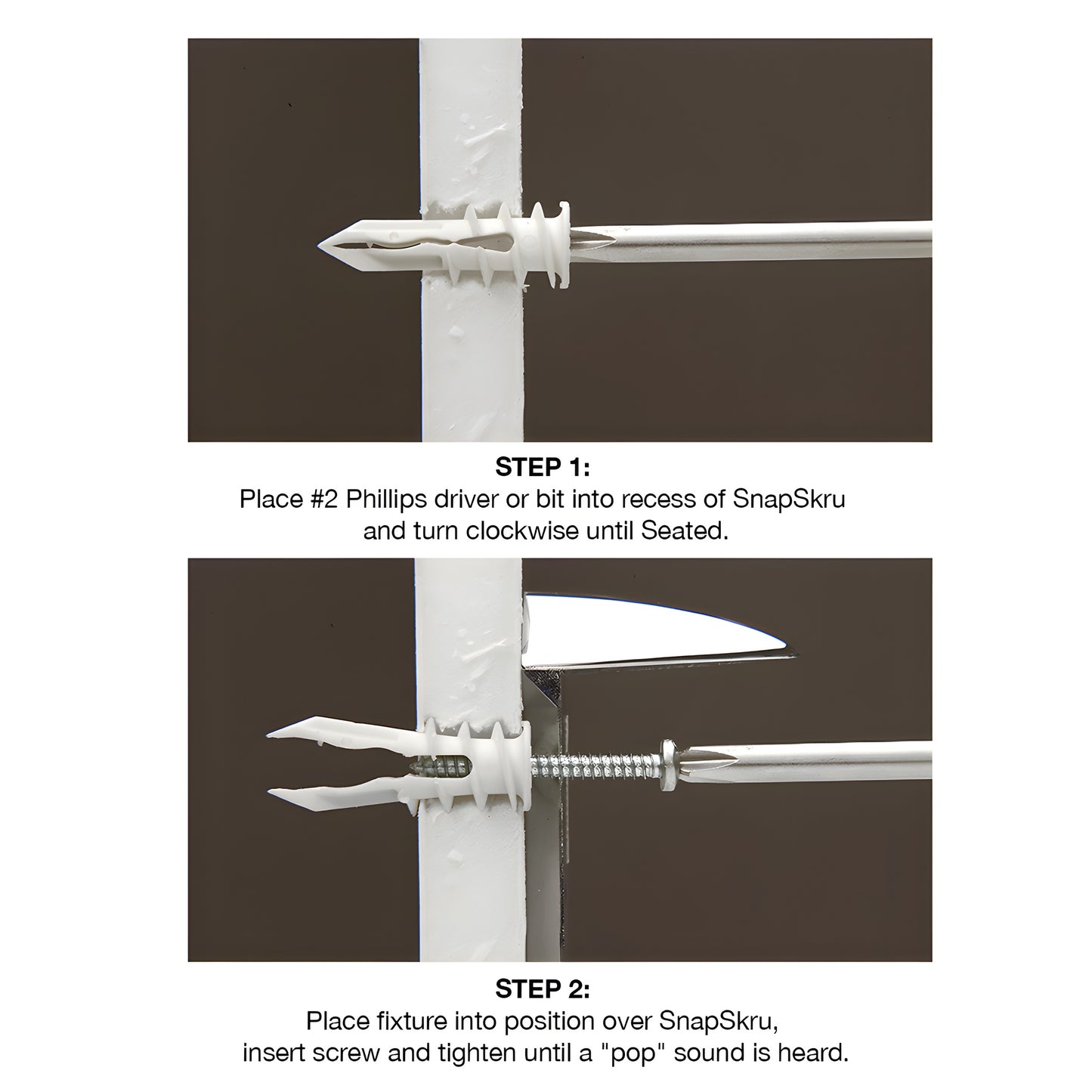

When activated with the minimum proper length screw: 1-1/4" (32 mm) for MINI and 1-1/2" (38 mm) for Regular, the Anchors open with an audible "pop", locking them in place in the wall or ceiling. They are easily installed with No. 2 Phillips screwdriver or bit, and resist vibration and shock. Maximum fixture thickness: 1/2" (13 mm) for MINI with 1-1/4" (32 mm) screw, and 3/4" (19 mm) for Regular with 1-1/2" (38 mm) screw. For thicker fixtures use longer screws.
HOLDING VALUES (ULTIMATE LOADS) - TENSILE (PULLOUT):
AnchorWallboard Thickness
3/8” (10 mm)Wallboard Thickness
1/2” (13 mm)Wallboard Thickness
5/8” (16 mm)SnapSkru® MINI57 Lbs. (25.8 kg)65 Lbs. (29.5 kg)95 Lbs. (43 kg)
SnapSkru® Regular57 Lbs. (25.8 kg)79 Lbs. (35.8 kg)135 Lbs. (61.2 kg)
Holding values are per anchor with #6 x 1-1/4" screw for MINI and #8 x 1-1/2" screw for Regular. Industry standard safe holding = 1/4 of ultimate load.
