CRL Tremco® .120" Wedge Gasket Glazing Spline

• Used in Compression Glazing Systems with Tremco® POLYshim II Glazing Tape
• 70 Durometer Extruded EPDM

This

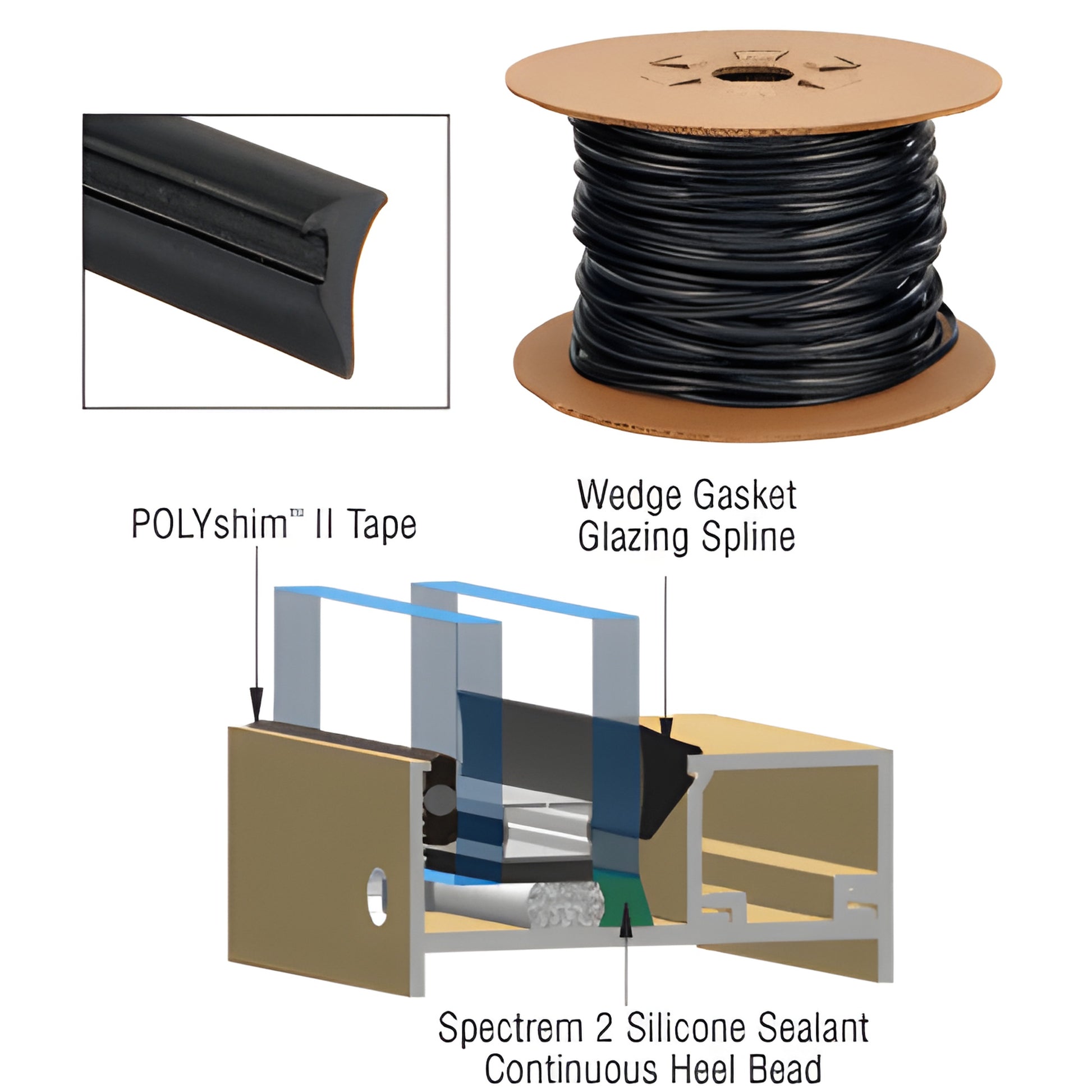

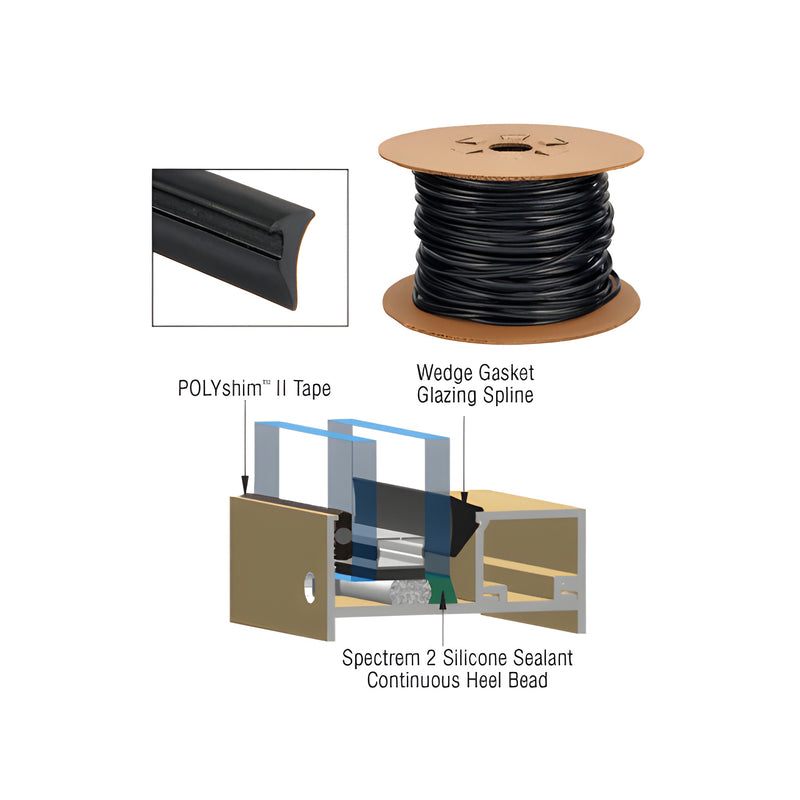

CRL Tremco® Wedge Gasket Glazing Spline

profile is made of extruded 70 durometer dense EPDM. The wedge profile is designed for use in compression glazing systems with Tremco® POLYshim II Glazing Tapes. Glazing Spline profiles require a .090" x .062" (2.3 x 1.6 mm) metal nib for proper engagement.

A mock-up is recommended by Tremco® to verify acceptable mating between both the Glazing Spline and the Metal Nib.
