CRL
CRL Tremco® 0.160 in Wedge Gasket Glazing Spline - Window Seal
CRL Tremco® 0.160 in Wedge Gasket Glazing Spline - Window Seal
Regular price
$878.19 CAD
Regular price
Sale price
$878.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1768012
Shipping Weight: 14.57 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Case
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.57 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Case
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Tremco
Finish/Color
Black
Durometer
70
Face Clearance
0.160 in. (4.1 mm)
Material
EPDM
Metal Requirements
0.062 in. X 0.09 in. Metal Nib (1.5 mm X 2 mm Metal Nib)
Roll Length
500 ft. (152.4 m)
Overview

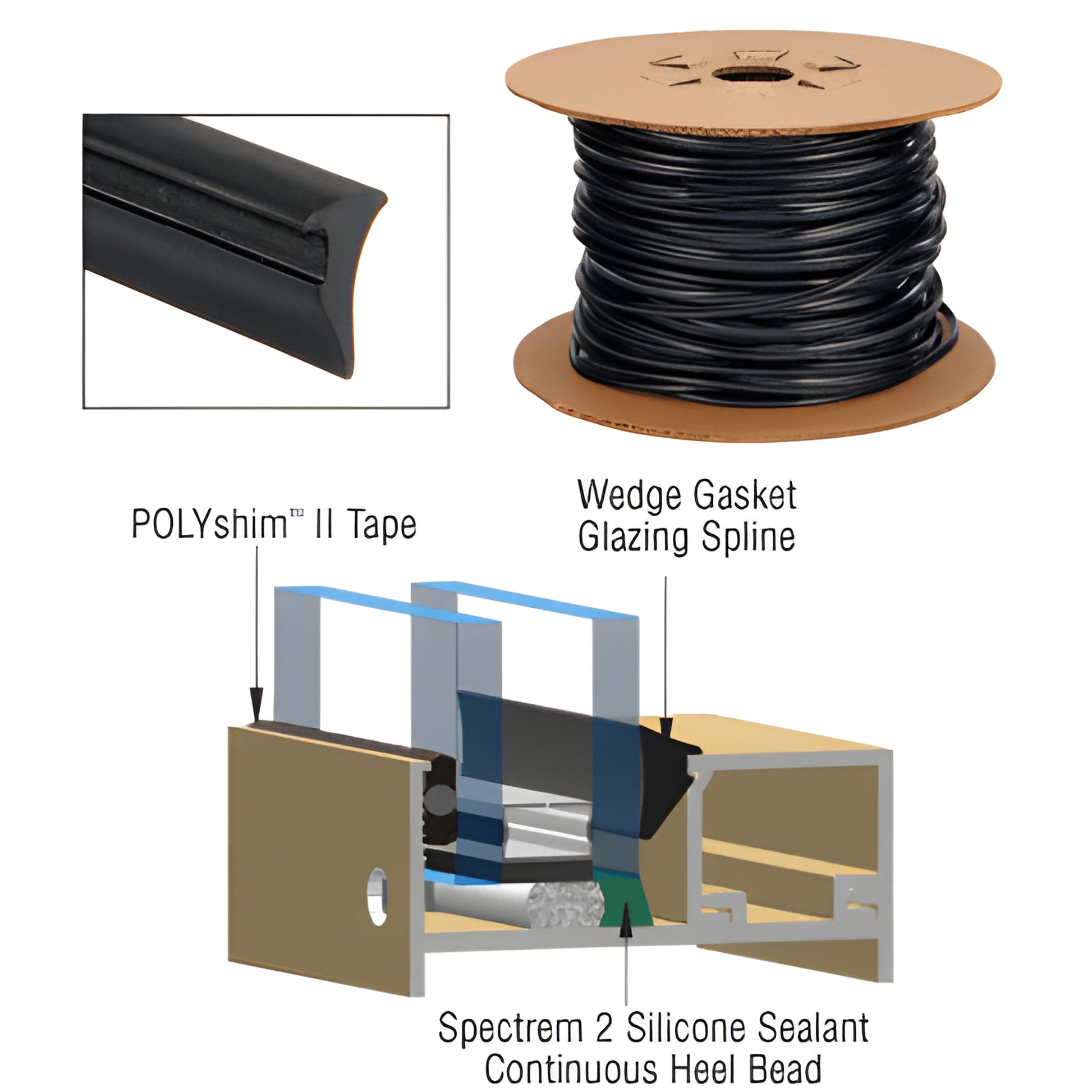

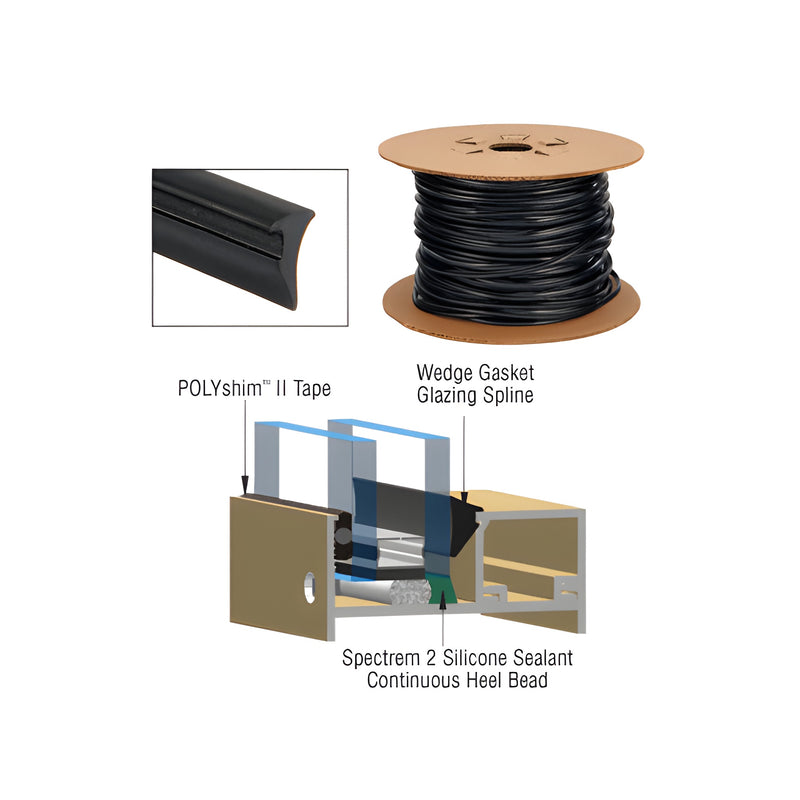

- Used in compression glazing systems with Tremco® POLYshim II glazing tape
- 70 durometer extruded EPDM gasket
This CRL Tremco® Wedge Gasket Glazing Spline (SKU: 1768012) is an extruded, dense 70 durometer EPDM wedge profile engineered for compression glazing applications compatible with Tremco® POLYshim II glazing tape. The wedge design provides secure sealing and requires a .090" x .062" (2.3 x 1.6 mm) metal nib for proper engagement. Ideal long-term sealing performance for storefronts, curtain walls, and commercial glazing systems.
Product Warning:
Special Requirements: Tremco® recommends a mock-up to verify acceptable mating between the glazing spline and the metal nib before installation.
