CRL Tremco® 0.200" Wedge Gasket Glazing Spline - Replacement Seal
CRL Tremco® 0.200" Wedge Gasket Glazing Spline - Replacement Seal
Regular price
$1,007.38 CAD
Regular price
Sale price
$1,007.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1768013
Shipping Weight: 17.095 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Case
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.095 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Case
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Tremco
Finish/Color
Black
Durometer
70
Face Clearance
0.200 in. (5.1 mm)
Material
EPDM
Metal Requirements
0.062 in. X 0.09 in. Metal Nib (1.5 mm X 2 mm Metal Nib)
Roll Length
500 ft. (152.4 m)
Overview
- Designed for compression glazing systems with Tremco® POLYshim II glazing tape
- 70 durometer extruded EPDM — dense, weather-resistant sealing material

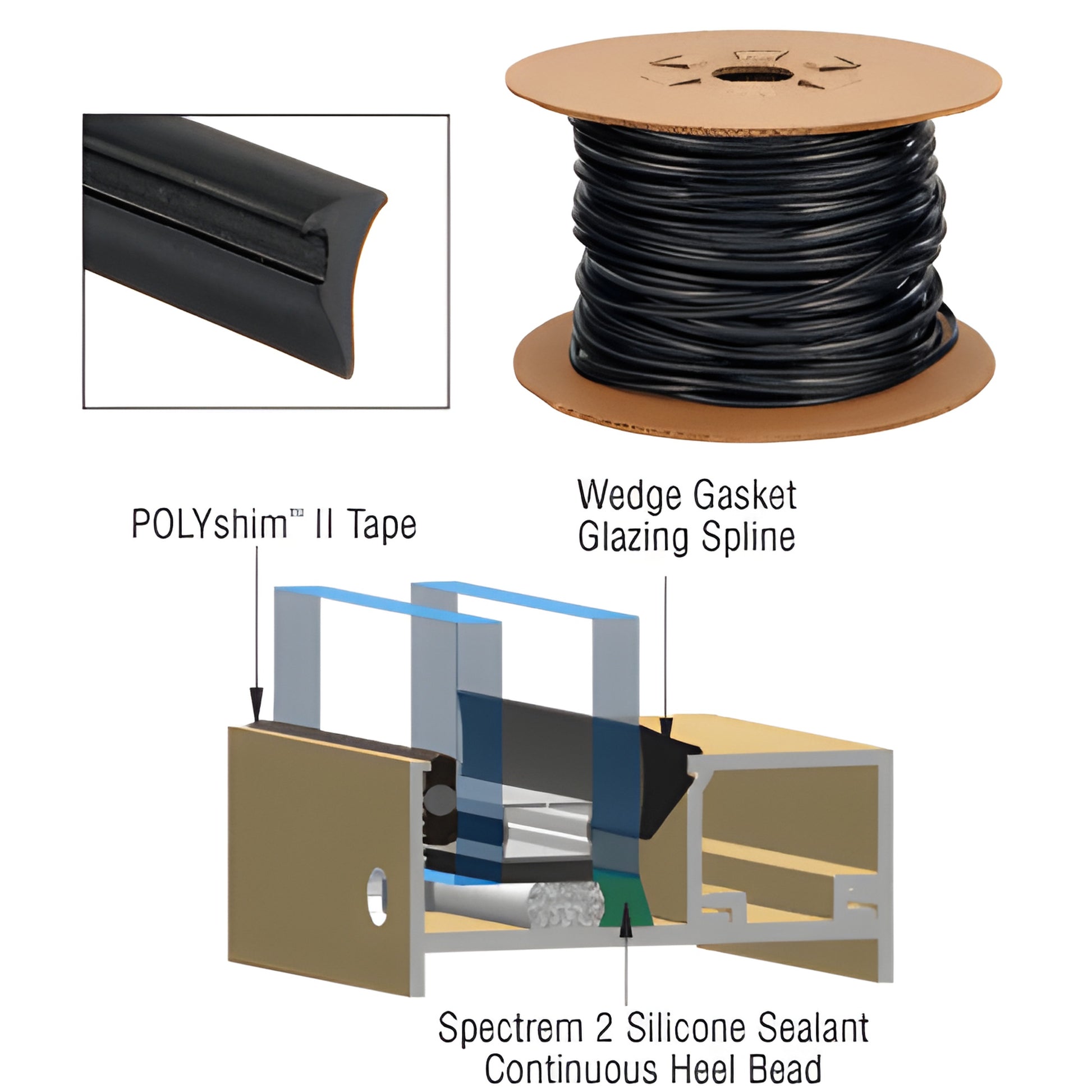

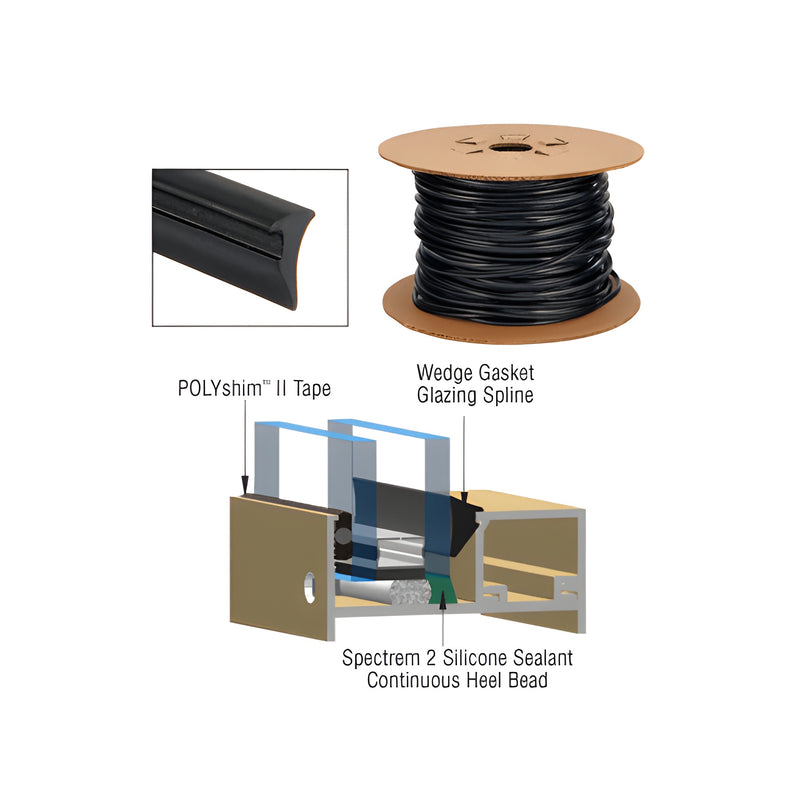

This CRL Tremco® Wedge Gasket glazing spline (SKU: 1768013) is an extruded 70 durometer EPDM wedge profile engineered for compression glazing systems using Tremco® POLYshim II glazing tape. The wedge-shaped gasket provides reliable sealing, weather resistance, and long-term compression retention. Glazing spline profiles require a 0.090" x 0.062" (2.3 x 1.6 mm) metal nib for correct engagement.
Product Warning:
Special Requirements: Tremco® recommends a mock-up to verify proper mating between the glazing spline and the metal nib before installation.
Need assistance selecting the correct glazing spline or confirming nib dimensions? Contact CRL Customer Service to get help or place an order.
