Product Details
- Non-Handed
- Stainless Steel
- Standard and Heavy-Duty Models Available
- Sizes from 8" to 20" (203 to 508 mm)

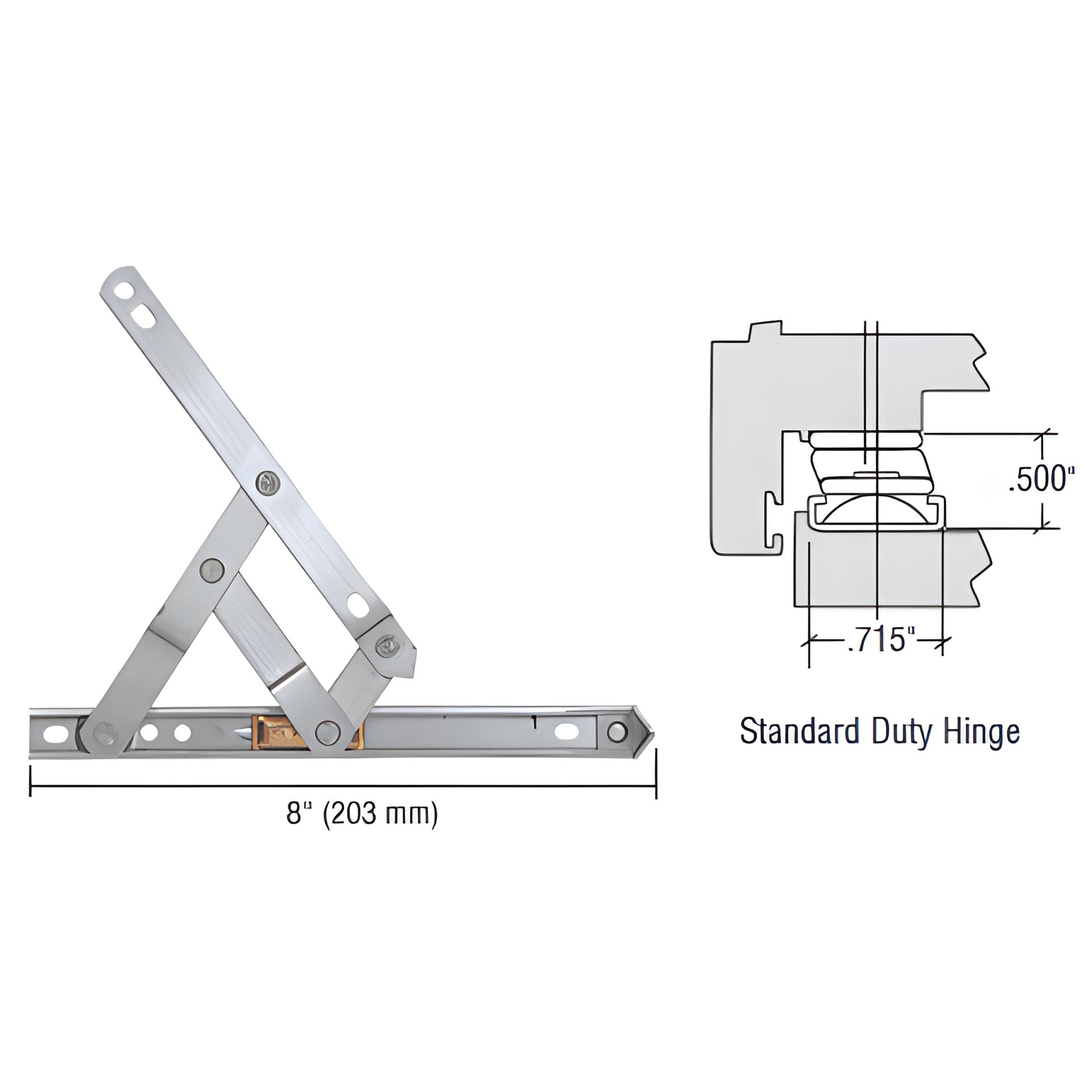

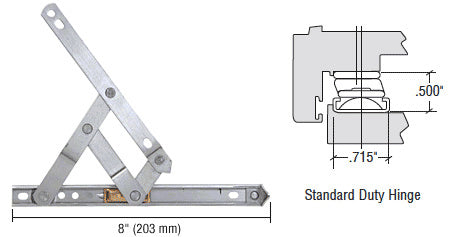

Truth 4-Bar Hinges are made of stainless steel. These non-handed hinges are designed for use with casement and project-out windows. Hinges have a built in stop, which prevents the sash from opening greater than 55 degrees. Hinges are designed for casement windows that have a lip on the outside edge of the sash. The 4-Bar Hinge mechanism allows the sash to project out from the frame before it pivots. Sold one hinge per package.
