CRL Type EF Bottom Pivot for End-Load Threshold Mount Applications

Product Details

• Designed for Use with Aluminum or Properly Prepared Wood and Hollow Metal Doors
• For Threshold Mount Installations
• Use with Doors Having 1-9/16" Deep Bottom Rail
• Designed for Doors Weighing Up to 175 Lbs.

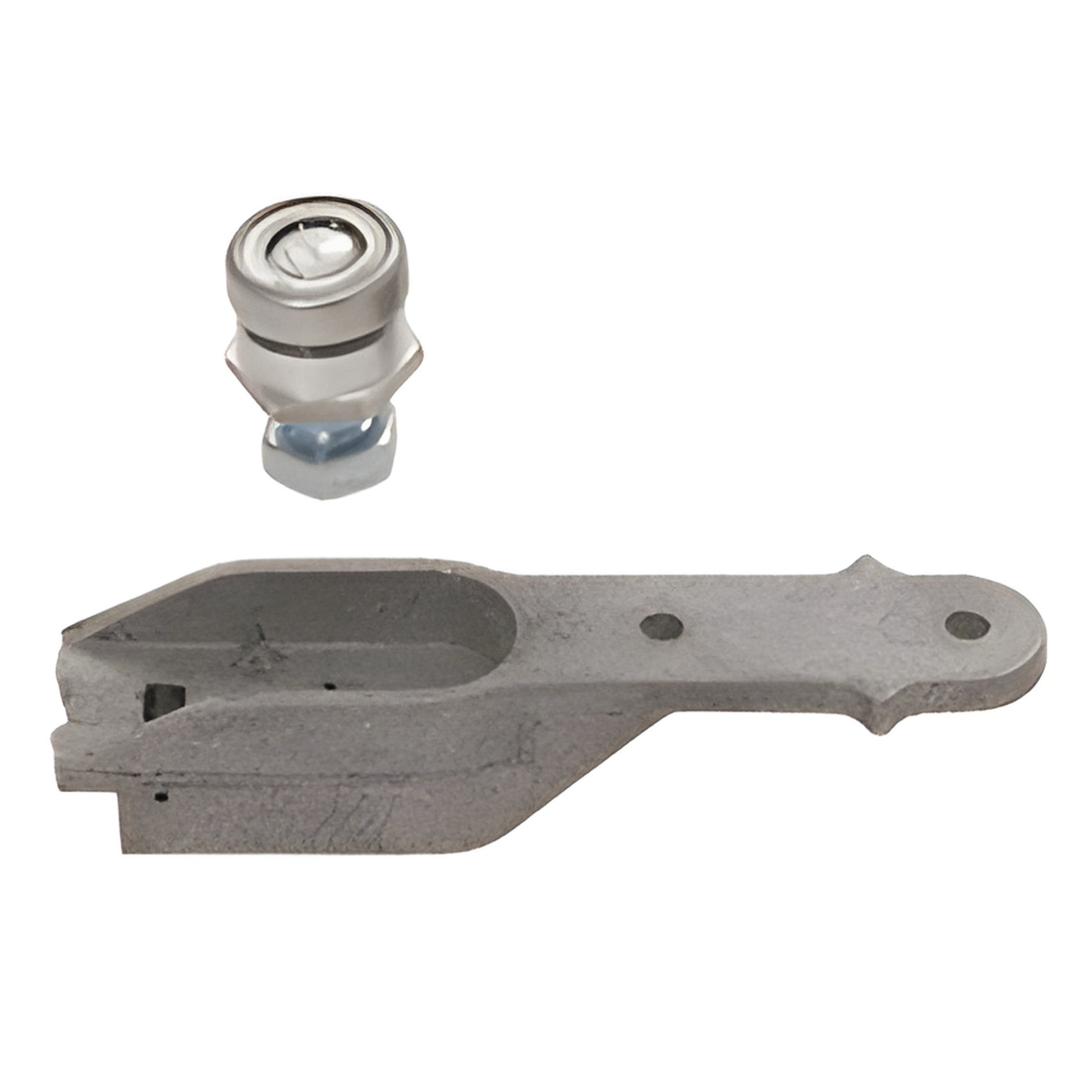

The 201570 EF pivot is designed for use with doors having a 1-9/16" deep bottom rail. It comes standard in the EF End-Load package. The floor portion includes the ball-bearing pivot which screws onto hex nut through the threshold and the deep shoe which mounts to the bottom of the door.
