Product Details
- Accommodates 1/4" (6 mm) Tempered Glass (Not Included)
- Custom Fabricated to Accept Various Hardware Applications
- 9-1/2" (241 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
- Custom Fabricated to Accept Optional Hardware Applications
- Push Bars
- Hookbolt Lock (Single Doors)
- Three-Point Lock (Paired Doors)
- Lock Indicator
- Cylinders
- Cylinder Guards
- Glazing Gaskets AVAILABLE OPTIONS:
- Panic Devices
- Continuous Geared Hinges
- Butt Hinges
- Vanguard Security Astragal
When you need a quality door in a hurry, our Stocking Program is the solution. U.S. Aluminum now offers a line of stock size narrow stile doors for exterior and interior applications. Both clear and bronze anodized finishes are available as single doors or in pairs in two versions: Center pivot and offset pivot. Optional glass stops are available for 1" (25 mm) infills.

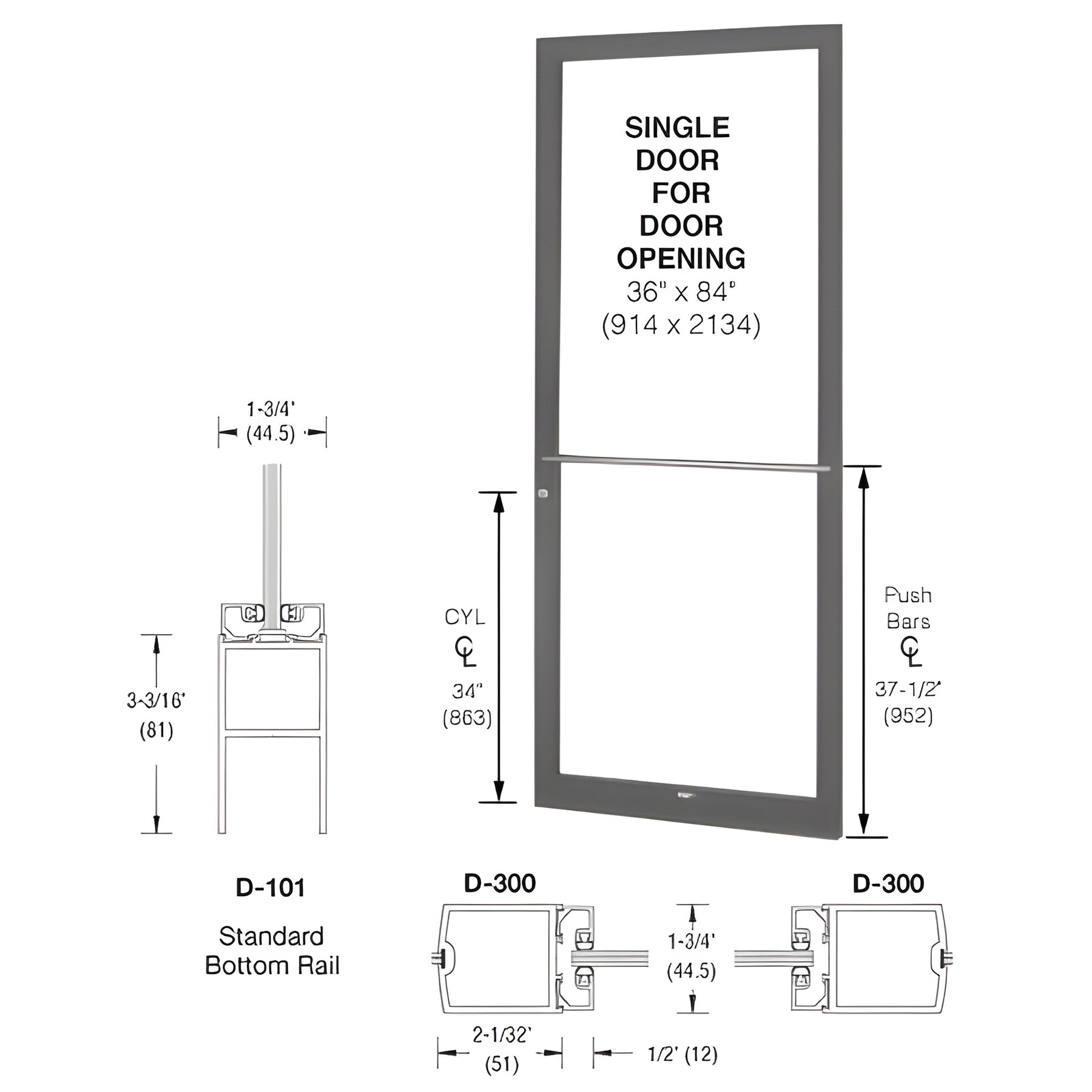

These center pivot doors include standard 2" (51 mm) stiles, 2-1/8" (54 mm) top rails, and your choice of standard 3-3/16" (81 mm) bottom rails or 9-1/2" (241 mm) ADA access bottom rails. Other standard features include a push bar, lock, lock indicator, cylinder and cylinder guards, glass stops, and glazing gaskets. You supply the 1/4" (6 mm) clear tempered glass. Doors are packed for immediate shipment or pick-up from all U.S. Aluminum and CRL Service Centers.
STANDARD FEATURES:Push Bars Hookbolt Lock (Single Doors) Three-Point Lock (Paired Doors) Lock Indicator Cylinders Cylinder Guards Glazing Gaskets
AVAILABLE OPTIONS:Panic Devices Continuous Geared Hinges Butt Hinges Vanguard Security Astragal
