CRL-U.S. 250 Black Anodized Bronze Narrow Geared Hinge for Entry Doors

• Includes Standard Push/Pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders — ideal for commercial glass storefronts (SKU: DC21922)
• Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
• 9-1/2" (241 mm) bottom rail option to meet A.D.A. and Title 24 applications for accessible entrances
• Custom-fabricated to accept optional hardware applications and a wide range of commercial door fittings

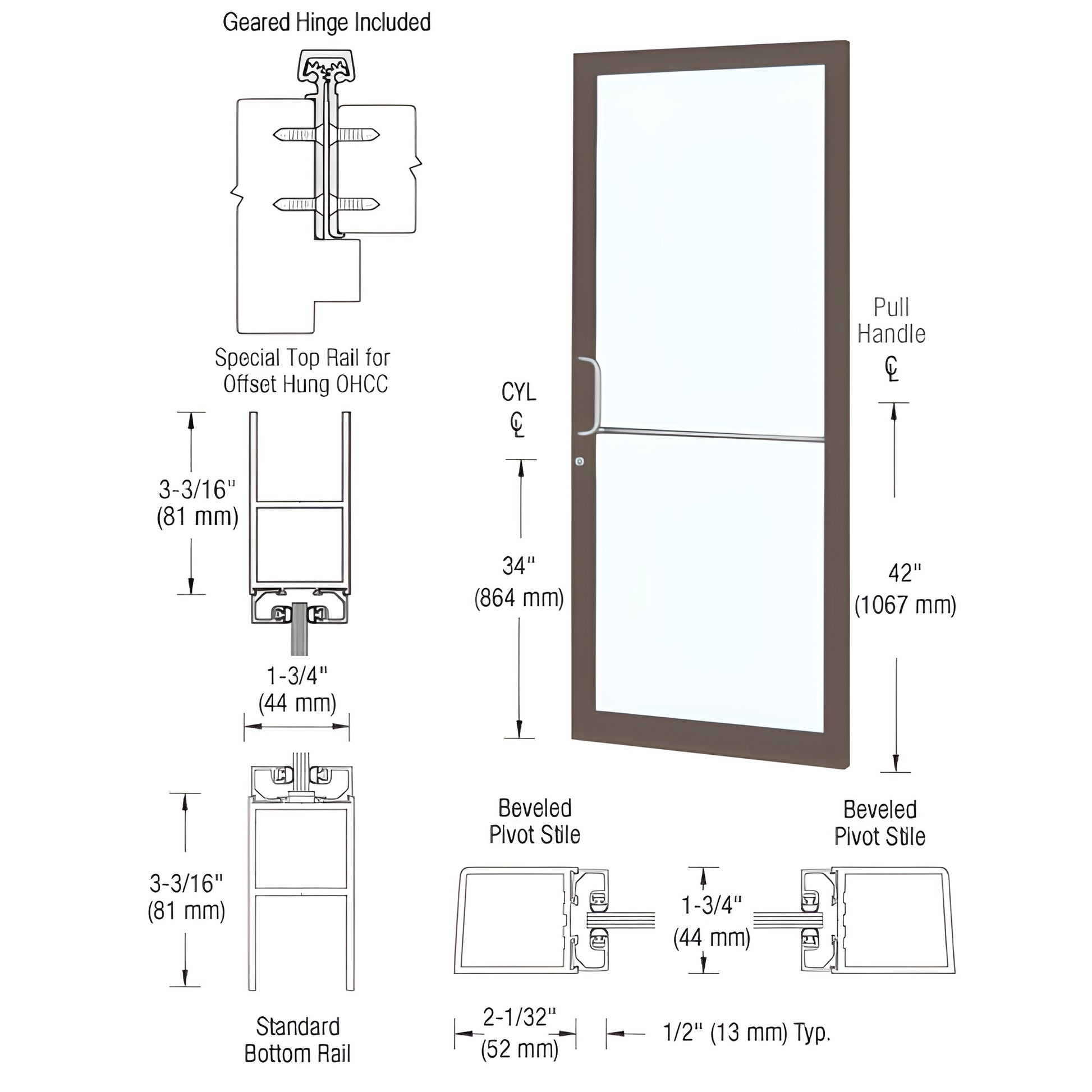

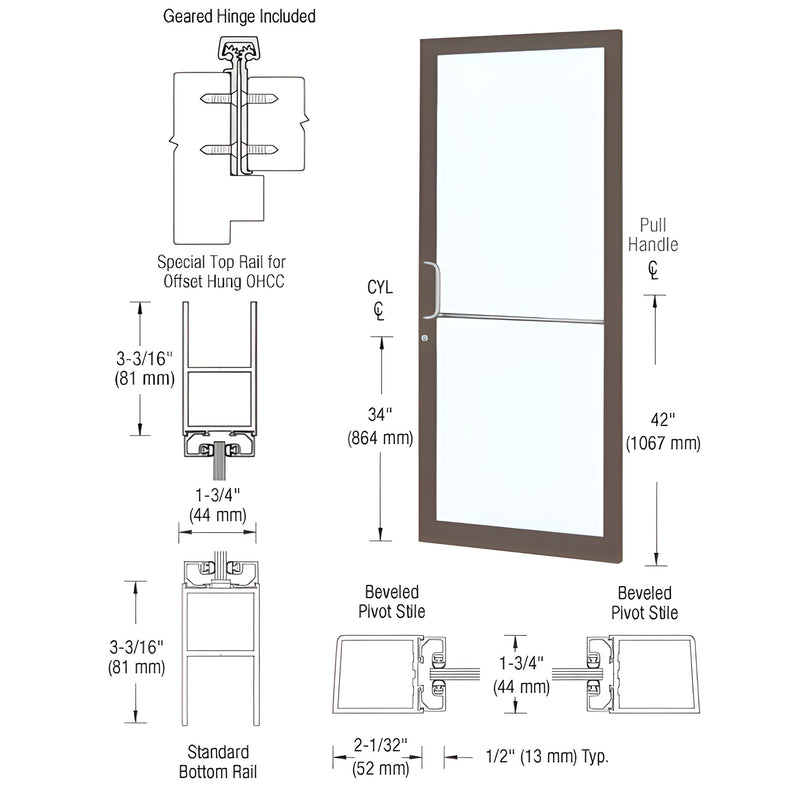

This CRL Custom Narrow Stile Entrance Door (SKU: DC21922) features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Standard construction includes stiles configured for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (provided by others). Built for custom fabrication to support diverse optional hardware for commercial storefront and office entrances.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to avoid transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order SKU DC21922 or contact our team for custom fabrication and pricing.
