CRL-U.S. 250 Narrow Stile Offset Hung Door 3'x7' Geared Hinge Std Lock
Item# DE21822R036
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
- 9-1/2" (241 mm) Bottom Rail is Installed to Comply With A.D.A.

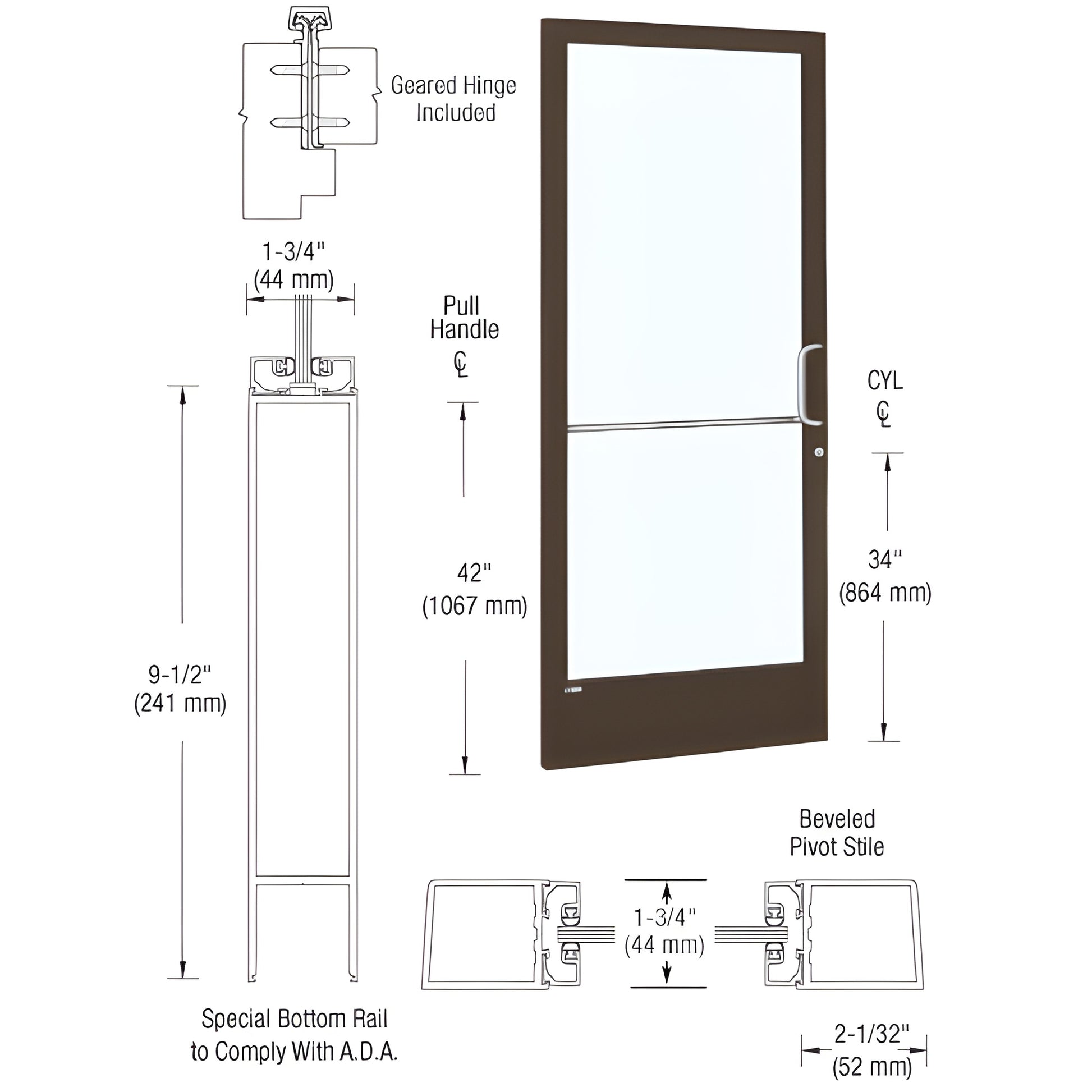

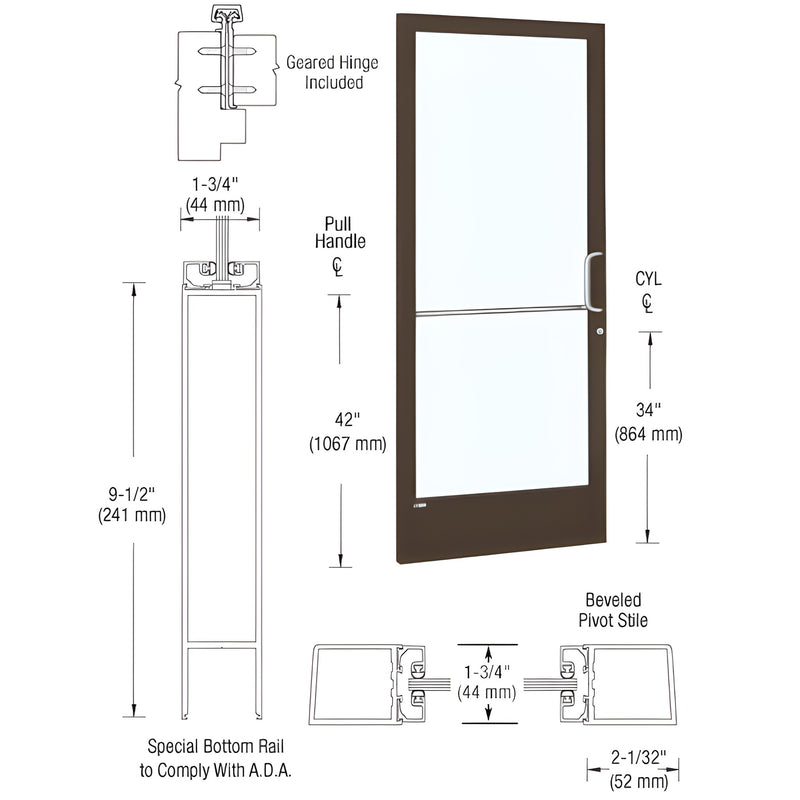

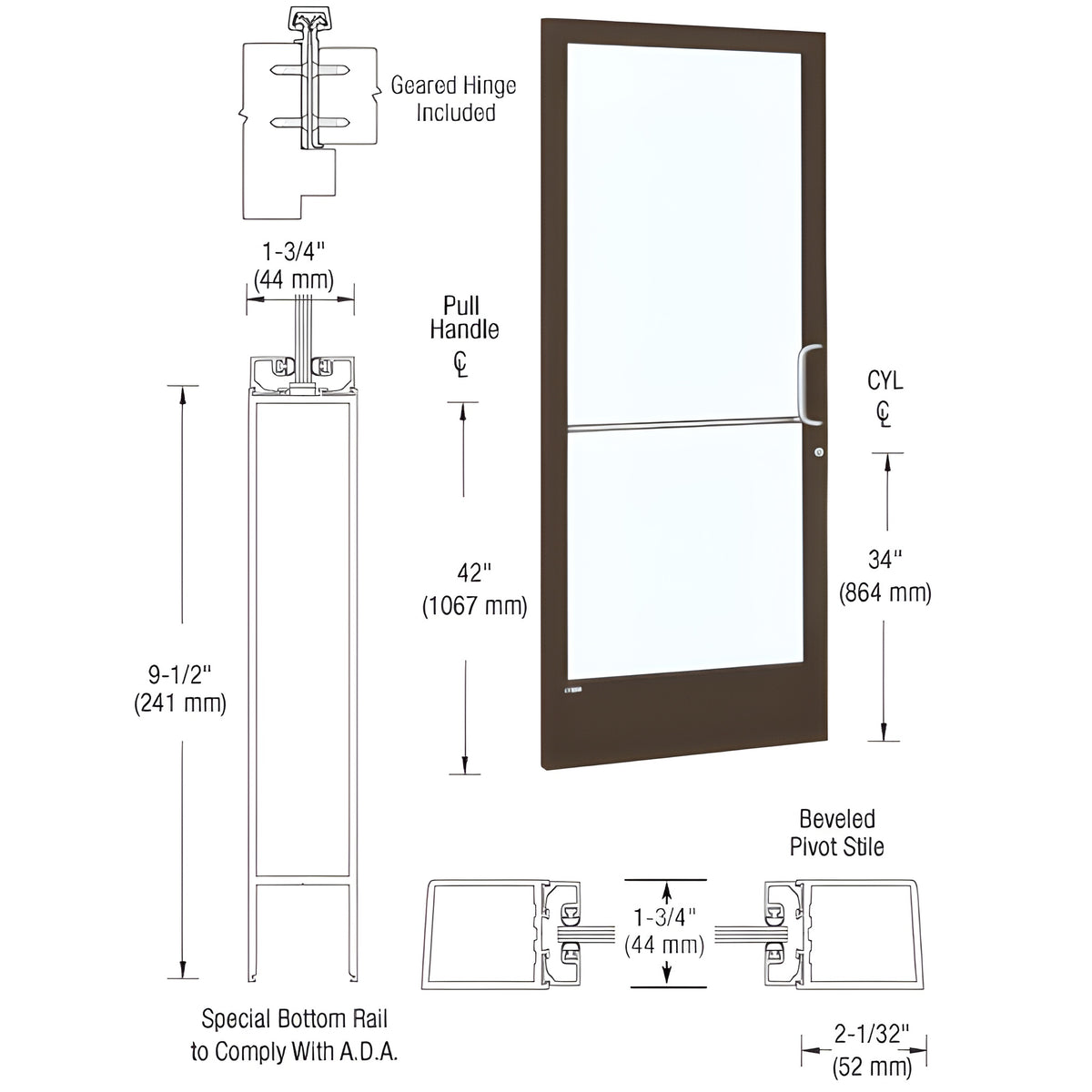

This Standard Narrow Stile Entrance Door is a commercial-grade aluminum entrance solution featuring 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and an ADA-compliant 9-1/2" (241 mm) bottom rail. Designed for narrow stile storefronts, it includes stiles configured for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication and compatible with a wide range of optional hardware applications.
1" (25 mm) glass stops are the only option available on standard doors.
Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.
SKU: DE21822R036
Order now or contact CRL for quotes and customization options.
BIM Objects - rvt
