CRL-U.S. 250 Narrow Stile Offset Pivot Door for Concealed Closer
CRL-U.S. 250 Narrow Stile Offset Pivot Door for Concealed Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE21122
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and two keyed-alike cylinders for simplified master key compatibility
- 9-1/2" (241 mm) ADA-compliant bottom rail for accessible entryways
- Custom fabricated to accept optional hardware applications — ready for offset pivot, electrified locks, or specialty commercial hardware

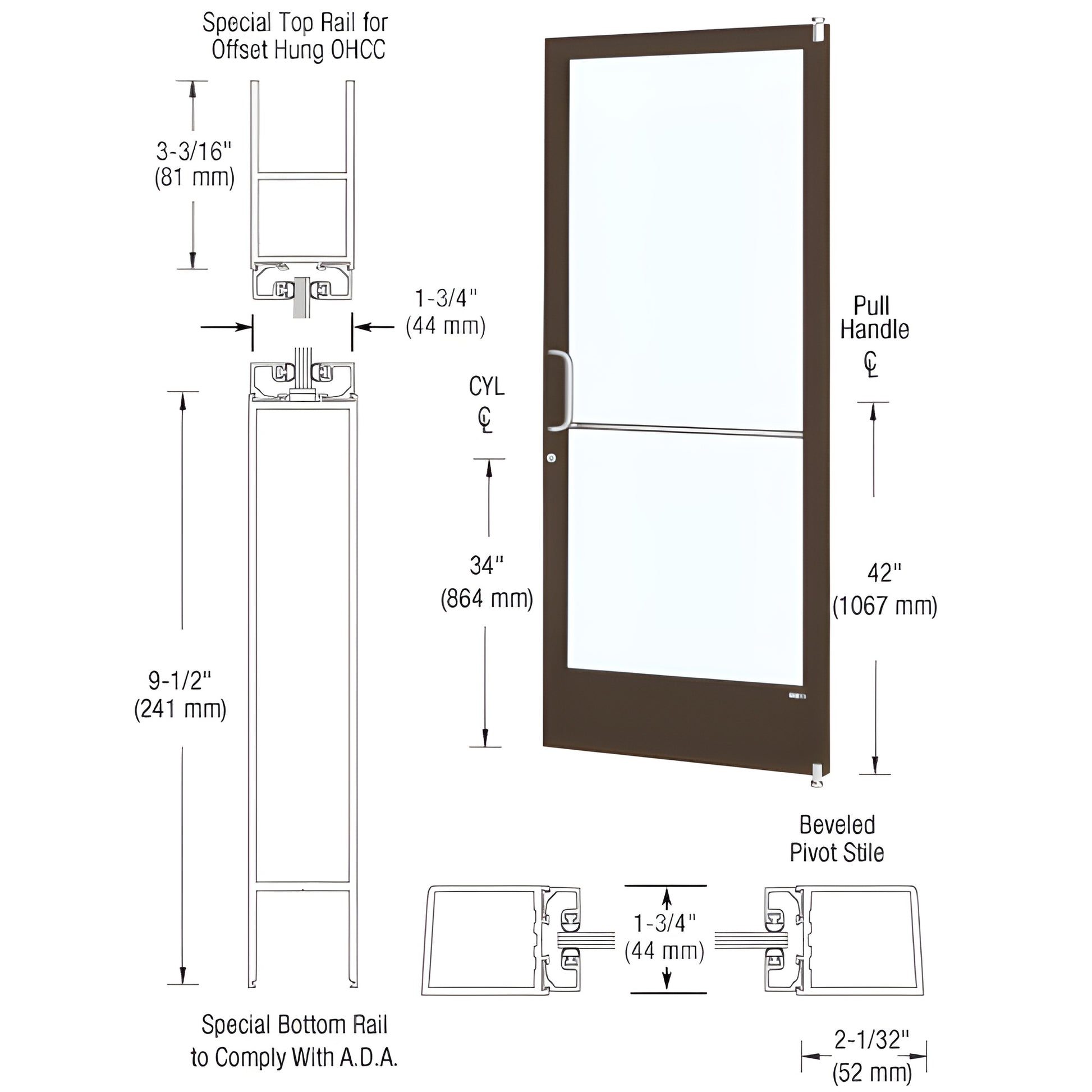

This Custom Narrow Stile Entrance Door features 2" (51 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard construction includes stiles sized for Offset Pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is engineered for custom narrow stile entrance door installations and commercial retrofit projects, enabling a wide range of optional hardware configurations.
1" (25 mm) glass stops are the only option available on standard doors.
SKU: DE21122 — Contact us to request a quote or confirm hardware compatibility.
Specifications
BIM Objects - rvt
