CRL-U.S. 250 Offset Pivot Door, Aluminum Bronze, Surface-Mount Closer
CRL-U.S. 250 Offset Pivot Door, Aluminum Bronze, Surface-Mount Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22222
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

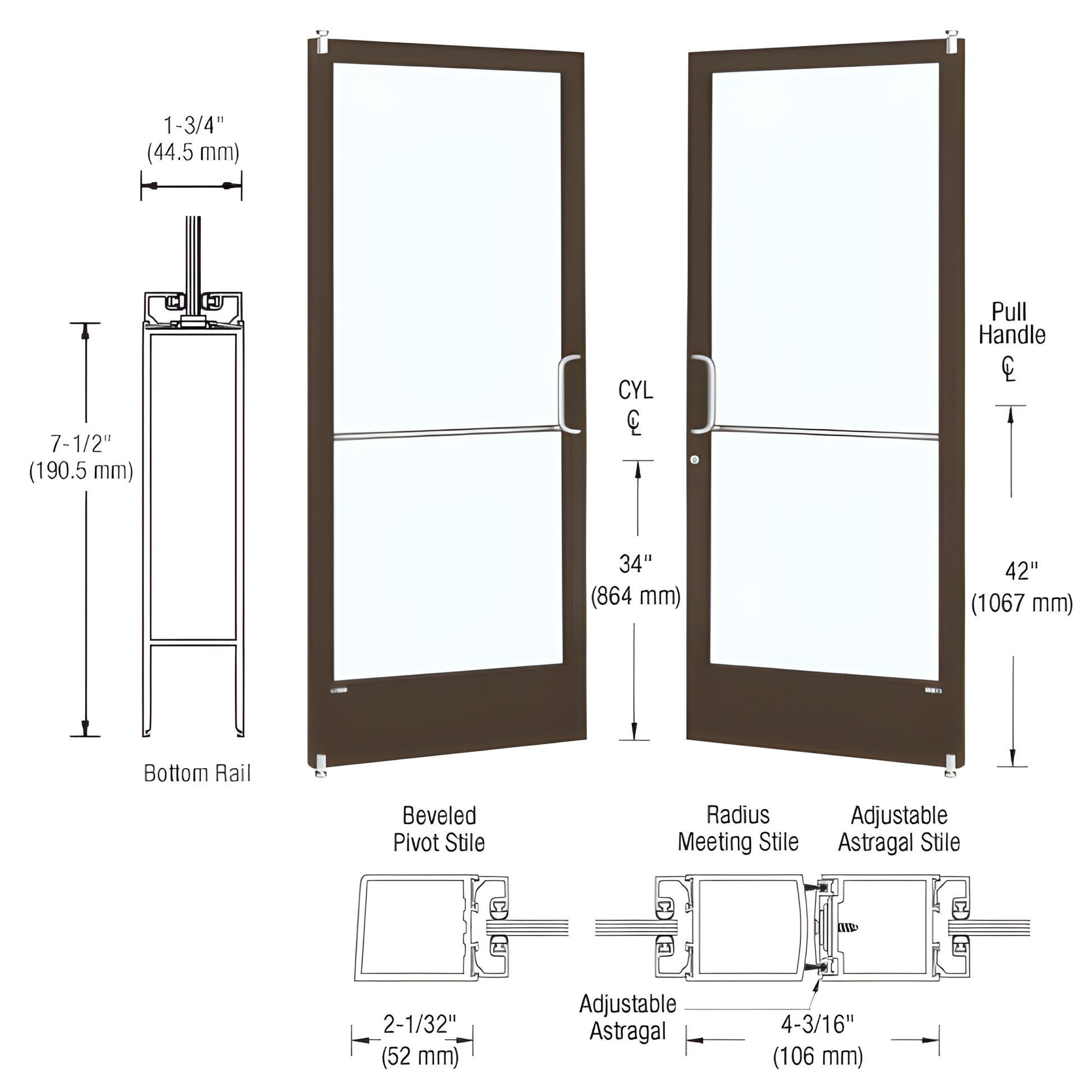

- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware
This Custom Narrow Stile Entrance Door (SKU: HE22222) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial storefronts and high-traffic entrances, it ships ready for Offset Pivot hardware and has glass stops for 1/4" tempered glass. Fabricated to support a wide range of optional hardware configurations, the door is a durable, narrow-stile solution when a slim sightline and robust performance are required.
Hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer after delivery.
Order this custom narrow stile entrance door (HE22222) today to get a slim-profile commercial door ready for your preferred hardware—contact CRL or add to cart now.
Specifications
BIM Objects - rvt
