CRL-U.S. 250 Offset Pivot Door - Narrow Stile, Surface Closer Ready
CRL-U.S. 250 Offset Pivot Door - Narrow Stile, Surface Closer Ready
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE21222
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept optional hardware applications
- Single door 36" x 84" (914 mm x 2.13 m)

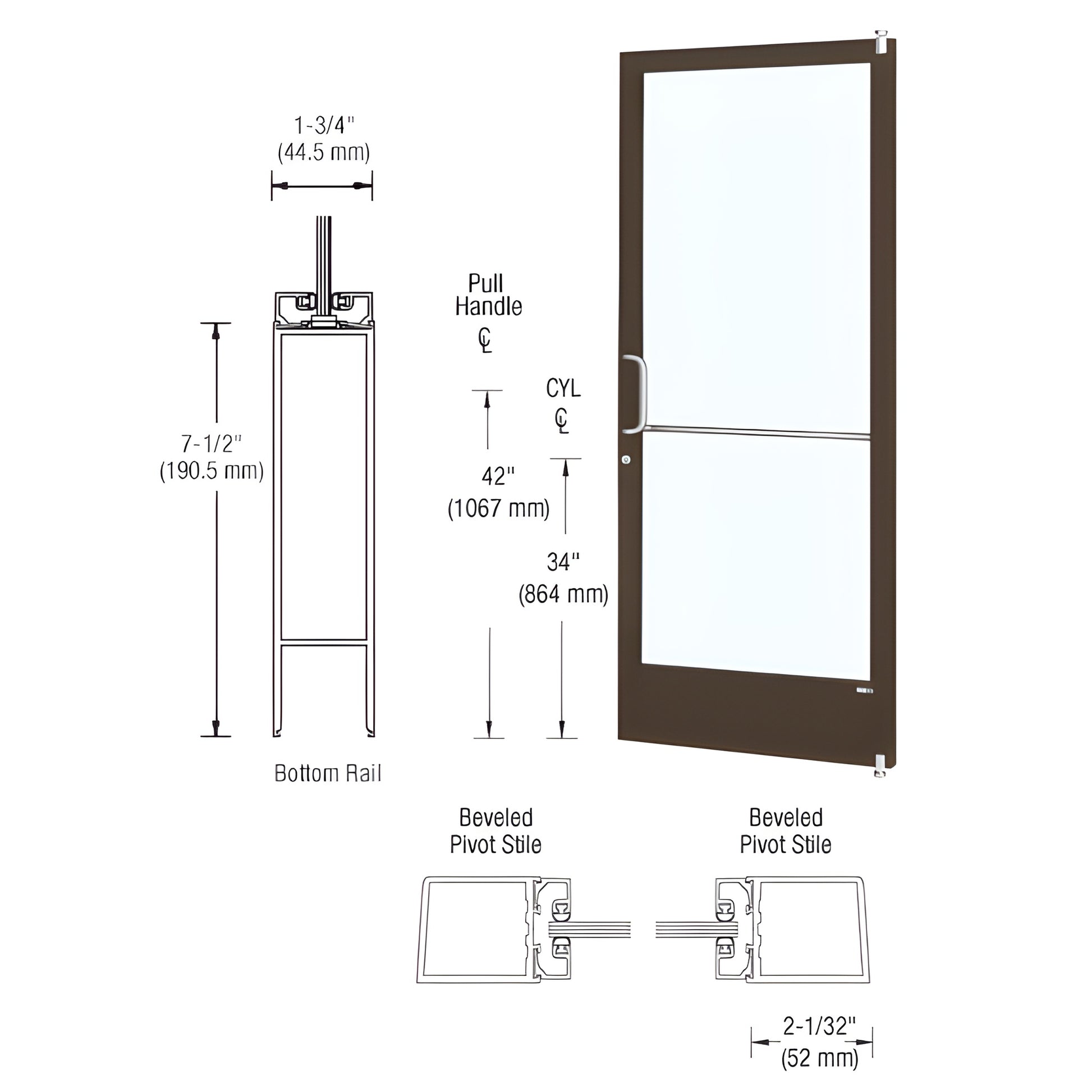

This Custom Narrow Stile Entrance Door (SKU: HE21222) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard construction includes stiles prepared for Offset Pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass (supplied by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware applications, making it ideal for commercial storefronts requiring narrow stile entrance doors and offset-pivot configurations.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Ready to specify this narrow stile entrance door? Contact us or add SKU HE21222 to your quote.
