CRL-U.S. 250 Sr. Narrow Stile Butt Hinge - Black Anodized Panic/Closer

• Custom made to your size specifications (SKU: DZ21522)
• Includes standard panic pull and hanging hardware
• Panic hardware and one cylinder ordered and added separately
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
• 9-1/2" (241 mm) bottom rail available for A.D.A. and Title 24 compliance
• Custom fabricated to accept a wide range of optional hardware applications

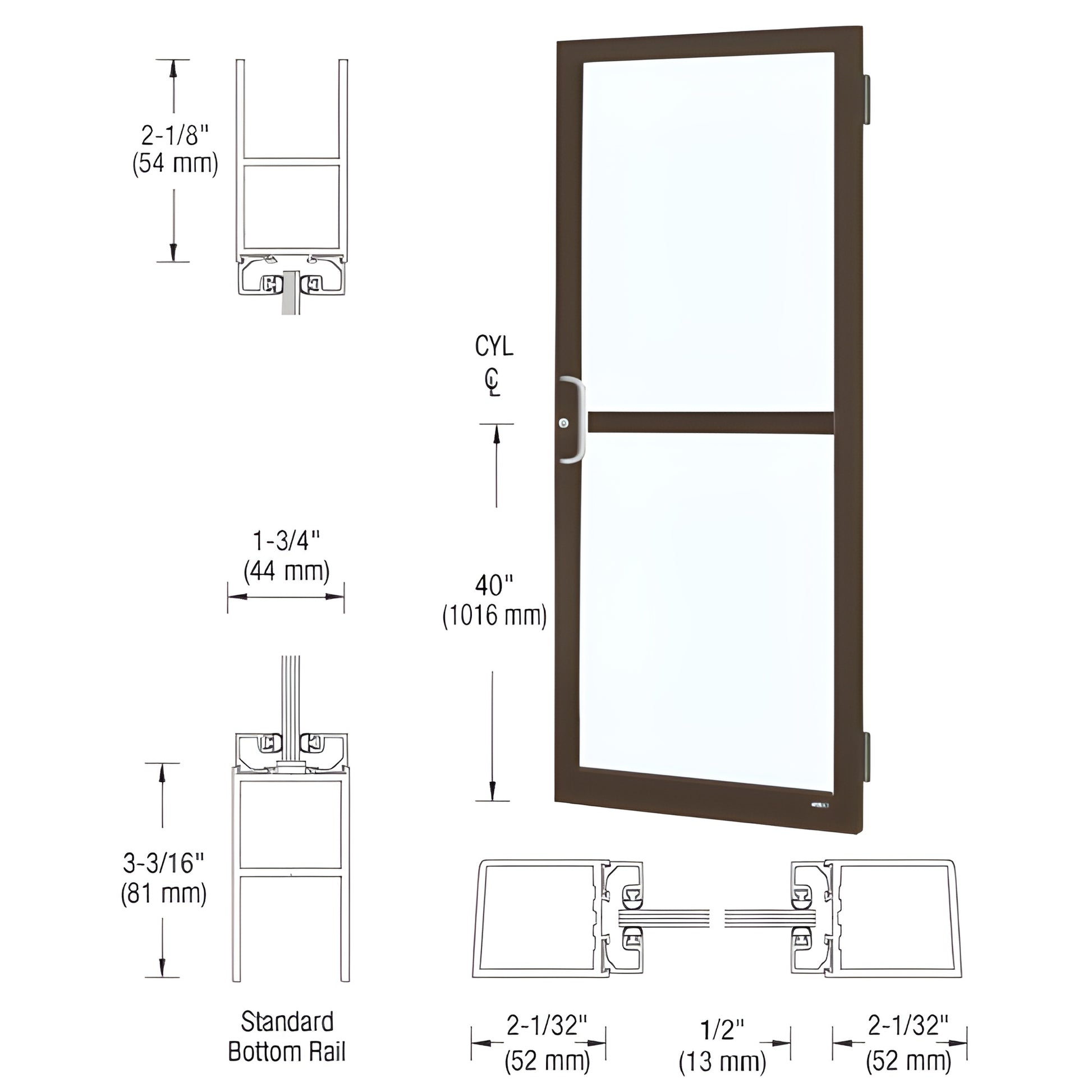

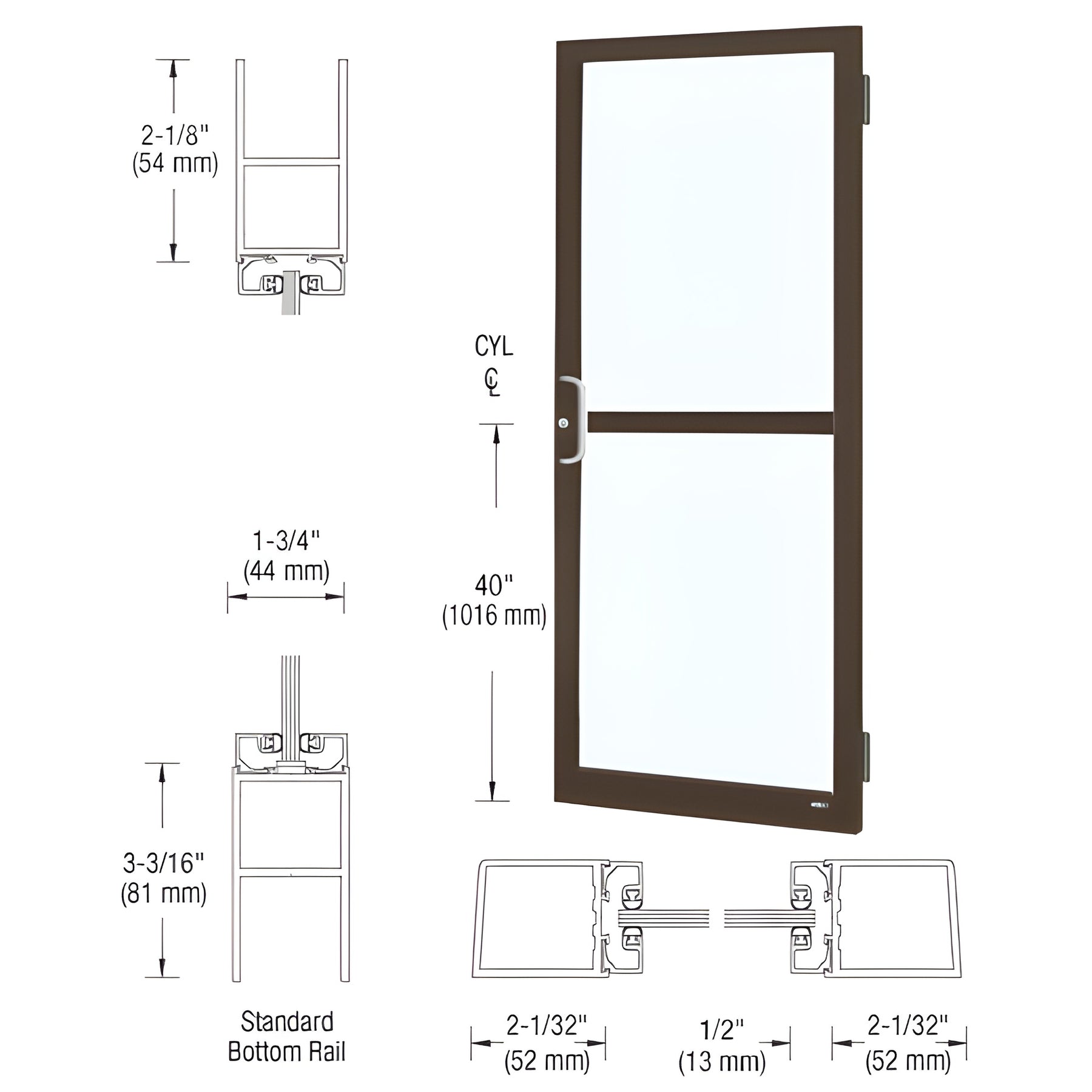

Custom Narrow Stile Entrance Door built with 2" (51 mm) stiles, 2-1/8" (54 mm) top rail, and 3-3/16" (81 mm) bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Door is ready for custom fabrication to accept commercial-grade hardware options.

Handles, pivots and other protruding hardware are boxed separately and must be installed on site to prevent transit damage. Note: doors under 36" (914 mm) wide may not meet A.D.A. inspection requirements. Panic hardware and cylinder sold separately.

Order the custom narrow stile entrance door (DZ21522) for a durable, ADA-capable commercial storefront solution—contact us to get a quote or request exact shipping weight.
