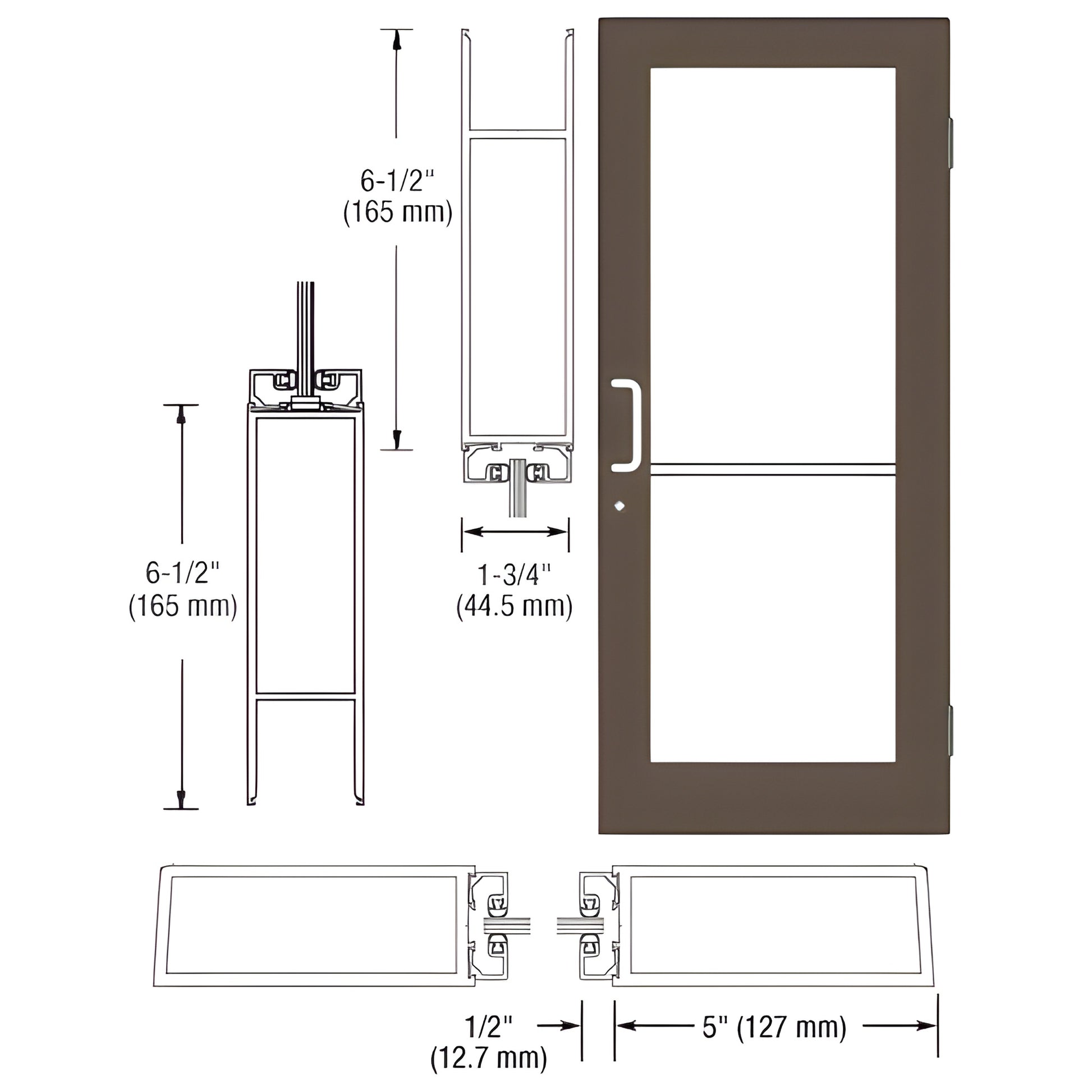

• DC51422 black bronze anodized wide-stile commercial entrance door with 5 in stiles, 6-1/2 in bottom rail and glass panel
1 1

CRL

CRL-U.S. 550 Black Anodized Bronze Butt Hinge for Wide Stile Doors

CRL-U.S. 550 Black Anodized Bronze Butt Hinge for Wide Stile Doors

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DC51422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

  • Custom fabricated to accept optional hardware applications for commercial entrances
  • 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 21 applications
  • Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders

This Custom Wide Stile Entrance Door (SKU: DC51422) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial storefront and entrance applications, it includes stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware, making it ideal for retrofits and new construction projects requiring specialized commercial entrance door hardware.

Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection; select the 9-1/2" bottom rail option for ADA-compliant installations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, and shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


For custom configurations or to order SKU DC51422, contact CRL Customer Service to get specifications and lead times.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
