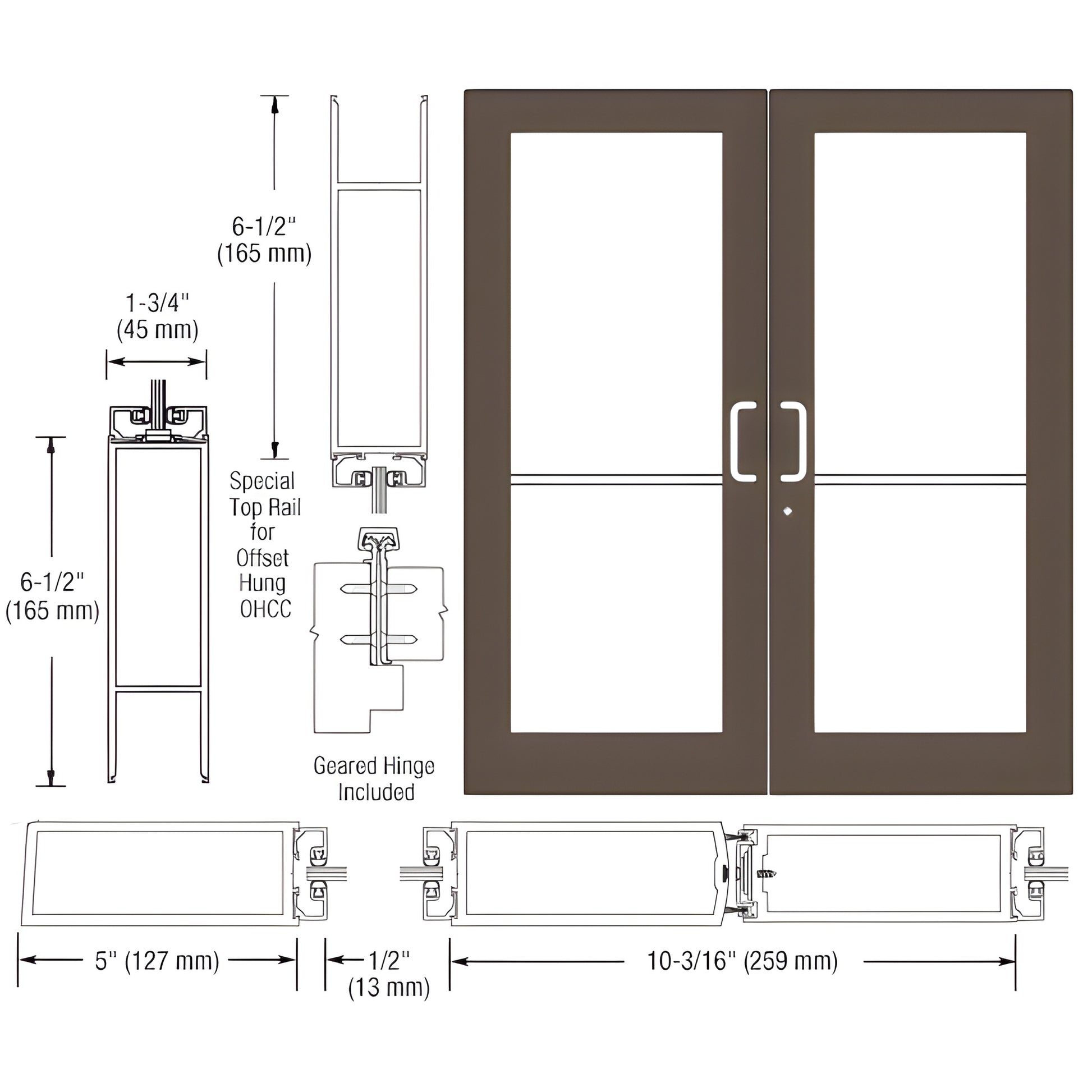

• DC52922 black bronze anodized custom wide-stile double entrance door with glass panels, 5" stiles and 6-1/2" bottom rail.
1 1

CRL

CRL-U.S. 550 Black Anodized Bronze Geared Hinge Wide-Stile Door Pair

CRL-U.S. 550 Black Anodized Bronze Geared Hinge Wide-Stile Door Pair

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DC52922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

  • Custom fabricated to accept optional hardware applications for commercial and residential entrances
  • Includes active and inactive leaf with all standard hardware
  • 6-1/2" (165 mm) bottom rail for reinforced threshold performance

This Custom Wide Stile Entrance Door (SKU: DC52922) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for installers and fabricators, the door includes stiles prepared for Gear Hinge hardware and glass stops that accept 1/4” (6 mm) tempered glass (by others). The frame is ready for custom fabrication to support a wide range of optional hardware applications and commercial entrance configurations.

Included protruding hardware (handles, pivots, etc.) ships separately in boxed packaging to prevent transit damage and must be installed by the customer.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


For questions about custom hardware compatibility or lead times, contact CRL Customer Service or request a quote today.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
