CRL
#8 x 1-1/2" Phillips Flat Head Sheet Metal Scre...
$0.16
CRL
CRL-U.S. 550 Wide-Stile Black Anodized Aluminum Bronze 3x7 Offset
Item# DE51222R036
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized Class 1

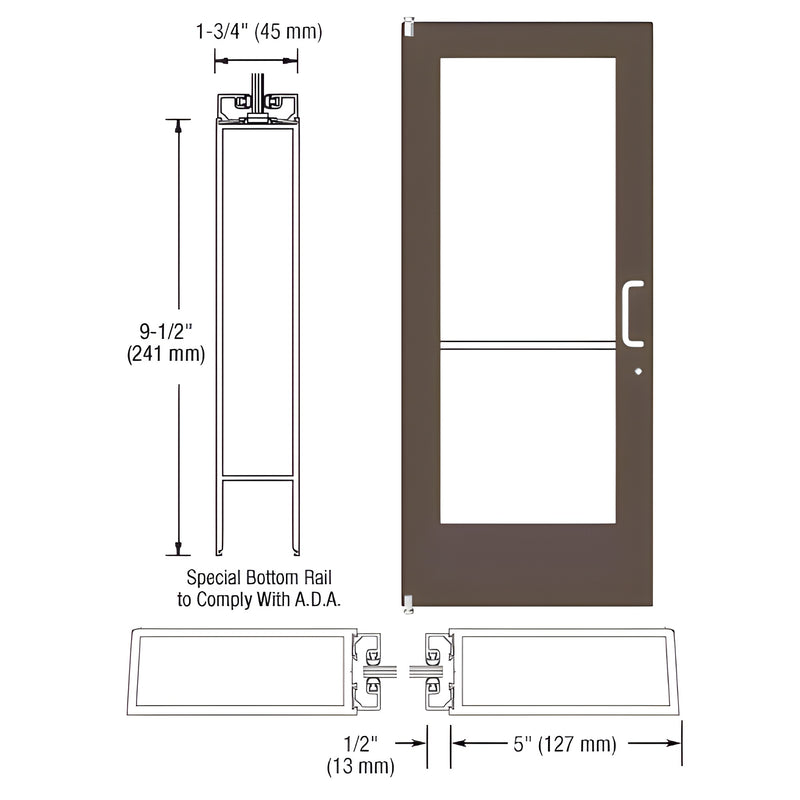

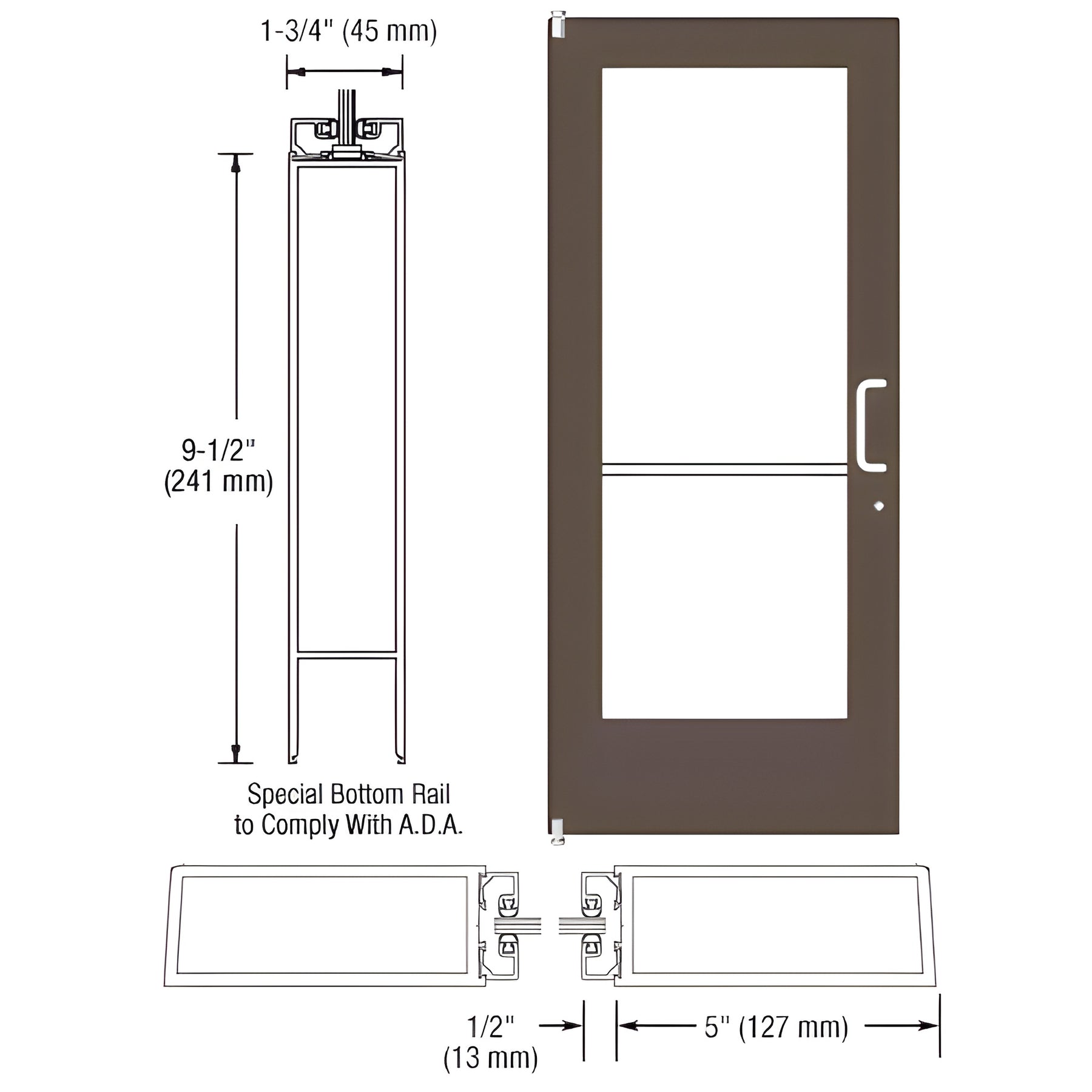

- 9-1/2" (241 mm) Bottom Rail — ADA compliant bottom rail for accessible entries
- Includes standard push/pull, hanging hardware, MS Hookbolt Lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
Standard Wide Stile Entrance Door with 5" (127 mm) stiles, 5-1/2" (140 mm) top rail, and 9-1/2" (241 mm) ADA bottom rail. Built for commercial storefronts and institutional entrances, this door features stiles configured for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass supplied by others. Ready for custom fabrication and a wide range of optional hardware applications.
Note: 1" (25 mm) glass stops are the only stop option available on standard doors. SKU: DE51222R036.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.
For pricing or to configure hardware and glass options, contact CRL Customer Service or request a quote today.
BIM Objects - rvt
